Akiles DuoMac C41ECI 4:1 Coil Binding Machine with Electric Inserter
$829.00NewConditionInStock

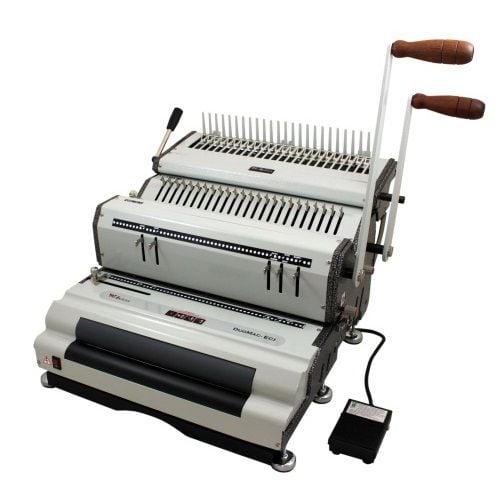

Akiles DuoMac C41ECI 4:1 Coil Binding Machine with Electric Inserter Image 1

Akiles DuoMac C41ECI 4:1 Coil Binding Machine with Electric Inserter

Part #: AKDUOMACC41ECI
Brand: Akiles
0 Questions, Ask a Question

Was: $1,269.00

Your Price: $829.00

You Save: 35%

Brand New Price Match Guarantee Ships in 2 - 3 Days Free Shipping

ProductDescription

The Akiles DuoMac C41ECI is the ultimate binding solution for comb binding, punching and finishing. The custom-built equipment combines a manual coil punch, electric coil inserter, manual comb binding punch and manual comb binding opener into one revolutionary binding machine. Punch with disengageable pins, allows the perfect punch on certain paper size and providing a diverse environment for multi-functional workspace. The heavy-duty setup will punch up to 20 sheets of 20 lbs paper at a max length of 14". The depth margin controls, open throat and continuous punching control all in your hand to provide that perfect punch you're always seeking for. The versatile and user-friendly features allows for quick operation when you're creating bound books, reports, catalogs, and more. Don't limit yourself, why settle with just a single type of binding when you custom to do it all? There is no one better than the Akiles DuoMac C41ECI.
Please note that the Akiles DuoMac line of Binding Machines are assembled on a per order basis and normally take two to three days to ship.

Product Details

  • The Akiles DuoMac C41ECI is combination of manual coil punch, electric coil inserter, manual comb binding punch and manual comb binding spreader.
  • Two independent punching die sets, this versatile & easy to use combo binder allows you to punch & bind multiple systems and or different pitches.
  • Depth Margin Control: Provides the correct punch margin depth for each wire/comb size. Maximizes document tear resistance.
  • Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.
  • Master Selector: Determines the correct: Wire Diameter, Closing Position, Depth Margin & Wire Pitch
  • Diameter Scale: Measures document's thickness in order to select best wire/comb size option
  • Electric inserter providing a quick and easy comb finish
  • Spacious Waste Drawer for all
  • Side Margin Control: Provides and evenly Centered punch for all document sizes.
  • Die Disengagement Pins: All dies can be independently disengaged, allows punching of any size document while preventing partial side-end perforation
  • Heavy-Duty design by CAE (Computer-Aided Engineering) technology
  • Comb Spreader with any Comb combination.
  • Comb combination is compatible with Spiral-O wire binding spines
  • 100% disengagement dies - wire & comb (5 for Coil)
  • FREE coil crimpers with any Coil combination.

ItemSpecifications

  • Single Punch Capacity: Up to 20 sheets (20 lbs paper)
  • Single Punch Length: 14"
  • Weight: 69 lbs
  • Warranty: 1 Year Manufacturer Warranty

ProductReviews

There are No Reviews on this Product Yet

Be the first to review this product

  • 1 star
    1 star
    1 star
    1 star
    1 star

DemonstrationVideo

Coil Binding Overview - Akiles DuoMac C41ECI+

Transcript: This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the front half of the machine, making a coil bound book.

To start, adjust the edge guide appropriately.

Always start with a test page. From there you can see any incomplete holes. So, find the correct disengageable pins and pull them out. Do another test, then fold the page in half. If the holes line up, you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is s...
Read More
This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the front half of the machine, making a coil bound book.

To start, adjust the edge guide appropriately.

Always start with a test page. From there you can see any incomplete holes. So, find the correct disengageable pins and pull them out. Do another test, then fold the page in half. If the holes line up, you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is safe. You can also punch up to 20 sheets at a time, which will take more effort—though still doable. The fewer pages you punch at a time, the easier it is.

Now assemble your pages and put them into the rounded channel on the front.

This way your pages are formed nicely to insert your plastic coil into about 4-5 holes.

From there, with the roller already on, press the foot pedal. This will spin the front roller, to which you place your coil against and it will run it through all the holes. Next take the provided coil cutting crimpers.

Orient the book as seen here and cut off the extra coil on the right. Make sure that the dot on the crimper is facing up. Then flip the book around and do the other end.

Now you have a coil bound project. But there are a few more features to cover!

It has an open side design, which means you punch pages that are significantly longer as well. It comes with a coil and project measuring guide, and you can change the depth of margin. There are four depths as seen here.

From time to time, make sure to also empty the waste tray and slide it back in.

Comb Binding Overview - Akiles DuoMac C41ECI+

Transcript: This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the back half of the machine, making a comb binding bound book.

To start, adjust the edge guide appropriately.

You’ll see that some common page sizes are marked on the machine—pull any of the appropriate pins out. Always start with a test page. Then fold the page in half. If all the holes line up then you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is ...
Read More
This is the Akiles DuoMac C41ECI+ Plastic Comb and 4:1 Coil Binding Machine!

In this overview, we are looking at the back half of the machine, making a comb binding bound book.

To start, adjust the edge guide appropriately.

You’ll see that some common page sizes are marked on the machine—pull any of the appropriate pins out. Always start with a test page. Then fold the page in half. If all the holes line up then you are ready. If not, continue to adjust the edge guide.

When punching, we always start with the front and back cover—they are thicker, so punching two at a time is safe. You can also punch up to 20 sheets at a time, though remember that the fewer pages you punch at a time, the easier it is.

Next place the appropriately sized comb into the teeth of the opener. The hooks will grab the binding and it should open up as seen here.

Now thread your pages in face down, starting with the front cover. The nice thing about this, is you can punch your pages, thread them in, punch the next batch, thread them in and do so until complete.

Close the binding back up and you now have a book bound with comb binding—next I’ll go over some extra features of the machine!

You can remove the opener to operate from the side, or as a two person operation.

It also has an open ended design for longer pages, and you can change the depth of margin. There are four depths as seen here.

From time to time, make sure to also empty the waste tray and slide it back in.
