D&K Expression 62 Plus Wide Format Laminator
14810.00
NewCondition
InStock

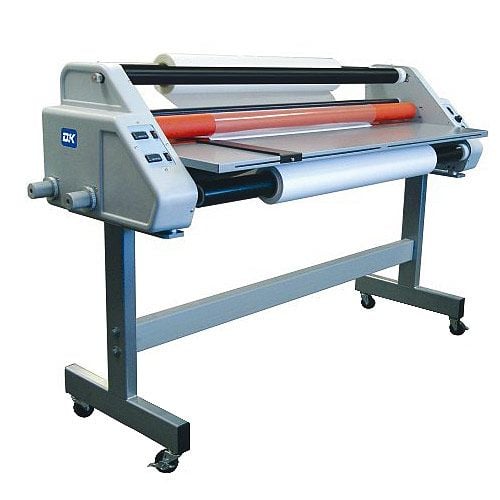

D&K Expression 62 Plus Wide Format Laminator
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
Product Description
D&K Expression 62 Plus Wide Format Laminator is an ideal finishing solution for your wide format graphics. It can easily handle graphics up to 61 inches wide. The Exp 62 plus gives you the versatility of using low melt, pressure sensitive or thermal laminating film with independent upper and lower electronic temperature controls with LED display. The Exp 62 Plus has many features including; roller lift for easy film loading, release liner rewind, "Ready" and "Wait" temperature indication lights and a sturdy feed- back table the adjustable feed guide. The Expression 62 Plus laminator is a perfect partner for all your wide format finishing needs..
Product Details
- Easy to Use
- Mounter, Laminator, Encapsulator (prints up to 61" wide.)
- Fast set-up and easy operation
- Roller lift for easy film loading
- In-line slitter for trimming during lamination (optional)
- Variable roller pressure
- Accepts low-meltm thermal and pressure senistive films
- Accomodates substrates up to 1/2" thick
- Accomodates rolls up to 8" in diameter
- Release liner rewind (optional)
- Operator-Friendly
- "Ready" and "Wait" lights indicate when the laminator has reached preset temperatures
- Independent upper and lower electronic temperature controls with LED display (djustments up to 300° F.)
- Spring-Loaded adjustable pressure on laminating and pull rollers for smooth, even lamination
- Foot switch allows hands-free operation for guided materials during lamiantion (optional)
- Auto-grip shafts for easy loading of film
- Heavy Duty
- Designed for mounting and laminating low-temp, thermal and pressure sensitive films
- Heated rollers for a variety of films
- Heavy-Duty forward/reverse variable speed motor
- Sturdy feed-back table with adjustable feed guide
- Heavy-Duty top grade silicone rubber rollers
- Heavy-Duty top chain and sprocket drive
- Cooling Fans
- Four high-capacity forced air cooling fans
Item Specifications
- Dimensions (H x W x D): 50" x 80" x 28"
- Net Weight: 500 lbs
- Shipping Weight: 620 lbs
- Electrical Requirements: 230V single phase 30 amps
- Working Width: 61"
- Maximum Temperature: 300°F
- Speed: 1-10 fpm
- Maximum Aperture: 1/2"
- Roller Diameter: 4 1/6"
- Stand or Cart: (included)
- Pressure Sensitive Release Liner Rewind: (included)
- Foot Switch: (optional)
- Side Film Slitter Kit: (optional)
- Manufacturer's Warranty: 1 Year on Parts / 6 Months on Labor / 3 Months on Rollers
- Part Number: EXP62+
Demonstration Video
Transcript:
Introducing the EXP 62+ Wide Format Laminator from D&K. The EXP 62+ operates on a 230 Volts 30 Amps circuit. Power to the laminator is controlled by a main breaker switch. The top and bottom laminating rollers feature independent heating controls and are capable of reaching temperatures up to 300 degrees. The laminator speed, direction, and fan controls are located on the right hand panel. Speed is controlled with a turn of a knob. The EXP 62+ can operate at speeds up to 10 feet per minute. Rear cooling fans help keep thermal films flat when exiting the laminator. Laminating roller hei ...
Read More
Introducing the EXP 62+ Wide Format Laminator from D&K. The EXP 62+ operates on a 230 Volts 30 Amps circuit. Power to the laminator is controlled by a main breaker switch. The top and bottom laminating rollers feature independent heating controls and are capable of reaching temperatures up to 300 degrees. The laminator speed, direction, and fan controls are located on the right hand panel. Speed is controlled with a turn of a knob. The EXP 62+ can operate at speeds up to 10 feet per minute. Rear cooling fans help keep thermal films flat when exiting the laminator. Laminating roller height and pressure is adjusted with a spring tension handle. The rollers can gap up to half inch. A removable safety shield helps keep fingers safe during the lamination process. A print squaring guide helps ensure that prints enter the laminator perfectly straight. Film supply tension is adjusted with a simple turn. An integrated release liner take-up allows operators to laminate with pressure sensitive materials. And optional slitter kit trims materials as they exit the laminator. An optional foot pedal also allows for hands free mounting and laminating. For more information on the EXP 62+ laminator, contact D&K at 800-632-2314.
