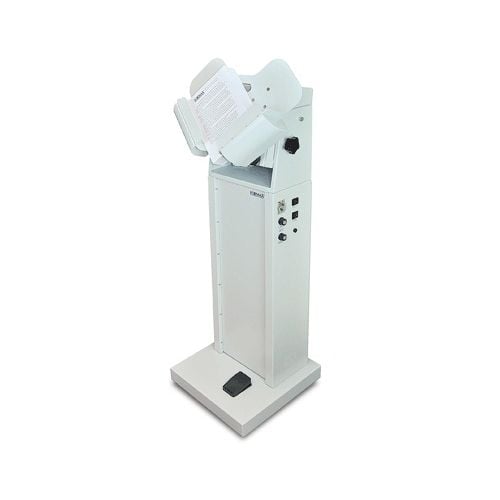

    Formax FD 404A1 High Capacity Free Standing Air Jogger
    2358.75 NewCondition InStock

    Formax FD 404A1 High Capacity Free Standing Air Jogger

    Part #: FD 404A1
    Brand: Formax
    • Variable Vibration Speed: Up to 3,000 vpm
    • Variable Air Control: Up to 29,000 rpm
    • Media Size: 5" x 7" Min - 12" x 18" Max
    • Sheet Capacity: Up to 940 sheets 20#
    Please Note: FREE Dock-to-Dock Shipping
    • 90 Day Manufacturer's Warranty
    • Price Match Guarantee
    • Free Shipping

    $2,358.75

    Buy Now, Pay Later
    Starting at $218/month
    Learn More >

    Qualifies for FREE Shipping!*

    SWIPE FOR MORE IMAGES
    • 0
    • 1
    • 2
    video

    Product Description

    The FD 404A1 high capacity air jogger by Formax is a powerful model that aligns and dries sheets in a single process while reducing that static electricity. The 404A1 features improved ergonomics and a contemporary color scheme while letting you control the vibration speed and air pressure that allow press sheets and digital printouts to be air dried immediately. The 404A1 can process up to 940 sheets at a time in sizes up 12" x 18". The v shaped bin lets you crisscross stacked piles of paper and the vertical to horizontal tilt feature keeps large paper stacks from bending. Part number FD 404A1.

    Product Details

    • Align, Dry, Remove Static in One Step: The FD 404A1 Air Jogger is ideal for print shops and production houses as it aligns and dries printed sheets in a single process while reducing static electricity.
    • Foot Pedal Control: Allows for two-handed loading and unloading .
    • Easy-to-Use Control Panel .
    • Variable Speed Control: Up to 3,000 vibrations per minute .
    • Variable Air Pressure Control: Up to 29,000 rpm, reduces jogging time.
    • Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and criss-cross stacked piles.
    • High Capacity: Jogs up to 940 sheets 20#.
    • 60-Second Countdown Timer: Capable of unattended jogging.
    • Operating Modes: Vibrate and Air, Air-only and Vibrate-only.

    Item Specifications

    • Variable Vibration Speed: Up to 3,000 vpm
    • Variable Air Control: Up to 29,000 rpm
    • Bin Size: 3.75" D x 20.375" W
    • Media Size: 5" x 7" Min - 12" x 18" Max
    • Sheet Capacity: Up to 940 sheets 20#
    • Dimensions: 21" W x 18" D x 54" H
    • Weight: 100 lbs.
    • Voltage: 110V/120V, 50/60 Hz
    • Manufacturer's Warranty:
      • 90 day limited Manufacturer's Warranty on parts.
      • Excluding wearables and labor.

    Demonstration Video

    Transcript: Formax presents the FD 404A1 Air Jogger. The FD 404A1 Air Jogger uses both vibration and air to reduce static electricity. Dry digital prints and square forms for further processing. As seen here, when the air is applied, the form separates to enhance the jogging. The A1 control panel includes an adjustable 60 second timer, adjustable vibration, and air flow knobs, a timer on-off switch, and an on-off switch or foot pedal switch. The paper tray is adjustable up or down for best jogging results of different paper weights and sizes. The tray also features rubber padding to reduce vibration ... Read More
    Formax presents the FD 404A1 Air Jogger. The FD 404A1 Air Jogger uses both vibration and air to reduce static electricity. Dry digital prints and square forms for further processing. As seen here, when the air is applied, the form separates to enhance the jogging. The A1 control panel includes an adjustable 60 second timer, adjustable vibration, and air flow knobs, a timer on-off switch, and an on-off switch or foot pedal switch. The paper tray is adjustable up or down for best jogging results of different paper weights and sizes. The tray also features rubber padding to reduce vibration noise. To operate, adjust the paper tray, load the paper, and press the power switch to on, then adjust the vibration and air flow. To utilize the timer, set the timer switch to the on position, adjust the timer control, and press the on switch. The jogger will automatically stop when the time runs out. The convenient foot pedal allows for hands free operation. Simply set the control switch to foot pedal, load forms, and step on the foot pedal. Formax FD 404A1 Air Jogger.

    Resources

    1. Formax FD 404A1 User's Manual Download
    2. Formax FD 404A1 Spec Sheet Download

    Related Categories you might also like

    Compare to Similar Paper Joggers

    • Model Name
      Model
      Variable Vibration Speed
      Variable Air Control
      Bin Size
      Media Size
      Sheet Capacity
      Dimensions
      Weight
      Voltage
      Safety Certifications
      Warranty
    • Formax FD 404A1
      Up to 3,000 vpm
      Up to 29,000 rpm
      3.75" D x 20.375" W
      5" x 7" Min - 12" x 18" Max"
      Up to 940 sheets 20#
      21" W x 18" D x 54" H
      100 lbs.
      110V/120V, 50/60 Hz
      N/A
      90 day limited warranty on parts. Excluding wearables and labor.
    • Formax FD402P1
      Up to 4,000 Vibrations/minute
      N/A
      3.5" x 8.75"
      Up to 11" x 17"
      800 sheets of 20#
      7.75" x 19" x 21"
      28lbs
      115 volts (50/60Hz)
      UL & CE applied for
      90 day limited warranty on parts. Excluding wearables and labor.
    • Formax FD402P3
      Up to 4,000 Vibrations/minute
      N/A
      2.25" x 11.25" each
      Up to 8.5" x 14"
      1,700 sheets of 20#
      9.75" x 14" x 17.75"
      29lbs
      115 volts (50/60Hz)
      UL & CE applied for
      90 day limited warranty on parts. Excluding wearables and labor.
    • Formax FD 402TA1
      Up to 2,500 vpm
      Up to 29,000 rpm
      3.75" D x 20.375" W
      5" x 7" Min - 12" x 18" Max
      Up to 940 sheets 20#
      21" W x 15" D x 23" H
      60 lbs.
      110V/120V, 50/60 Hz
      N/A
      90 day limited warranty on parts. Excluding wearables and labor.
