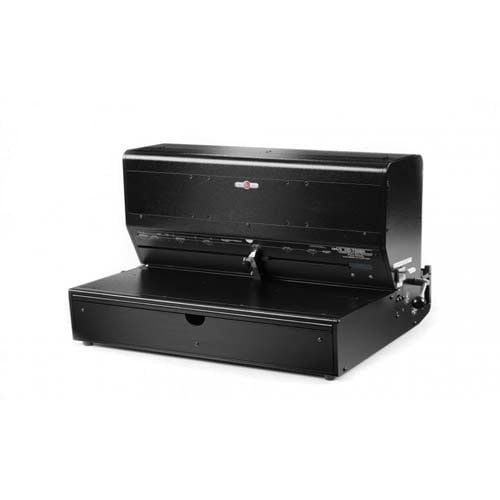

Rhin-O-Tuff Onyx HD7500H 24" Open-Ended Horizontal Electric Punch
6179.00 NewCondition InStock

Rhin-O-Tuff Onyx HD7500H 24" Open-Ended Horizontal Electric Punch

Part #: HD7500H-ONYX
Brand: Rhin-O-Tuff
  • Punch Pattern: Combination
  • Punch Capacity: 40 Sheets
  • Disengageable Dies: Yes
  • Manual or Electric: Electric
  • 3 Year Manufacturer's Warranty / 1 Year on Punching Die
  • Price Match Guarantee
  • Oversize / Truck shipping

$6,179.00

Buy Now, Pay Later
Starting at $572/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1
Product Name Item Number Price Qty
2:1 Round Die Set For Rhin-O-Tuff HD7500 75220
$1,544.00
3:1 Round Die Set For Rhin-O-Tuff HD7500 75320
$1,544.00
4:1 .250 Round Die Set For Rhin-O-Tuff HD7500 75410
$1,544.00
5mm Round Hole Die Set For Rhin-O-Tuff HD7500 75510
$1,544.00
Plastic Comb Die Set For Rhin-O-Tuff HD7500 75420
$1,853.00
2:1 Square Hole Die Set For Rhin-O-Tuff HD7500 75210
$1,853.00
3:1 Square Hole Die Set For Rhin-O-Tuff HD7500 75310
$1,853.00
3:1 Round Die Set W/ Thumbcut For Rhin-O-Tuff HD7500 07532T
$1,544.00
3:1 Square Die Set W/ Thumbcut For Rhin-O-Tuff HD7500 07531T
$1,853.00
3:1 .333 Oval Die Set For Rhin-O-Tuff HD7500 75311
$1,956.00
4:1 .2475 Round Die Set For Rhin-O-Tuff 7500H 75115
$1,544.00
4:1 .248 Round Die Set For Rhin-O-Tuff 7500H 754155
$1,544.00
2.5:1 Round Die Set For Rhin-O-Tuff 7500H 75500
$1,544.00
4:1 .2475 Oval Hole Die for HD7500 075444
$1,956.00
4:1 Oval, .250 Pitch Die for HD7500 075945
$1,956.00
5:1 Round, .200 Pitch Die for HD7500 757172
$1,544.00
6mm .2362 Oval Die Set For Rhin-O-Tuff HD7500 075946
$1,956.00
2:1 Rectangle Die Set For Rhin-O-Tuff HD7500 075050
$1,853.00
3:1 Square Oversized Hole Die Set For Rhin-O-Tuff HD7500 075913
$1,853.00
3-5-7 Round Hole Die Set For Rhin-O-Tuff HD7500 075943
$1,544.00
Velobind Die Set For Rhin-O-Tuff HD7500 075903
$1,544.00
Rhin-O-Tuff Onyx PAL-M Piks-A-Lift Manual Paper Lifter PAL-M-ONYX
$959.00
Versa Switch for HD7700/ HD7500 (horizontal paper feed) 076990
$185.00

Product Description

Can't find the right punching machine to meet your large documents demand? Rhin-O-Tuff HD7500H Onyx, with a 24 inch open-ended punch is the perfect solution for your problem. Superior open ended punching design will allow the usage with a much wider applications, expanding your business. The heavy-duty HD7500H can punch up to 40 sheets or 80 pages of 20lb at 25 cycles per minute. Rhin-O-Tuff understands working with larger documents and application will require a wider workspace. The pull-out extension table provides a much larger efficient work area, increase the productivity. At last, no more headaches finding storage for your extra punch tools and accessories. The HD7500H Onyx features built-in die storage conveniently store up to two 24 inch dies behind the machine, for quick access. The stylish and effective table top machine is equipped with an extra high capacity chip tray. A large slide-out bin tray with a clear view allows you, the user, to properly identify when it's full and never have to worry about over fill. To create a more productive working environment, the HD7700 has the ability to attach any Rhin-O-Tuff Modules on top, creating the ultimate one and only punch and bind combination. Punch away with the Onyx HD7500 Horizontal table top for your mid to high volume need.

Product Details

  • Automatic and Manual Reverse feature to reduce jamming in the punch
  • Rated up to 40 sheets or up to 80 Pages of 20 pound (80 gsm). The number of sheets depends on the paper weight and punch pattern used.
  • Rate of 25 cycles per minute
  • Auto and manual reverse clears most punching jams
  • Quick Change Die System with easy disengageable pins
  • 20 interchangeable dies available with 12 standard hole patterns (Each die is priced and sold separately)
  • Built-in die storage, store up to two 24 inch dies behind the machine
  • Accu-Set adjustments on odd size paper
  • Efficient work environment with a standard foot pedal and optional versa switch
  • Extreme high capacity Waste Chip Tray with Clear View Access
  • Heavyweight metal construction
  • Capable to attach additional Modules on top
  • Made in the USA with more than 98% recyclable materials

Item Specifications

  • Model: Hd7500H ONYX
  • Available Die Sets: More than 20 Interchangeable Dies with 12 Standard Hole Patterns
  • Punch Capacity Up to 40 Sheets or 80 Pages of 20 lb paper
  • Punch Length: 24" Open Ended Extra Capacity Die
  • Fully Disengageable Pins:Yes
    • Actual Machine Dimensions: 18X32X20
    • Actual Machine Weight : 148
    • Shipping Length : 35
    • Shipping Width: 24
    • Shipping Height: 22
    • Shipping (Web) Weight: 162 lbs
  • Manufacturer's Warranty: Three Year Manufacturer Manufacturer's Warranty

Staff Review

Rhin-O-Tuff HD7500 Punch Review

When it comes to binding punches, Rhin-O-Tuff makes some of the best ones money can buy. If your workplace is in need of a punch that can withstand heavy use and produce different hole patterns, one device to check out is the company’s HD7500. Here’s what is great about it – and what should be improved. (Don’t worry – the great things way outnumber the things that could be improved.)

What’s great:

  • The HD7500 has a 24-inch punching length so you’ll be able to work with paper of varying sizes. Letter- and legal-sized documents can definitely be processed by this machine, as can larger items such as blueprints, calendars, and more.
  • This machine utilizes interchangeable die sets. These sets can produce hole patterns for a number of different binding methods including wire, Velobind, plastic comb, and more. One set comes with the device (the rest are sold separately) and changing them out is easy. That’s because the HD7500 is equipped with a quick change system that makes it possible to change the sets in less than one minute, no tools required. It couldn’t be easier.
  • All of the dies in each set are disengageable so you can get the right hole pattern for whatever it is you’re working on.
  • The HD7500 has two motors so it’s powerful and quick. It can complete up to 90 punching cycles in just one minute. The punching capacity varies a bit depending on which die set you’re using, but the maximum number of sheets it can punch per lift is 40. It’s possible to punch as many as 18,000 sheets per hour with this device.
  • If you’re interesting in wire binding, you’ll be pleased to know that this machine can be paired up with the Rhin-O-Tuff HC2041 twin-loop wire closer. Putting these two machines together will give you a complete binding system.
  • If you’re in a shared workspace, you can use the HD7500 and not disturb your colleagues. It operates so quietly those around you won’t be distracted.
  • Although this is a very well-built machine that contains metal parts, it still comes with a great one-year warranty just in case the unexpected occurs. You should be able to subject this device to heavy use without anything bad happening.

What could be improved:

  • When you use the HD7500, you’re punching the paper horizontally. While this is more convenient when working with especially long documents, it does mean there’s a greater chance that the paper will be incorrectly punched. That’s because a vertical punching mechanism has gravity working with it to ensure all the pages are flushed when they’re processed.
  • This machine is huge and not at all flashy. It wouldn’t be a good choice for small work areas or offices that desire eye-catching machines.

Overall, the Rhin-O-Tuff HD7500 is one of the fastest, most powerful punches you can buy. It’s perfect if you need a punch for different binding methods as well as large documents. Although its looks could be improved and a vertical punching mechanism would be nice, this machine is definitely worth your consideration if you need a binding punch.
