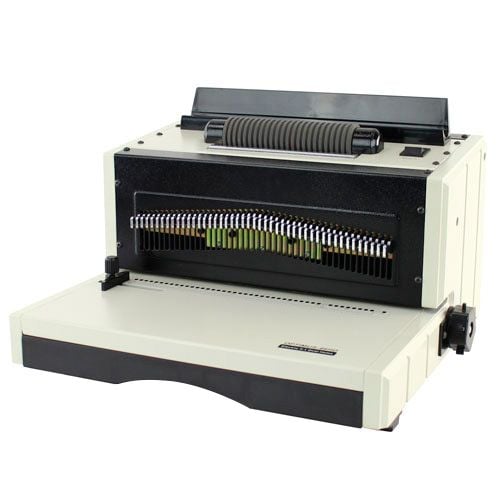

Tamerica Optimus-46HD 4:1 Pitch Coil Binding Machine
- 0
- 1
Product Description
Product Details
- Electric punch via foot pedal.
- Punches up to 30 sheets per lift (20 lbs paper).
- 11.7" Punch Length.
- Automatic Coil Inserter w/Foot Pedal operation.
- Horizontal Paper Load.
- 4.5mm Oval Hole Size.
- Disengageable Dies.
- Adjustable Punch Depth.
- Adjustable Edge Guide.
- Hand held Crimper Included.
- Dimensions: 21" x 19" x 14".
- For Moderate to Heavy Use.
- 1 Year Manufacturer's Warranty.
Item Specifications
- Punch Type: Coil (Oval Holes)
- Punch Method: Electric
- Max. Punching Capacity: 30 Sheets
- Max. Binding Capacity: 220 Sheets
- Max. Diameter: 1"
- Max. Punching Length: 11.7" w/ Open Throat
- Die Pitch: 4:1 .248 Round Hole
- Paper Load: Horizontal
- Usage: Moderate/Heavy
- Interchangeable Dies: No
- Disengageable Dies: Yes
- Punch Depth Control: Adjustable
- Edge Guide: Adjustable
- Foot Pedal: Yes
- Coil Binder/Bind Channel: Electric Coil Inserter
- Coil Crimper: Yes
- Compatible Supplies: Plastic Spiral Binding Coils
- Shipping Length : 21
- Shipping Width: 19
- Shipping Height: 14
- Shipping (Web) Weight: 57 lbs
- Manufacturer's Warranty: 1 Year
Demonstration Video
To begin, first adjust the edge guide on the left. Next bring a page up and find where any of the holes intersect with the edge. Pull any of the pins out that you don’t want punched.
Flip the top switch to punch, insert your page, and push the foot pedal to make the punch. If you need to align it better, now is your chance.
On the left is a depth margin control for smaller or larger bindings—you can see the differences here.
Now you can punch up to 30 pages at a time! Once your project is punched and put together, n ... Read More
This is the Tamerica Optimus-46HD 4:1 Pitch Coil Binding Machine!
To begin, first adjust the edge guide on the left. Next bring a page up and find where any of the holes intersect with the edge. Pull any of the pins out that you don’t want punched.
Flip the top switch to punch, insert your page, and push the foot pedal to make the punch. If you need to align it better, now is your chance.
On the left is a depth margin control for smaller or larger bindings—you can see the differences here.
Now you can punch up to 30 pages at a time! Once your project is punched and put together, now thread your plastic coil into a few of the holes. Flip the switch to “bind”, and press the foot pedal to activate the roller. Place the coil on and it will spin it through the entire project.
Now take the provided coil crimpers and clip off the extra coil. Make sure that the red dot is facing up(so you can see it). Flip the book for the other side, and now you have a beautiful coil bound book!
