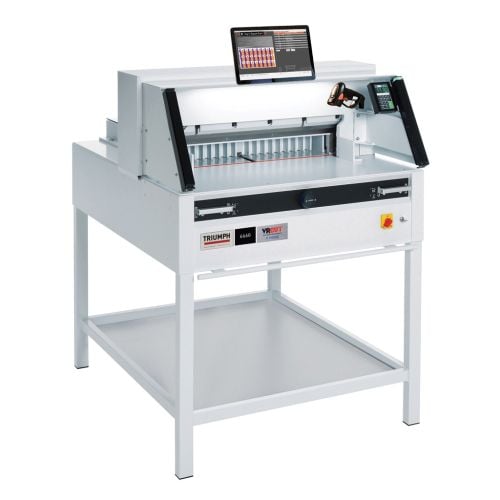

Triumph 6660 25-1/2" Automatic Programmable Cutter with VRCut Software
19599.00
NewCondition
InStock
Triumph 6660 25-1/2" Automatic Programmable Cutter with VRCut Software
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Product Description
This Triumph 6660 is a 25-1/2" inch programmable paper cutter with automatic clamp, power back gauge, digital touchpad, and IR safety light beams on front table. The Triumph 6660 has a programmable control module for the power backgauge with multi-lingual touch pad, and 99 programs with 99 steps in each program can be stored. The convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance(including blade changes) within reach. Its Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently. Plus, blade changes can be made without removing the machine covers. The Triumph 6660 now comes with a NEW VRCut PC software solution designed to automate the cutting work-flow by promoting an efficient and error-free cutting process from start to finish. VRCut intelligently bridges the gap between pre-press and the finishing process, allowing operatorsof an experience level the ability to cut with confidence. Increase your work productivity and output with this Triumph 6660 25-1/2" Automatic Programmable Cutter.
Product Details
- IR Safety Curtain. The IR light beam safety curtain covers the work area to ensure the highest level of operator safety.
- Electronic Hand Wheel. The electronic hand wheel, with infinitely variable speed control, is used for manual back gauge positioning.
- Easy Cut Blade Activation Bars. Patented EASY CUT blade activation bars ensure true, two-hand operation and allow blade and clamp to be activated independently.
- Easy-To-Use Touchpad The programmable control module is equipped with a multilingual touchpad for easy operation. 99 programs with 99 steps in each can be stored in memory.
- Tool Holder. Convenient, drop-in tool holder is located on the rear of the machine and keeps all tools necessary for routine maintenance (including blade changes) within reach.
- Safe Blade Changes. Blade changes can be made without removing the machine covers. The handy blade changing device covers the cutting edge of blade.
- VRCUT Impose:
- A barcode is automatically created that can be scanned for error-free job recall on the Triumph cutter.
- As an additional guidance measure, cut sequence numbers and arrows are printed on the sheet to guide the operator.
- VRCUT Controller:
- Current step and cut-line indicator arrow are highlighted in the upper left and hand corner.
- A prominent arrow is displayed if the current step requires a rotation action from the operator.
- Full cut sequence instructions are displayed with the current step highlighted for quick reference.
- An orange line appears indicating the cut line.
- Operator is notified at each step when to discard paper scraps, save cut segments for additional cutting and set aside finished product for shipment.
- Options: Side Tables (CU0495), Cutting Knives (AC0656), Cutting Sticks (AC0679)
- Comes with FREE VRCut Controller Hardware Kit:
- After registering your VRCut license you have the option to order a complete VRCut Controller Hardware Kit at no cost (free shipping included within the United States). The VRCut Controller Hardware Kit comes with everything you need, including a touchscreen PC tablet with VRCut Controller license installed, a barcode scanner, mount and all of the required cabling. Open the box, set up the components, and you’re ready to go!
Item Specifications
- Type of machine: Automatic Programmable
- Cutting Width: 25 1/2"
- Cutting Height: 3"
- Narrow Cut: 1"
- Cutting Length Behind Blade: 24"
- Motor Output, Horsepower: 2
- Power Supply: 115V, 60Hz
- Actual Machine Weight : 757
- Shipping Length : 48
- Shipping Width: 51
- Shipping Height: 33.5
- Shipping (Web) Weight: 775 lbs
- Manufacturer's Warranty: 1-year limited Manufacturer's Warranty, excluding wearables
Demonstration Video
MBM Triumph Cutter 5255 5260 6655 6660 Demo
Transcript:
MBM corporation presents The Triumph Cutters 5255, 6655, 5260 and the 6660. These automatic programmable cutters are world renowned for their power precision and the ease of operation. The Triumph 5255 and the 6655 features an automatic clamp power back gauge and digital touchpad. The 5255 has a cutting width of 20 and 3/8 inches while the 6655 as a cutting width of twenty five and a half inches. Both models have a cutting height of three inches, and both feature a hinge transparent safety guard on the front table. The Triumph 5260 programmable cutter has a cutting width of 20 and 3/8 inches a ...
Read More
MBM corporation presents The Triumph Cutters 5255, 6655, 5260 and the 6660. These automatic programmable cutters are world renowned for their power precision and the ease of operation. The Triumph 5255 and the 6655 features an automatic clamp power back gauge and digital touchpad. The 5255 has a cutting width of 20 and 3/8 inches while the 6655 as a cutting width of twenty five and a half inches. Both models have a cutting height of three inches, and both feature a hinge transparent safety guard on the front table. The Triumph 5260 programmable cutter has a cutting width of 20 and 3/8 inches and a cutting height of 3 inches. 5260 features a lock and key, main switch, and light curtains as part of the SCS safety cutting system. The IR light beam safety curtain covers the entire work area to ensure the highest level of operator safety. All four models are equipped with an easy-to-use touchpad ninety nine programs with 99 steps in each can be stored in memory. The touchpad is also pre programmable for standard paper sizes as a memory key for repeat cuts. The optical cutting line with bright and durable LEDs allow for quick and convenient cutting and trimming. Patented easy cut blade activation bars ensure true two-handed operation and allow the blade and clamp to be activated independently. The electronic hand wheel with infinite variable speed control is used for manual back edge positioning. The Triumph 6660 is equipped with all the same features as the 5260, it has a wide cutting width 25 ½ inches and cutting height of 3 inches. Blade changes are made without removing machine covers. A handy blade changing device covers the cutting edge of the blade for added safety. The Triumph 5255,6655, 5260, and 6660 are available with optional side tables and are made using high quality solid and steel blades to guarantee perfect cutting results. With the ability to provide a precise and accurate cut every time with absolute safety the Triumph 5255, 6655, 5260, and 6660 by MBM Corporation serves as the perfect automatic programmable cutters for every job.
MBM VR Cut Models – How to Use the Control Panel
Transcript:
Speaker 1:
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to squares down.
Speaker 1:
-artwork that you're heading. The backgauge moves to the first position.
... Read More
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to squares down.
Speaker 1:
-artwork that you're heading. The backgauge moves to the first position.
... Read More
Speaker 1:
Today we're going to be demonstrating the VR Cut Controller. The VR Cut Controller will automatically guide the operator with a visual interface. To start the job, we're on a Triumph 5260. We click the start button and read the bar code on the job layout. The job layout was created in VR Cut Impose, and it automatically calls in the appropriate template. It gives the operator an option to call in the actual artwork. And that way you can actually see the-
VR Cut Controller:
Jog to squares down.
Speaker 1:
-artwork that you're heading. The backgauge moves to the first position.
VR Cut Controller:
Ready to cut step one.
Speaker 1:
The operator places the document into the cutter to ensure that it can cut. You'll see it will have the visual marker on the paper,-
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
-as well as on the screen. Now they have the audio command. Visual commands to rotate the paper. Also, it alines with cut two- [crosstalk 00:01:02].
VR Cut Controller:
Scan two.
Speaker 1:
-on the paper and on the screen. You'll see lid trash can open to indicate that there's a scrap to throw away.
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
We rotate the paper-
VR Cut Controller:
Ready to cut step three.
Speaker 1:
-throw away the scrap.
VR Cut Controller:
Ready to cut step four.
Speaker 1:
And you'll notice in this case that the table on the-
VR Cut Controller:
Ready to cut step five.
Speaker 1:
-screen has the-
VR Cut Controller:
Rotate 90 clockwise.
Speaker 1:
-has the work table. Now you take the page off the work table, rotate it, place it onto the cutter.
VR Cut Controller:
Ready to cut step six. Ready to cut step seven.
Speaker 1:
No rotation here. Now you'll notice the two pieces move over to-
VR Cut Controller:
Ready to cut step eight.
Speaker 1:
-the pallet indicating they are finished. This edge rips off the bleed edge.
VR Cut Controller:
Job complete.
Speaker 1:
And now the final two are push forward, and the job is complete.
Resources
Recommended for you
Related Categories you might also like
Main Features
HIGH QUALITY BLADES All Triumph cutter models feature high quality, German steel blades. |
EASY CUT BLADE ACTIVATION BARS Patented EASY CUT blade activation bars provide true two-hand operation (models 4315 and above). |
OPTICAL CUTTING LINE The optical cutting line indicator with bright LEDs ensures perfect alignment of cutting marks (models 4315 and above). |
EASY-TO-USE TOUCHPAD A multilingual, programmable touchpad module controls the back gauge on models 5255–7260. |
IR SAFETY CURTAIN The IR light beam safety curtain covers the work area to ensure the highest level of operator safety (models 5260, 6660, 5560, 7260). |
Comprehensive SCS Safety Package Features:
- Patented EASY CUT electronic blade activation bars for true two-hand operation.
- IR light beam safety curtain on front table
- Safety cover on rear table.
- Main switch and safety lock with key.
- 24 volt controls (low voltage).
- Patented IDEAL safety drive.
- Automatic blade and clamp return from every position.
- Disc brake for instant blade stop.
- Blade changing device covers cutting edge of blade.
- Blade depth adjustment from outside of machine.
- Blade and cutting stick can be changed without removing covers.
Other Features:
- Ergonomic, 37 inch working height.
- Electric blade and clamp drive.
- Electric back gauge drive with touchpad for easy programming.
- Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch.
- Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step).
- Pre-programmed for standard paper sizes. Memory key for repeat cuts.
- Automatic SET function for reference measurement and EJECT function for pushing out paper.
- Self-diagnostic system with error indication on display.
- Electronic hand wheel with variable speed control for manual back gauge setting.
- Bright, LED optical cutting line.
- 3-step, LED front table illumination.
- Adjustable, spindle guided back gauge with narrow separations and plastic gliders.
- Dual side guides on front and rear tables. High quality, German steel blade.
- Solid steel blade carrier and adjustable blade guides.
- All-metal construction.
- Includes stand with storage shelf, easy-access tool holder, and paper blocking tool.
- Optional side tables increase work surface.
- UL and C UL approved.
Compare to Similar Paper Cutters
| Model Name | Triumph 6660 | Triumph 5255 | Triumph 5260 | Triumph 6655 | Triumph 5560 | Triumph 5560 LT | Triumph 7260 |
|---|---|---|---|---|---|---|---|
| Model |  |
 |
 |
 |
 |
 |
 |
| Part Number | CU0492 | MBM-CU0490 | CU0489 | MBM-CU0491 | CU0493 | CU0497 | CU0494 |
| Cutting Width | 25 1/2" | 20 3/8" | 20 3/8" | 25 1/2" | 21 5/8" | 21 5/8" | 28" |
| Cutting Height | 3" | 3" | 3" | 3" | 3 3/4" (3 5/8 w false clamp) | 3 3/4" (3 5/8 w false clamp) | 3" |
| Narrow Cut | 1" | 1 3/8" | 1 3/8" | 1" | 1 1/4" (2 3/8 w false clamp) | 1 1/4" (2 3/8 w false clamp) | 3/4" (3 1/2 w false clamp) |
| Cutting Length Behind Blade |
24" | 20 3/8" | 20 3/8" | 24" | 22 7/16" | 22 7/16" | 28" |
| Dimensions (D x W x H) | 48" x 39" x 51" (61 1/2 W with side tables) |
44" x 33 7/8" x 51" (56 1/2 W with side tables) |
44" x 33 7/8" x 51" (56 1/2" W with side tables) |
48" x 39" x 51" (61 1/2 W with side tables) |
55" x 42" x 54" (64 W with side tables) |
55" x 42" x 54" (64 W with side tables) |
60 1/2" x 51 3/8" x 52 1/2" (63 D, 82 1/2 W with side tables) |
Replacement Blades and Accessories
| Product Name | Item Number |
| MBM 25-1/2" High Speed Steel Replacement Blade for Triumph 6550 and 6660 Cutters | JH-42289HSS |
| Premium Red Cutting Sticks for MBM Triumph 6550, 6550EC, 6550EP, 6660 - 12pk | JH-CS6098 |
| Standard White Cutting Sticks for MBM Triumph 6550, 6550EC, 6550EP, 6660 - 12pk | JH-CS4532 |
| Side Tables for Triumph 4815, 4850, 4860, 5255, 5260, 6655, and 6660 Paper Cutters | CU0495 |
