- 17" x 23" seal area for shrink wrapping a range of product sizes.
- 6,000 watt tunnel heating power provides high performance.
- User-friendly operator controls for fast, easy and repeatable setup.
- Seal arm obstruction detection for ensured operator safety.
ProductDescription

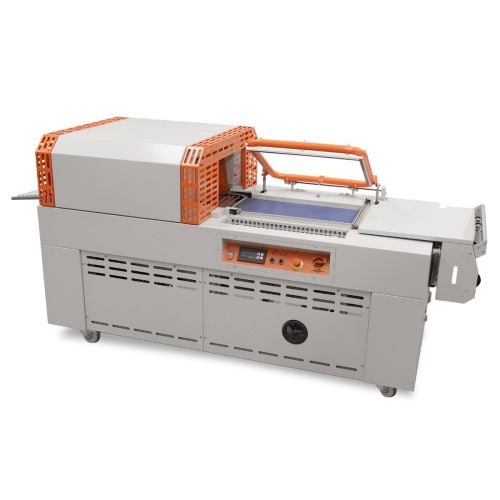

The Clamco 250C Combo is a robust and compact packaging solution that seamlessly combines an L-bar sealer with a high-performance shrink tunnel in one unit. It enhances operator ergonomics and production output with a motorized closing seal bar arm. The system efficiently transitions products from the sealer to the tunnel using a power take-away conveyor, and its 6,000-watt tunnel excels at shrink wrapping various products at a rate of up to 12 packs per minute. Notably, the L-bar sealer boasts a spacious 17 x 23-inch seal area and features like a heated seal blade, adjustable seal power, and compatibility with polyolefin up to 150 gauge and PVC up to 100 gauge. Safety features include automatic cool down, seal arm obstruction detection, and locking casters for stability. The 250C is an upgraded replacement for the Clamco 120/240C Shrink System, offered at the same price as its predecessor, making it a valuable choice for businesses seeking efficiency and versatility in their packaging processes.
Product Details
- L-Bar Sealer Features:
- 17" x 23" seal area for shrink wrapping a range of product sizes.
- Heavy-duty seal arm with motorized closing – push button or auto pace modes.
- Quick height adjustment facilitates centering the seal on the product.
- Heated seal blade for long-lasting performance and easy replacement.
- Adjustable seal power provides high seal repeatability.
- Designed to work with polyolefin up to 150 gauge and PVC up to 100 gauge.
- Shrink Tunnel Features:
- Tunnel chamber size: 16" W x 22 “L x 9” H.
- 6,000 watt tunnel heating power provides high performance.
- Digitally-controlled tunnel temperature for superior consistency.
- Heavy-duty blower with adjustable velocity and flow for optimized performance.
- Tunnel conveyor with variable speed and live rollers (1.25” spacing) for a better shrink result.
- Insulated tunnel design minimizes heat loss and maintains temperature consistency.
- Operating Features:
- User-friendly operator controls for fast, easy and repeatable setup.
- Film cradle can accommodate up to 20" wide centerfold film.
- Pinwheel perforator wheels for rapid air escape that results in excellent shrink.
- 20” long roller outfeed conveyor for package transfer at the end of the process.
- Robust design with welded steel frame and 33” operating height.
- Safety Features:
- Seal arm obstruction detection for ensured operator safety.
- Automatic cool down for maximum component reliability.
- Quick access to the entire electrical cabinet for easy troubleshooting.
- Designed to meet CE requirements.
- Locking casters for safe, stable operation.
- Emergency stop button.
Item Specifications
- Seal Length (End): 17"
- Seal Length (Side): 23"
- Film Width (Max): 20" Centerfold
- Tunnel Opening Width: 16"
- Tunnel Opening Height: 9"
- Tunnel Inside Length: 22"
- Tunnel Power (Watts): 6000 Watts
- Electrical Requirements: 220V, 50 amps, 1 phase
- Overall Dimensions: 106"L x 38"W x 50"H
- Shipping Weight (Approx.): 1,650 lbs
