Clearly Marked Fold Settings: Switch between fold types quickly and easily
ProductDescription

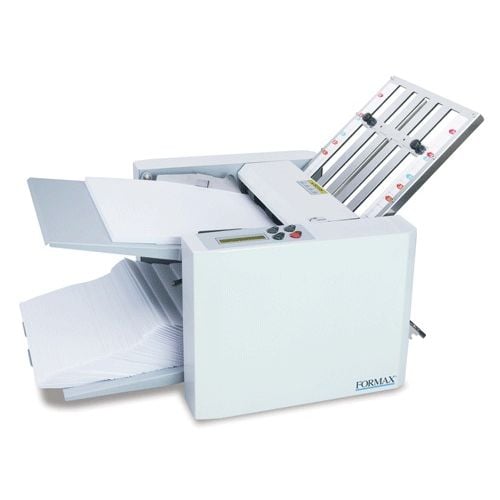

The FD 300 Office Desktop Folder is an economical, compact solution for low-volume folding projects, handling 11″ and 14″ paper at speeds up to 7,400 sheets per hour. Pre-marked for four popular folds C, Z, Half, and Double Parallel, it offers simple, out-of-the-box operation with clearly labeled fold settings. User-friendly features include an LCD control panel with a 3-digit resettable counter, AutoBatch for processing document sets, and an output conveyor with adjustable stacker wheels for neat, sequential stacking. Ideal for churches, schools, and small offices, the FD 300 delivers fast, efficient folding with minimal setup and adjustment.
Product Details
High Productivity: Folds up to 7,400 pieces per hour.
Compact Design: Fits easily in small office spaces.
Quick Setup: Ready to use right out of the box.
Pre-Marked for Popular Folds: Supports four common fold types.
Sheet Compatibility: Folds 11” and 14” sheets.
LCD Control Panel with 3-Digit Counter: Simple operation and job tracking.
Clearly Marked Fold Settings: Makes setup fast and accurate.
Drop-In Top Feed System: Easy document loading.
200-Sheet Hopper Capacity: Supports longer runs with fewer interruptions.
Item Specifications
Hopper Capacity: Up to 200 sheets 20#
Speed: Up to 7,400 sheets per hour
Paper Sizes:
Min: 4” W x 5” L (102 x 127mm)
Max: 8.5” W x 14” L (216 x 356mm)
Paper Weight: Up to 30# (112gsm)
Fold Types: C, Z, V, Double Parallel
Dimensions: 24” L x 14” W x 16.5” H (610 x 366 x 419mm)
Weight: 25 lbs (11kg)
Power: 120V AC, 60Hz
Safety Certifications: CE approved
Demonstration Video
Formax FD 300 Table Document Folder Demo Video
Transcript :
Formax presents the FD 300 Tabletop Document Folder. The FD 300 is an economical space saving document folder ideal for any small organization with folding needs. The rugged compact folder can fold documents up to 14 inches in length and up to 8 ½ inches wide. At speeds of up to 7,400 sheets per hour, the FD 300 completes folding tasks in no time. The FD 300 comes pre-marked with fold settings in both 11” and 14” sizes. A chart is conveniently located on the in-feed of the folder to identify where each fold plate should be set. The FD 300 features a belt driven stacker conveyor without f ...
Formax presents the FD 300 Tabletop Document Folder. The FD 300 is an economical space saving document folder ideal for any small organization with folding needs. The rugged compact folder can fold documents up to 14 inches in length and up to 8 ½ inches wide. At speeds of up to 7,400 sheets per hour, the FD 300 completes folding tasks in no time. The FD 300 comes pre-marked with fold settings in both 11” and 14” sizes. A chart is conveniently located on the in-feed of the folder to identify where each fold plate should be set. The FD 300 features a belt driven stacker conveyor without feed wheels to keep folded documents in a neat and sequential order. It also includes the 3-digit counter to keep track of the number of sheets folded. The auto batch mode allows for a set number of sheets to be folded with a pause in between sets for easy handling. The FD 300 is easy to set up right out of the box. Simply set the folder on a level sturdy surface, lower the catch tray, open the feed table extension, and then insert the fold plate. Next, set the fold plates using the fold chart mentioned earlier, adjust the upfeed stacker wheels, and then load the documents to be folded and press start. In no time, the documents will be folded with crisp accurate folds ready for further processing. The Formax FD 300 Tabletop Document Folder.
Thank you for your question. The Formax FD 300 Desktop Paper Folder would not be able to fold 60# stock. It tops out at being able to fold a 30# stock (112 gsm).
Thank you for your question. The Formax FD 300 Desktop Paper Folder has marks on the fold gate for the most popular folds but you are manually set the fold plates to set up a custom fold.
Thank you for your question. The Formax FD 300 Desktop Paper Folder would be able to fold the stock but it will have the same issues that any friction fed folder will have with the glossy stock. Friction fed folders have issues with most glossy stocks because the stock is slicker and can slip and not load correctly causing a misfold or jam. For glossy stock you will get better results with a air suction feed folder.
Thank you for your question. We do ship internationally. If you put items in your cart and view the cart, you can enter your country and postal code to get the shipping cost.
Unfortunately the Formax FD 300 Desktop Paper Folder can not fold multiple sheets at a time. The Formax FD342 is able to fold multiple sheets through a manual bypass.
Up to 7400 sheets per hourUp to 200 sheets 20#Letter "C", Accordion "Z", Half "V", Double Parallel foldsUp to 8.5'' W x 14" LN/A24" L x 14" W x 16.5" H25 lbs120V AC, 60HzN/A90 day limited warranty on parts. Excluding wearables and labor.
Up to 7,700 sheets per hourUp to 250 sheets 20#C, Z, V, Double ParallelMin: 4" W x 5" L or Max: 8.5’’ W x 14" LN/A24" L x 14" W x 17" HN/A120VAC 60 HzCE Approved90 day limited warranty on parts. Excluding wearables and labor.
Up to 8,600 sheets per hourUp to 500 sheets 20# (75gsm)Letter, Zig-Zag, Half, Double ParallelMin: 4" W x 5" L / Max: 12' W x 18" LUp to 30# (112gsm)33" L x 18.5" W x 22" H75 lbs (25kg)120V AC 60 HzN/A90 day limited warranty on parts. Excluding wearables and labor.
