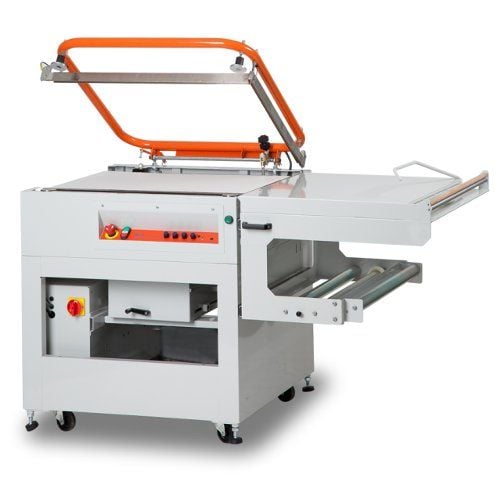

Clamco 6L High Performance L-Bar Sealers
- Seal Length (End): 27.5"
- Seal Length (Side): 33"
- Power take-away conveyor for automatically transporting the product from the seal area
- Heavy duty frame construction provides 24/7 operation
- Oversize / Truck shipping
$14,727.50
- 0
- 1
- 2
- 3
- 4
Product Name | Item Number | Price | Qty | ||
---|---|---|---|---|---|
Clamco 6L High Performance L-Bar Sealer with Manually Actuated Closer | 04PACDEM6L | $12,183.75
|
|||
Clamco 6L High Performance L-Bar Sealer with Pneumatic Actuated Closer | 04PACDEM6LP | $14,727.50
|
|||
Scrap Take-Up Wheel for L-Bar Sealers | 04PACSTW | $2,367.09
|
Product Description
The 6L Clamco heavy duty L-bar sealers can be used with a wide range of films due to their precise temperature and speed controls. These dependable L-bar sealers are equipped with a sealing arm that works manually, pneumatically, or with a motor. The robust design of the Clamco systems provides the framework for greater productivity and ensures consistently strong seals.
The use of integrated application-specific controls allow for easy and fast operator set-up and provide years of trouble-free operation. The Clamco L-bar sealers offer a hot knife seal bar option for sealing PVC and polyethylene films. In addition to the temperature control, the Clamco L-Bar sealer has dwell control for continued seal time under pressure, and speed control for the product power take-away conveyor. The Clamco system also has a convenient adjustable height control for the power take-away conveyor to provide smooth product transfer.
The Clamco heavy duty L-bar sealers are 24/7 machines that minimize maintenance, provide consistently strong seals and can be used with a wide range of films.
Product Details
- Operating Features
- Power take-away conveyor for automatically transporting the product from the seal area
- Automatic closing seal bar arm (optional)
- Heavy duty frame construction provides 24/7 operation
- Easy-to-use operator controls enhance operator effectiveness
- Independent dwell control allows flexibility for utilizing a wide range of films
- Sealing Features
- Large dual magnetic hold down ensures a consistent seal pressure
- Height adjustable, heavy duty seal head with stainless steel film clamps
- Unique temperature control provides consistent seals and longer wire life
- Spring tension adjustment enhances seal arm counterbalance and return speed
- Pin perforation wheels allow for ventilation and excellent shrink
- Set-up Features
- Cycle delay sets the time between cycles in automatic mode (optional)
- Lower Film Cradle gives the machine a smaller footprint
- Safety Features
- Cycle start button for operator safety
- Locking casters for safety and stability
- CE compliant design for enhanced troubleshooting
- Made in the USA.
- 3 Year Manufacturer's Warranty.
Item Specifications
- Seal Length (End): 27.5"
- Seal Length (Side): 33"
- Maximum Film Width: 32"
- Overall Length: 60"
- Overall Width: 36"
- Overall Height: 36"
- Electrical: 220 Volt, 10 amp, 1 Ph
- Shipping Weight: 600 lbs
- Manufacturer's Warranty: 3 Year Manufacturer"s Manufacturer's Warranty
