Drytac Dry Mount Film Mounting Tissue
333.63 1331.45 2

Drytac Dry Mount Film Mounting Tissue

Brand: Drytac
  • Film Length: 82' - 328'
  • Film Width: 41" - 51"
  • Film Thickness: 2 mil
  • Release Liner: 1 Side PE Coated Bleached Kraft Grey Grid Paper (Moisture Stable)
Starting At

$333.63

Choose Product Below

Product Description

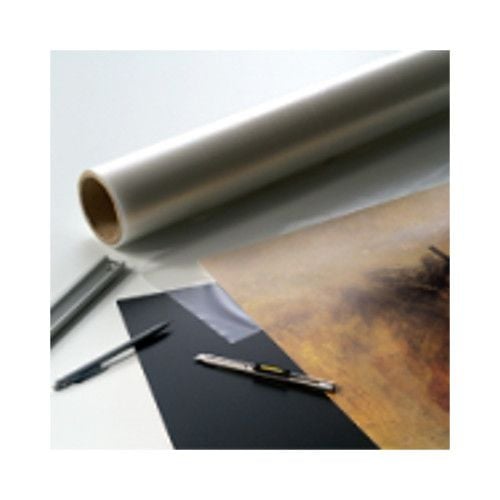

The Drytac Dry Mount Film is a dry mounting tissue for mounting irregular surfaces. This Dry Mount Film Mounting Tissue is a thin PVC carrier, coated on both sides with an acrylic heat-activated adhesive. Each side of the film is protected by a high quality moisture stable paper release liner. When the film is ready for use, the release paper is removed, exposing a low initial tack adhesive allowing positioning of a print without the use of a tacking iron. The print can then be repositioned at any time prior to inserting into a heated press. this Dry Mount Film is ideal for mounting to canvas, heavily grained or textured substrates, and most other irregular surfaces like most metals.

Product Details

  • Film Length: 82' - 328'
  • Film Width: 41" - 51"
  • Film Thickness: 50µ (2 mil)
  • Release Liner: 1 Side PE Coated Bleached Kraft Grey Grid Paper (Moisture Stable)
  • Adhesive: Solvent Acrylic (Heat Activated)
  • Carrier: Clear PVC
  • Adhesive Layer: 25µ (1 mil) on each side
  • Ratio Film / Adhesive: 1:1
  • Heat Resistance Range: 70°C - 95°C (158°F - 203°F)
  • Adhesive Type: Acrylic
  • Adhesive Bond: Permanent
  • Initial Tack: Low
  • Processing Temperature: 185°F-212°F (85°C-100°C)
  • Dwell Time: 60-90 seconds
  • Application: Fine Art Prints, Picture Framing/Photography, Plaque Mounting

Product Reviews

Write Your Own Review
You're reviewing:Drytac Dry Mount Film Mounting Tissue
Your Rating

Technical Data

Dry Mount Film is a 2 mil (50µ) plasticized clear PVC film, coated on both sides with a heat-activated solvent acrylic adhesive that is protected on both sides by a bleached Kraft gridded release paper coated on one side with siliconized PE.

Typical Applications
  • Suitable for mounting to canvas, heavily grained or textured substrates and irregular surfaces, such as most metals.

Product Structure

Release Liner1 Side PE Coated Bleached Kraft Grid Paper (Moisture Stable)
AdhesiveSolvent Acrylic (Heat Activated)
FilmClear PVC


Physical Characteristics

Film Thickness2 mil (50µ)
Adhesive Layer1 mil (25µ) on each side
Film/Adhesive Ratio1:2:1
UV Protection FactorNot Applicable
Outdoor DurabilityNot Applicable
Service Temperature Range-4°F to 203°F (-20°C to 95°C)
Peel Strength (20 min, FTM1)18 N/25mm
Shelf LifeUse within 1 year after opening original box
Storage Conditions59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity


Process Settings

Equipment TypeTemperatureDwell Time
Roller LaminatorNot recommended
Press185°F to 210°F (85°C to 99°C)60 - 90 seconds
