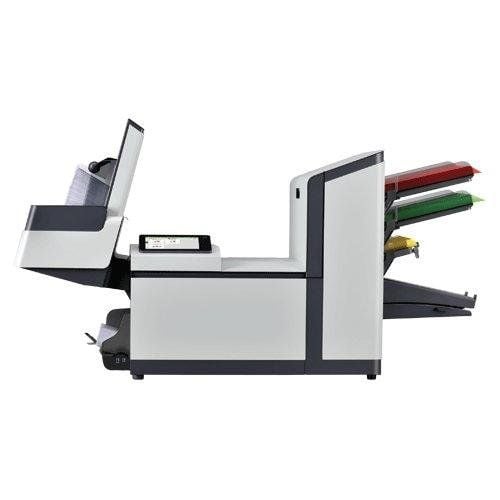

Formax 6210 Series Fully Automatic Folder and Inserter
625 19795 15

Formax 6210 Series Fully Automatic Folder and Inserter

Brand: Formax
  • Up to 2,200/2,500 pieces per hour
  • Color touchscreen
  • High-capacity output stacker
  • Feeders: Up to 325 sheets
  • Oversize / Truck shipping
Starting At


Buy Now, Pay Later with financing options from $58/mo.Learn More >

Choose Product Below

  • 0
  • 1
  • 2
  • 3
  • 4
  • 5
Product Name Item Number Price Qty
Formax 6210 Fully Automatic Folder and Inserter with One Sheet Feeder FD6210-Basic1
Formax 6210 Fully Automatic Folder and Inserter with One Sheet Feeders and 1 BRE FD6210-Advance1
Formax 6210 Fully Automatic Folder and Inserter with Two Sheet Feeders FD6210-Basic2
Formax 6210 Fully Automatic Folder and Inserter with Two Sheet Feeders and 1 BRE FD6210-Advance2
Formax 6210 Fully Automatic Folder and Inserter with Two Sheet Feeders and 1 Special BRE FD6210-Special2
Formax 6210 Folder and Inserter Production Feeder FD6210-00
Formax 6210 Folder and Inserter Short Feed Tray FD6210-05
Formax 6210 Folder and Inserter Special Short Feed Tray FD6210-10
Formax 6210 Folder and Inserter Side Exit, Front Side Tray FD6210-15
Formax 6210 Folder and Inserter Side Exit, Rear Side Tray FD6210-20
Formax 6210 Folder and Inserter Performance Package Upgrade FD6210-25
Formax OMR Advanced (1 Track) License with CIS reading scanner FD6210-30
Formax BCR 2D Advanced License with CIS reading scanner FD6210-32
Formax OMR, BCR 1D & 2D, and OCR Multi License with CIS reading scanner FD6210-34
Formax OMR/BCR Flex License with CIS reading scanner FD6210-35

Product Description

The Formax 6210 Series Fully Automatic Folder and Inserter combines advanced folding & inserting technology with user-friendly features and flexibility. Standard features include a 7" full-color touchscreen control panel with graphical interface, high-capacity vertical stacker which holds up to 500 finished envelopes, automatic paper and envelope presence sensors with indicators on the control panel, and a top-loading envelope hopper. It also includes an eco-friendly sleep mode which saves energy by automatically putting the inserter into standby mode after 1 hour of being idle.

The 6210 Series is available in five configurations to meet your processing needs: FD 6210-Basic 1 with one automatic sheet feeder, FD 6210-Basic 2 model with two automatic sheet feeders, FD 6210-Advanced 1 with one sheet feeder and one insert/BRE feeder, FD 6210-Advanced 2 with two sheet feeders and one insert/BRE feeder and FD 6210-Special 2 with two sheets feeders and a special insert/BRE feeder.

The 6210 Series Series Inserter is equipped with AutoSetTM for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes and fold lengths. Recurring and frequent jobs run in AutoSetTM can also be stored as one of 50 programmable jobs. The powerful folding system enables the 6210 Series to accurately fold up to five sheets at once. Optional CIS scanning technology is available to cover the full width of the document feeders and accurately reads OMR, 1D and 2D barcodes printed in any location on a document.

To maximize the capabilty of this inserter, optional accessories are available and these include a production feeder for BREs or shirt inserts up to 6" in length, productivity package for increased output up to 20,000 pieces per month at up to 2,500 per hour, CIS Scanner, advanced OMR and BCR, short feed trays and a front or rear side exit tray.
*** This machine will be pre-configured for you at the factory but will require samples of your forms and envelopes be sent for testing prior to shipping. Our folder/inserter specialists will help you through this process. ***

Product Details

  • Five Models Available: Choose the configuration that best suits your applications
    • Basic 1 (Folder/Inserter with One Sheet Feeder)
    • Advanced 1 (Folder/Inserter with One Sheet Feeders and 1 BRE)
    • Basic 2 (Folder/Inserter with Two Sheet Feeders)
    • Advanced 2 (Folder/Inserter with Two Sheet Feeders and 1 BRE)
    • Special 2 (Folder/Inserter with Two Sheet Feeders and 1 Special BRE)
  • 7" Color Touchscreen: Graphical interface provides quick, easy setup
  • 50 Programmable Jobs: Handy for recurring or frequently processed applications
  • High-Capacity Vertical Stacker: Holds up to 500 finished envelopes in a neat, sequential order
  • AutoSetTM: Automatically senses and sets paper length, fold type, envelope size, fold length and double document detection. Simply load and go.
  • Envelope & Paper Presence Sensors: Graphic indicators on touchscreen to assist operators
  • Enhanced Folding System: Fold/insert up to 5 pages in half-fold (up to 8 w/optional Productivity Pkg)
  • Multi-Sheet Feeding: Feed up to 3 sheets from one feeder (up to 10 w/optional Productivity Package)
  • Clamshell Design: Easy access to the paper path
  • Accumulate Before Folding: Documents are folded and inserted together
  • Double Document Detection: Electromechanical sensors are unaffected by dust, smudges or paper color, providing essential document integrity
  • Multiple Insert Capability: Fold and/or insert sheets, BREs and cards in almost any combination
  • Fold Types: C, V, Z, Double Parallel, no fold
  • Fold Only without Inserting
  • Daily Mail Mode: For inserting stapled sets
  • Seal and Non-Seal Capabilities
  • Cascade Mode: Maximizes output by connecting multiple feeders with the same document. When one feeder empties, the next automatically starts feeding, for a total hopper capacity of up to 650 sheets.
  • Eco Mode: Energy-saving feature places the inserter into sleep mode after 1 hour of inactivity
  • Options
    • Short Feed Trays: For feeding up to 50 BREs or 325 short inserts
    • Production Feeder: Holds up to 325 BREs or 1,200 inserts, up to 6" in length
    • CIS Scanner: Spans the width of the feeders and reads OMR, 1D and 2D BCR, OCR printed horizontally or vertically anywhere on the page
    • Single or Multi-Code Reading Licenses: Able to read Single-Track OMR, Dual-Track OMR, 1D Barcode, 2D Data Matrix
    • Productivity Package: Increased speed, folding capacity, multi-sheet feeding capacity and monthly throughput
    • Front or Rear Side Exit Tray: Holds up to 225 envelopes
    • Catch Tray: Holds up to 100 envelopes

Product Reviews

Write Your Own Review
You're reviewing:Formax 6210 Series Fully Automatic Folder and Inserter
Your Rating

Item Specifications

  • Speed: Up to 2,000 / 2,500 pieces per hour
  • Duty Cycle: Up to 15,000 / 20,000 pieces per month
  • Standard Feeders: Up to 325 sheets each, 20# bond
  • Short Feed Tray: Up to 50 BREs or 325 inserts
  • Production Feeder: Up to 325 BREs or 1,200 inserts, up to 6" in length
  • Envelope Hopper: Up to 150 envelopes, top-loading
  • High-Capacity Vertical Stacker: Up to 500 filled envelopes
  • Catch Tray: Up to 100 envelopes
  • Front/Rear Side Exit: Up to 225 envelopes
  • Sheet Size: 3.5" - 14" H x 5" - 9" W
  • Programmable Jobs: 50
  • Maximum Insert Thickness: 1mm
  • Maximum Set Thickness: 2.5mm
  • Envelope Size: #10 and 6" x 9.5", 3.5" - 6.35" H x 6.3" - 9.7" W
  • Dimensions: 49" L x 36" H x 16.5" W
  • Power: 120V AC, 60 Hz
  • Manufacturer's Warranty: 90 day Manufacturer's Warranty on parts and labor

Inserter Testing Instructions


For each individual job that you plan to run through the inserter please do the following: Hand fold and insert one perfect "example" of the job and write a nickname for it on the outside of the envelope. We'll attempt to duplicate the example you've created for us using the machine. Please also include (50) additional outer envelopes that go with that job so that we can get a really thorough testing. Repeat this for every different job you want tested, put them into a larger manila envelope or box, and finally include some form of identification like a business card or a copy of our electronic correspondence. Send it all to:

MyBinding Forms Testing
1 Education Way
Dover, NH 03820

When will I get my results?

We typically have test results within 2-3 hours of your samples arriving. We'll then provide you the Scope of Work which lays out what you can expect when your jobs are run on the machine. You are not obligated to purchase just because we tested your samples, we frequently use the testing process as a way to select exactly which unit would be best for you. We do our best over the phone, but nothing compares to seeing samples and running them through a machine.

Why do you need to test samples? Don't you know what your machine can do?

Whitaker Brothers offers rock bottom pricing on inserters because we have zero returns on these machines. This is accomplished through this pre-sale scoping process. While we can get a pretty good idea of whether a unit will work for your application or not based on your description on the phone, the cost of return shipping on a mistake can exceed $500 so it's not worth taking a chance.

What benefit is there to sending samples up for testing?

Samples testing produces the scope of work you expect out of the inserter. It'll lay out every sample you sent us, our test results, and recommended changes to the mailing (if any are needed). That way before you purchase, and before it lands at your doorstep, you know exactly what the machine can and cannot do. This also allows us to pre-program folds into the machine making your learning curve much easier. Most importantly the scope protects you for incompatibility on any of the jobs you send us to test. If our scope said that a job will work, and when the machine arrives it doesn't work, we are on the hook to make things right.

I need this equipment immediately and cannot wait for the testing process!

While we always prefer to go through the presale process, sometimes time doesn't allow it. If you accept full responsibility for the compatibility of your jobs on the equipment and willingly forgo testing then we can ship immediately. You will not be able to return the product for any reason though. You may have to change your job, change your envelopes, or change the number of sheets you insert to make everything work. We're still responsible for the warranty, and we'll still give you all the assistance we possibly can. But skipping the testing phase puts all responsibility on the buyer.
