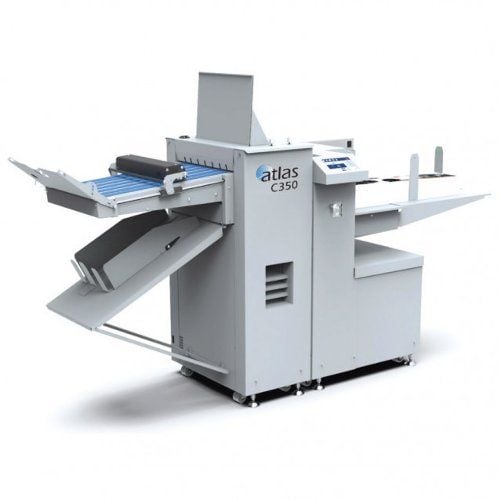

Formax Atlas C350 High-Speed Automatic Creaser/Folder
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- Creases per Sheet: Up to 30
- Min. Repeat Crease Distance: 0.004”
- Max. Loading Capacity: Up to 7.9”
- Outfeed: Belt conveyor stacker, catch tray
ProductDescription
Product Details
Features:- Vacuum Top-Feed Infeed Table: Offers a media loading capacity of up to 7.9” high, with optical sensors to control sheet separation and make adjustments on-the-fly.
- Two-in-One Outfeed: Fully automatic belt feeder for folded sheets, and a catch tray for crease-only jobs which can accommodate sheets up to 35” long.
- Fully Automatic Setup: Settings are automatically adjusted based on sheet size, weight and crease/perforation type.
- Lifetime Guaranteed Creaser Matrix: Heavy duty channel and anvil matrix is designed to last.
- Color Touchscreen: Intuitive, user-friendly interface with bold icons.
- Infeed Table Extension: Accommodates media up to 51” long.
- Programmed Creases: Common creases are simple to call up on the touchscreen.
- High-Speed Processing: Up to 7,500 sheets per hour (single crease only).
- Programmable Jobs: Users can store and recall an unlimited number of custom jobs.
- Quick Change Creasing Matrix Kits: Easy to swap in and out in just seconds, with no tools required.
- Floating Knife Folding System: Sheets pass through the dynamic creasing matrix, then through the patented folding mechanism, designed to prevent marks and scratches on digitally printed media.
- Flexible: Powerful creasing unit accepts standard, narrow, and ultra narrow creasing blades, as well as optional cross perforation blades.
- In-Line Rotary Perforation: Perforate and crease in a single pass
Options:
- Additional Creasing Matrix Kit: Works in conjunction with the standard creasing matrix to produce up/down creasing for hinges, book covers and complex brochures, all in a single-pass.
- Cross/Partial Perforation Kit: Ideal for full and partial perforating along the width of the sheet. Can be used alone or with the rotary perforating kit to produce tear-off tickets and vouchers (see image below).
- Narrow and Ultra Narrow Creasing Matrix Kits: Ideal for creasing various paper weights.
Item Specifications
- Speed:
- Up to 6,000 sheets per hour, half fold* (8.5” x 11.5”)
- Up to 7,500 sheets per hour, single crease only
- Sheet Size:
- Max: 27.6” x 15.2” (51” x 15.2” w/infeed extension table)
- Min: 8.3” x 3.7”
- Paper Thickness: Max: 0.0157” (400gsm) Min: 0.0035” (75gsm)
- Creases per Sheet: Up to 30
- Min. Repeat Crease Distance: 0.004”
- Programmable Jobs: Unlimited
- Max. Loading Capacity: Up to 7.9”
- Outfeed: Belt conveyor stacker, catch tray
- Dimensions: 84” L x 29” W x 55” H (118” L with infeed extension)
- Weight: 689 lbs.
- Power: 100-240VAC, 8-4A, 50/60 Hz
Demonstration Video
Formax Atlas C350 Automatic Creaser Folder
As shown here, without creasing, the folded ...
Formax presents the Atlas C350 Automatic Pile Feeding Creaser and Folder. When durability, power, and accuracy matter, the Atlas C350 auto-feed creaser folder meets the quality demands of high-volume digital finishing in today's print world. On-demand digital printing has become the standard for fast turnaround and short-run jobs. Finishing the piece properly for a professional, high-quality look is a key part of the process. When it comes to folding digitally printed pieces, creasing is essential to avoid cracking and tearing on the folded edges.
As shown here, without creasing, the folded piece is cracked and looks of poor quality, while the creased piece looks clean and professional. Accuracy, power, durability, and ease of use separate this auto-feeding creaser folder from all the rest. The Atlas C350 features a powerful air suction pile feeder with leading-edge tracking registration and multiple sensors for accurate feeding of paper weights up to 400 gsm. Automatic adjustments and a state-of-the-art intuitive 7-inch color touchscreen ensure quick and easy setup.
Let's take a closer look at how the C350 creaser folder works. To begin, load the printed pieces onto the feeder and set the feeding guides. The feed table extension comes standard and can be pulled out to accommodate sheets up to 15 inches wide by 51 inches long. With the sheets in position, it's time to enter the creasing configuration. The Atlas C350 is pre-programmed with nine popular crease types along with settings for perfect bound book covers. In addition, users can program and save an unlimited number of custom jobs.
Using the color touchscreen control panel, select the crease and/or fold type and paper size. The C350 will adjust the crease settings automatically. With the settings entered, press start. Sheets are processed consistently at speeds up to 7500 per hour. Multiple sensors monitor the infeed for variations and make adjustments on the fly for enhanced performance and accuracy. Switching between jobs is easy; simply select the new crease and/or fold type and press enter.
The C350's innovative dual creasing perforating modules make quick work of various applications in a single pass. The C350 can be set to crease and fold, crease only, perforate only, or cross perforate and crease in one pass. To provide accurate, seamless creasing and folding, the C350 utilizes a dynamic creasing matrix and patented flying knife folding technology designed to prevent marks and scratches on digitally printed media.
The heavy-duty creasing matrix utilizes a channel and anvil to create the crease, embossing the printed sheet and eliminating cracking of the folded edge. In addition, the creasing angle and pressure can be adjusted to accommodate different paper weights and types. The C350 features dual quick-release creasing perforating modules that allow for the option of up and down creasing or creasing and cross-perforating in a single pass.
The quick-release system requires no tools, which allows creasing and perforating matrices to be changed in seconds. The C350 has a two-in-one outfeed configuration with a fully automatic belt stacker for folded sheets and a catch tray capable of stacking creased sheets up to 35 inches long. With both outfeed options available at all times, users can easily switch between crease and fold jobs right from the control panel with no need to reconfigure the machine.
A rotary perforation kit is standard equipment, allowing for creasing, perforating, and folding in a single pass. The optional crease perforating blade kit can be used in combination with the rotary perforator to create brochures or coupons with tear-offs.
The Formax Atlas C350 is the most versatile and efficient creaser folder on the market, with the power, durability, accuracy, and easy setup and operation essential for today's digital print finishing.
