Foster On-A-Roll Lifter V-Tray Narrow Web - 61566
1525.5 NewCondition InStock

Foster On-A-Roll Lifter V-Tray Narrow Web - 61566

Part #: 61566
Brand: Foster
  • Roll Weight Capacity: 660lbs (300kg)
  • Lift Height: 47" H (120cm)
  • Max. Roll Width: 26" (66cm)
  • Max. Roll Diameter: 30" (76cm)
  • 2 Year Warranty / 5 Years on Cross Bars
  • Price Match Guarantee
  • Oversize / Truck shipping
  • Brand New
In Stock

$1,525.50

This Item Ships Via Truck
SWIPE FOR MORE IMAGES
  • 0
  • 1

Product Description

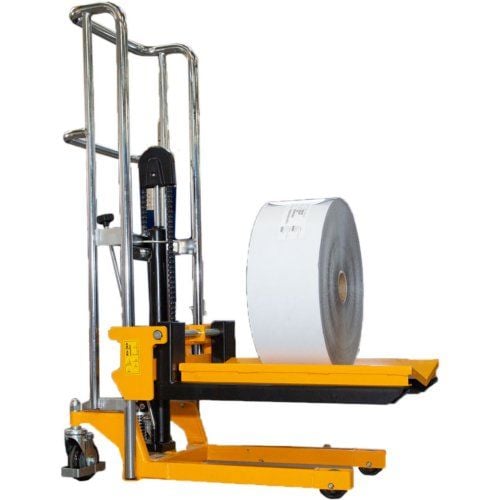

This Foster On-A-Roll Lifter V-Tray Narrow Web is a manually operated hydraulic lifter that provides a quick and safe solution for positioning and loading narrow web rolls. It is ideal for label printers and converters. It can easily lift rolls as heavy as 660 lbs. (300 kg) and diameters as great as 30" (76 cm). It increases safety and decreases the risk of handling damage to valuable roll media with minimal operator training. The V-Tray Narrow Web On-A-Roll Lifter can be used with these brands of flexo and digital narrow web presses and others: Bobst,Edale,Gallus,Mark Andy,MPS,Nilpeter,Omet, and RotaFlex.

Product Details

  • Material damage is reduced or eliminated when moving rolls
  • Reduced on-the-job injuries and enables workers to easily handle heavy rolls.
  • Heavy material rolls are handled quickly and easily
  • Cantilevered roll tray extends 6" over front casters so it won’t interfere with any obstructions on the press or floor.
  • V-Tray cradle design secures rolls with varying diameters.
  • 3" low profile front casters and frame fits underneath your press or converting line.
  • Manually operated hydraulic foot pump raises rolls to the optimal height with minimal effort.
  • Two heavy-duty rear swivel casters for maneuvering through tight spaces.
  • Rugged constructions ensures long lifter life.
  • Single-person operation saves labor and time.
  • 2-year warranty on hydraulics and media tray. 5-year warranty on cross bars.

Item Specifications

  • Roll Weight Capacity: 660lbs (300kg)
  • Lift Height: 47" H (120cm)
  • Max. Roll Width: 26" (66cm)
  • Max. Roll Diameter: 30" (76cm)
  • Overall Media Lifter Dimensions (W x D x H): 41"W x 23.25"D x 56"H (104 x 59 x 142 cm)
  • Media Lifter Weight: 205lbs (93kg)
  • Bottom Fork Clearance: 3.01" (7.7cm)
