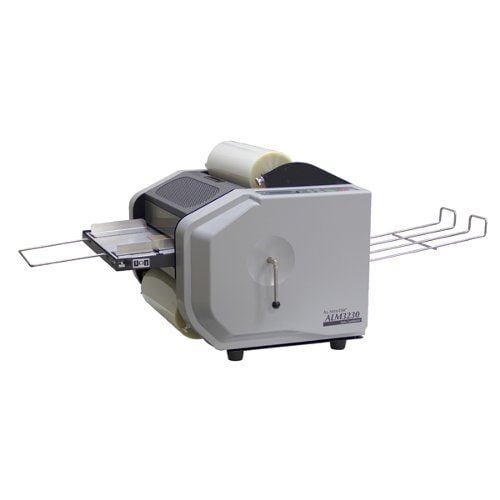

Fujipla ALM 3230 Desktop Automatic Feed Laminator with Integrated Trimmer and Accessories
$11,275.06
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- 12.6" thermal roll laminator
- Compatible with film up to 5mil thick
- Adjustable heat settings from 170°-270° F
- 40" per minute fixed speed
ProductDescription
Product Details
- Small Foot Print - less than 4 sq. ft.
- Table Top or optional stand with locking roller casters.
- 115 Volt, 15 amp service with economy mode.
- Ultra quick warm up of less than 5 minutes.
- Virtually Unattended Operation.
- Digital Sheets sizes: 13" x 19" ,12" x 18" ,11" x 17" ,8.5" x 11".
- Laminates copy paper up to 100lb cover stock.
- Automatic two side lamination or short one side work.
- Adjustable Automatic Flush or Sealed edge trim.
- 180 Day Manufacturer's Warranty (Extended Warranties Available)
Item Specifications
- Laminating Speed: Fixed speed at 40"/min.
- Temperature Range: 170-270°F
- Ultra Fast Warm-Up Time: Approximately 5 minutes
- Film Thickness: 1.5, 3, and 5mil
- Thickness of Objects: 20lb bond - 100lb cover
- Paper Feeding Capacity: 100 Sheets, Adjustable Paper Guide
- Applicable Sizes: Letter Paper Size 8 1/2" x 11", Tabloid Paper Size 11" x 17", Digital Paper Size 12" x 18", Digital Paper Size 13" x 19"
- Trimming Methods: (2 modes) Flush trim or edge seal for all 4 sides of the print
- Operation Panel: LCD display for start, stop, temperature, and trim settings, leading and trailing edge side cuts are adjustable
- Other Features: Laminated sheet counter, Film tension control, Roller gap lever, Paper thickness feeder adjustment lever
- Power Consumption: 900W
- Power Supply: AC 120V (60Hz)
- Compatible Supplies: Fujipla ALM Laminators Roll Film
- Compatible Accessories: Stand For Fujipla ALM 3230 Laminator
- Net Weight: Laminator 100 Lbs. Stand: 48.5 Lbs.

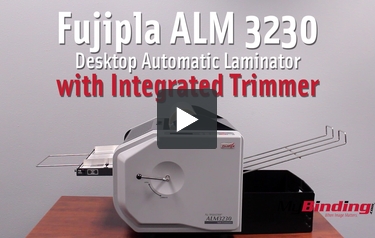

Demonstration Video
Fujipla ALM 3230 Overview Video
The huge advantage to this machine is how simple it is to get a fully laminated and trimmed project without doing any of the cutting yourself.
Before we set up the machine, I’m going to turn it on, and place the waste bin below the catch tray.
On the main display we see some different settings to adjust, such as the temperature, which is easily adjusted.
Other settings include setting the number of pages to run, setting a lamination margin or have it trim right to the edge of your project, and a ...
This is the Fujipla ALM3230 Desktop Automatic Feed Laminator with an Integrated Trimmer!
The huge advantage to this machine is how simple it is to get a fully laminated and trimmed project without doing any of the cutting yourself.
Before we set up the machine, I’m going to turn it on, and place the waste bin below the catch tray.
On the main display we see some different settings to adjust, such as the temperature, which is easily adjusted.
Other settings include setting the number of pages to run, setting a lamination margin or have it trim right to the edge of your project, and a count of total projects and how much film a roll has.
Before lamination, make sure to close the rollers to the lamination position.
With the back cover open, now you’ll have to make some manual adjustments to the trimmer. This position is where it will cut the edges—it can be set for margins, or even through the project.
You’ll see some common sizes labeled for a cut with a margin, or a cut that trims at the edge of the project.
On the left is also a manual feed control, and a manual cutting control.
Back to the front, adjust the edge guides on the feed table for your project size. Do this on both sides.
Next, on the inside you can set project thickness with this little tab you move up or down—the normal paper thickness is labeled as such.
Before jumping into your real project, we recommend doing a test run. Push the table down, and insert your pages.
You’ll see it laminate and trim automatically. Where now you can evaluate if the measurements are equal and you can make any changes accordingly.
You’ll see I simply ran a test page with a margin, and one that is cut to the edge of the project.
If you need a micro adjustment, this little wheel moves the feed table from side to side in small increments.
Now I’m ready for my real project! And I can run up to a stack of 200 pages in one go. Can you imagine running a project of 200 pages, and never having to manually cut one yourself? It’s a huge time saver!
It can be place on any table, or you can purchase it’s own stand with extra room for the trimmings, and it adds a level of portability!
And that is the Fujipla ALM3230 Desktop Automatic Feed Laminator with an Integrated Trimmer!
