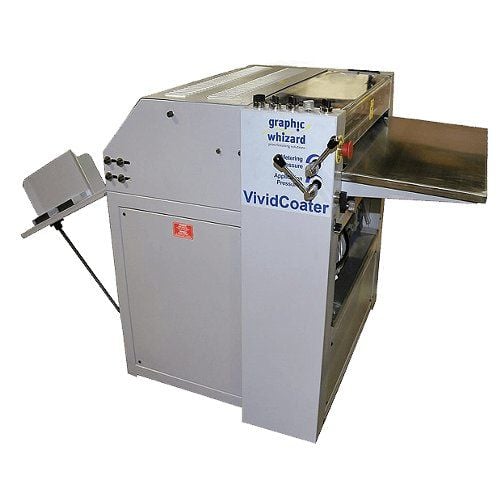

Graphic Whizard VividCoater XDC-530 Micro UV Coater Image 1

Graphic Whizard VividCoater XDC-530 Micro UV Coater

$32,722.93
pay /mo or Net30*
Brand: Graphic Whizard
Item# XDC-530
  • Low maintenance.
  • Small footprint (3’ x 3’).
  • Very low operating cost.
  • Recycles UV fluid to eliminate waste.

ProductDescription

With a 20.75” max width sheet size yet small footprint without sacrificing features like vacuum hold down and adjustable IR lamps, the XDC-530 Micro is Graphic’s most popular selling model. Add the low cost PT 330PF or high pile PT 520PF Pile Feeder to your configuration to automate your production for longer runs.

Product Details

  • Low maintenance.
  • Small footprint (3’ x 3’).
  • Very low operating cost.
  • Recycles UV fluid to eliminate waste.
  • IR lamp with adjustable intensity.
  • Coats stock from 128 – 450 gsm.
  • Variable speed, up to 2700 sheets per hour.
  • Polished chrome metering and bottom rollers.
  • Stainless steel doctor/wiper blade.
  • Vacuum cooled UV lamp.
  • Forward/Reverse controls for easy clean up.
  • Easy set handles for pressure control.
  • 1 Year Mechanical Parts and Electronics.

Item Specifications

  • Electrical: 208-240V 1 Phase 60Hz/30A
  • Speed: Variable speed, up to 2,700 sheets per hour
  • Maximum Stock Size: 20.75″ W (53 cm)
  • Maximum Stock Weight: 157-450 gsm*
  • SHIPPING DIMENSIONS (L X W X H): 40" X 35" X 46"
  • SHIPPING WEIGHT: 540 LBS.
  • Dimensions:
    • Length: 29.25” (74 cm)
    • Width: 34.25” (87 cm)
    • Height: 34.25” (87 cm)
  • Weight: 420 lbs (191 kg)
  • Touch Screen: No
  • Bulb Type: UV and IR (2 bulbs)
  • Roller Application: 3 roller system
  • Vacuum Hold Down: Yes
  • Roller and Doctor Blade Settings: Easy Set Levers
  • Removable Roller Design: No
  • Pump Style: Single Peristalic
  • Warranty: 1 Year Mechanical Parts and Electronics
