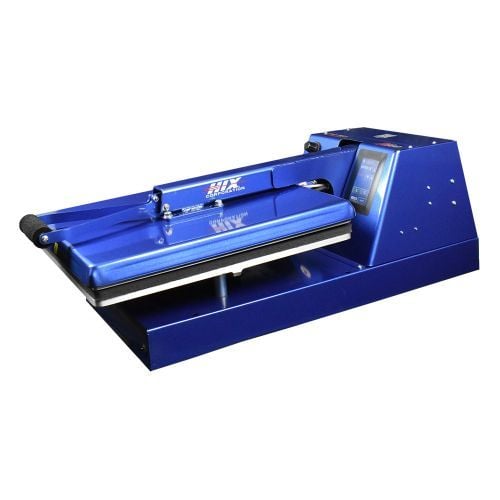

HIX N-880 (120V) Automatic 20" Clamshell Press
3960.00
NewCondition
InStock
HIX N-880 (120V) Automatic 20" Clamshell Press
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| HIX N-880 (220V) Automatic 20" Clamshell Press | 04HIXN880220V | $3,995.00
|
|||
| HIX 15"x15" PTFE Transfer Sheet | 04HIXTFSHT1515 | $19.00
|
|||
| HIX 16"x20" PTFE Transfer Sheet | 04HIXTFSHT1620 | $21.00
|
|||
| HIX 16"x20" - 1/2" Thick Premier Series Pad Replacement Kit (HT-600/S-650/N-880/SM-20) | 04HIXREPKIT1620 | $190.00
|
|||
| HIX 16"x20" - 1/2" Thick EVO Series Pad Replacement Kit (HT-600/S-650/N-880/SM-20) | 04HIXREPKITE1620 | $352.00
|
|||
| HIX EZ Glide Shuttle (for N-880 only) | 04HIXN880EZGS | $1,130.00
|
|||
| HIX Air Filter (fits N-680 and N-880) | 04HIXAIRFILTER | $84.00
|
Product Description
The N-880 (120v USP) - Automatic Air-operated 16"x 20" platen maximises productivity while minimising operator fatigue. It is made with heavy duty frame, a long-lasting air pneumatic air cylinder lift system, a large air valve for faster clamping, and bushing in keys for extra durability. All of this makes this machine more suited to high-volume work. It comes with a 16”x20” heat platen that can accommodate ¾” thick substrates. Other features include a digital timer that can be adjusted to 999 seconds and a calibrated digital temperature control that can reach temperatures of up to 450 degrees Fahrenheit. Because it is air operated, you can set the amount of pressure on the machine and it will adjust to the product automatically regardless of the thickness of the substrate.
Product Details
- Easy integrated digital time and temperature settings - Touch-screen controller allows simple dialing in of time and temperature. From the touch-screen controller, preset selections of temperature-time combinations can be easily programmed into the machine.
- The current pressure is displayed on the touch-screen display each time the press closes. The pressure is easily changed with the black pressure dial on the face of the control housing (clockwise for more, counter-clockwise for less). There are nine settings: 0-3 for light pressure, 4-6 for medium, and 7-9 for heavy. This is a great feature if you need to press a lot of different thicknesses.
- Tilting (floating) lower platen - The bottom platen tilts up toward the upper platen as the heat press closes. This equalizes pressure even when pressing thick items, like quarter-inch thick 8×10" ceramic tile.
- Top Pressure Plate - The handle attaches to a 4"x5" pressure plate on the top platen instead of a single screw going into the top platen. This provides more even pressure on the outside edges of the press (think of it as pushing down with your entire hand, versus just your thumb).
- Certified electrically safe (ETL) - The “Electrical Testing Laboratory" seal means HIX presses have passed a rigid and very demanding independent testing process, and have been certified electrically safe.
- 100% Made in the USA - HIX has its own 110,000 sq ft manufacturing facility with its very own fully integrated aluminum foundry, CNC mill operation, welding, metal forming, wiring, fabrication, assembly, and packaging departments.
- A one-year general manufacturer's warranty and lifetime manufacturer's warranty on the heater element.
Item Specifications
- Dimensions: W 21" x H 15" x D 41"
- Heat Platen Size: 16" x 20" (41 x 51 cm)
- Weight Shipping: 136 lbs. (61 kg)
- Compatible Accessories:
- Warranty: Lifetime Manufacturer's Warranty on the heater element / 1 Year Manufacturer's Warranty General
