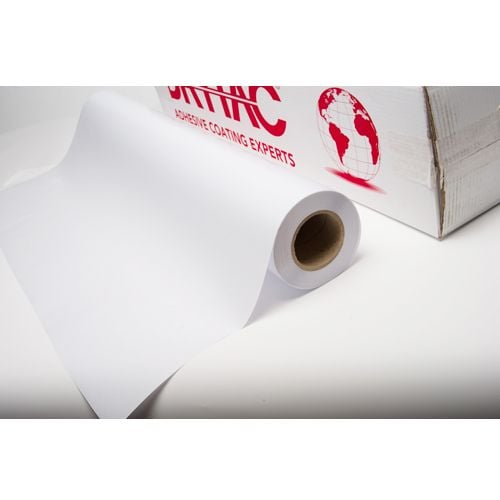

Interlam Lustre UV 4.0mil PS Overlaminating Film
- Monomeric soft calendared PVC laminating film
- 4.0 mil thick
- Low glare, lustre finish
- Ideal for Indoor Signage, Outdoor Graphics
- Ships Free Over $75
Starting At
$120.09
Choose Product Below
SWIPE FOR MORE IMAGES
- 0
- 1
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| Interlam Pro Lustre UV 4mil 25.5" x 15' PS Overlaminating Film | ILL25015 | $120.09
|
|||
| Interlam Pro Lustre UV 4mil 54" x 150' PS Overlaminating Film | ILL54150 | $324.89
|
|||
| Interlam Pro Lustre UV 4mil 61" x 150' PS Overlaminating Film | ILL61150 | $350.19
|
Product Description
This Interlam Pro Lustre UV Overlaminating Film is a flexible monomeric soft calendared PVC laminating film with a low glare lustre finish, coated on one side with a pressure sensitive, aqueous acrylic adhesive that prevents silvering and produces a strong bond to UV inks as well as latex and other ink technologies. The lustre finish of Interlam Pro Lustre film reduces undesirable surface glare, and provides UV protection for outdoor graphics. Its low sheen without loss of contrast or sharpness makes this film effective for high-volume photographic prints. The Interlam Pro Lustre UV Overlaminate is perfect for POP displays, architectural renderings, promotional displays, and event signage.
Product Details
- Film Width: 38" - 61"
- Film Length: 150' - 328'
- Finish: Lustre
- Base Film: 3.0 mil PVC (vinyl)
- Adhesive layer: 1.0 mil aqueous acrylic
- Application Temperature: Room Temperature - 120 F
- Release Liner: 2 Side PE Coated, 1 Side Siliconized Kraft Paper
- Outdoor Durability: At least 3 years
- Heat Resistance Range: 158 F - 203 F
Product Reviews
Write Your Own Review
Resources
Specifications
| Part Number | Width | Length | Thickness | Finish |
| ILL51328 | 38" | 328' | 3 mil | Luster |
| ILL38150 | 38" | 150' | 4 mil | Luster |
| ILL51300 | 51" | 300' | 4 mil | Luster |
| ILL38164 | 38" | 164' | 3 mil | Luster |
| ILL54150 | 54" | 150' | 5 mil | Luster |
| 61" | 150'' | 4 mil | Luster | |
| ILL61164 | 61" | 164' | 3 mil | Luster |
Technical Data
Interlam Pro Lustre is a 3 mil (75µ) monomeric soft calendared PVC laminating film with a lustre finish, coated on one side with a pressure sensitive, aqueous acrylic adhesive that is protected by a bleached Kraft release paper coated on both sides with PE and siliconized on the release side.
Typical Applications
Product Structure
Physical Characteristics
Process Settings
Typical Applications
- Low sheen without loss of contrast or sharpness makes Interlam Pro Lustre eff ective for a wide range of applications.
- Ideal for POP displays, architectural renderings, promotional displays, and event signage.
Product Structure
| Film | Lustre Monomeric Soft Calendared PVC |
|---|---|
| Adhesive | Acrylic (Pressure Sensitive) |
| Release Liner | 2 Side PE Coated, 1 Side Siliconized Kraft |
Physical Characteristics
| Film Thickness | 3 mil (75µ) |
|---|---|
| Adhesive Layer | 1 mil (25µ) |
| Film/Adhesive Ratio | 3:1 |
| UV Protection Factor | Film contains UV stabilizers, which prevent film degradation and provide UV protection to the underlying image |
| Outdoor Durability | 3 years |
| Service Temperature Range | -13°F to 302°F (-25°C to 150°C) |
| Peel Strength (20 min, FTM1) | 11 N/25mm |
| Shelf Life | Use within 1 year after opening original box |
| Storage Conditions | 59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity |
Process Settings
| Equipment Type | Temperature | Speed |
|---|---|---|
| Roller Laminator | Room temperature to 104°F (40°C) | 1 ft to 8 ft (0.3m to 2.5m) per minute |
| Press | Not recommended | |
