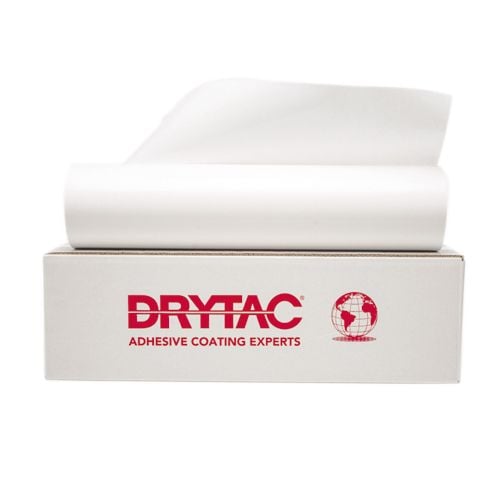

MHA Multi Heat Activated Mounting Adhesive
357.52 655.94 4

MHA Multi Heat Activated Mounting Adhesive

Brand: Drytac
  • 5 popular roll widths
  • 328' roll length
  • Moisture stable release paper
  • Activates between 185 - 220 degrees F
Starting At

$357.52

Choose Product Below
SWIPE FOR MORE IMAGES
  • 0
  • 1

Product Description

This MHA (Multi-Heat Adhesive) is an economical, heat activated mounting adhesive with a moisture-stable release liner. MHA's initial tack is very low, making it easy to apply. This feature allows most prints to be repositioned on MHA pre-coated boards without damage. Once satisfied with the alignment, process the graphic and board through a heated roll laminator (185 F - 220 F / 85 C - 140 C) for a permanent bond. The MHA's forgiving nature has made it a popular product with photographers for thinner "bond papers" such as graphic renderings, drawings, blueprints, color copies, courtroom displays, etc. Although MHA's initial tack is low, the bond insitantly becomes permanent once processed through a heated roll laminator. It is therefor suitable for flexible and rollable substrates such as expanded PVC graphic materials (e.g. Sintra).

Product Details

  • Film Width: 25.5" - 328
  • Film Length: 328'
  • Core Size: 3"
  • Filmic Carrier: None
  • Adhesive Bond: Permanent:
  • Initial Tack: Very Low
  • Application Speed: 1' - 8' (0.3m - 2.5m) per minute
  • Adhesive Base: Solvent acrylic heat-activated
  • App. Temperature: 185 F - 220 F
  • Release Liner: Moisture Stable Paper (100 gsm)

Item Specifications

  • When Mounting thicker prints/ output it is recommended to increase the temperature of the heated laminator rollers to a minimum of 200 F while reducing laminator feed speed to ensure sufficient heat permeates through the print image, board and (optional) overlaminating film to activate the MHA adhesive
  • We do not recommend using the laminator's idler bar when applying MHA
  • MHA only works on heated roller laminators, not hot-shoe style laminators

Product Reviews

Write Your Own Review
You're reviewing:MHA Multi Heat Activated Mounting Adhesive
Your Rating

Specifications

Part NumberRoll WidthRoll LengthCore SizeAdhesive Base
MHA2532825.5"328'3"Solvent acrylic heat-activated
MHA3832838"328'3"Solvent acrylic heat-activated
MHA4132841"328'3"Solvent acrylic heat-activated
MHA4332843"328'3"Solvent acrylic heat-activated
MHA5132851"328'3"Solvent acrylic heat-activated

Technical Data

MHA (Multi-Heat Adhesive) is a heat activated, solvent acrylic mounting adhesive that is protected by a moisture stable bleached Kraft diff erential release paper coated on both sides with siliconized PE. This carrier-free adhesive off ers a superior bond to fl exible and rollable substrates, such as Expanded PVC (e.g. Sintra™), and is an excellent solution when paired with Drytac’s MediaShield and MHL laminates. It has a low initial tack before heat is applied that allows it to be re-positioned, and it can be heated multiple times to activate the adhesive. After activation is complete, a strong bond is formed. MHA can be die cut and is considered self-trimming since it is carrier-free.

Typical Applications
  • Recommended for mounting of canvas, where the back of the canvas and the substrate to be used are both coated with MHA and married together for a very strong bond.
  • Ideal for mounting images on MDF to create plaques; can be trimmed and foiled without the images lifting.
  • Suitable for manufacturing processes to create a strong bond between two substrates.

Product Structure

AdhesiveSolvent Acrylic (Heat Activated)
Release Paper2 Side PE Coated Bleached Kraft Differential Release Paper (Moisture Stable)


Physical Characteristics

Film ThicknessNot Applicable (no carrier)
Adhesive Layer1 mil (25µ)
Film/Adhesive RatioNot Applicable
UV Protection FactorNot Applicable
Outdoor Durability6 months will only show inconsequential changes in properties of the product
Service Temperature Range-4°F to 175°F (-20°C to 79°C)
Shelf LifeUse within 1 year after opening original box
Storage Conditions59°F to 72°F (15°C to 22°C); 50 - 55% Relative Humidity


Process Settings

Equipment TypeTemperatureDwell Time
Roller Laminator185°F to 220°F (85°C to 104°C)1 ft to 8 ft (0.3m to 2.5m) per minute
Press195°F (91°C)3 minutes
