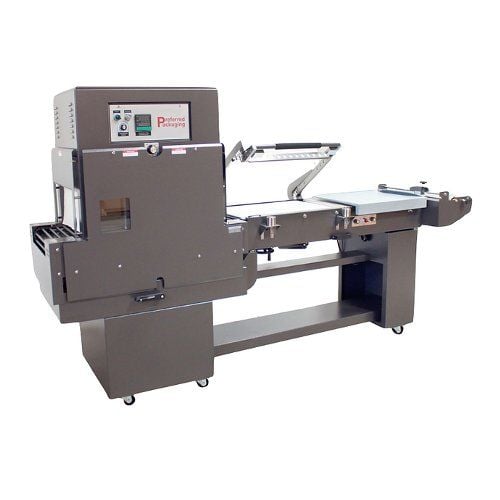

Preferred Pack PP1622-MKAC Combo L Bar & Shrink Tunnel (Push Button-Air Operated)
11100.00 NewCondition InStock

Preferred Pack PP1622-MKAC Combo L Bar & Shrink Tunnel (Push Button-Air Operated)

Part #: 04PP1622MKAC
  • Seal Size: 16"W x 22"L
  • Tunnel Opening (L x W x H): 28" x 18" x 8"
  • Max Film Width: 20"
  • Product Speed: 10 to 12 PPM
Please Note: Call 1-800-944-4573 for Your Special Price
  • Price Match Guarantee
  • Oversize / Truck shipping

$11,100.00

Buy Now, Pay Later
Starting at $1,027/month
Learn More >

This Item Ships Via Truck

SWIPE FOR MORE IMAGES
  • 0
  • 1
  • 2
  • 3
video

Product Description

For increased packaging efficiency, this bundle coupled the semi automatic PP1622-MKAC Combo L Bar & Shrink Tunnel. This system creates a smooth and seamless workflow for unmatched productivity. TPP1622-MKAC Combo L Bar is a semi-automatic pneumatic system that works with an air compressor that significantly speeds up the sealing process. The sealing bar can be set to open and close at specific intervals with automatic cycle timing or operated as a push button seal system. Adding to packing efficiency and sorting is the powered takeaway conveyor that moves products from the sealing area to the exit. The sealer takes advantage of the Teflon coated Micro Knife Seal System which offers a stronger and more durable sealing blade that can deliver tens of thousands of seals. The shrink tunnel is designed to deliver outstanding results with the lowest electricity consumption. Heat-shrinking operation is adjusted by setting the tunnel temperature and speed and can work with all types of heat-shrinking films.

Product Details

Standard L' Sealer Features:

  • "Micro-Knife" Band Ribbon.
  • Power Belted Discharge Conveyor.
  • Dual Manet Clamping.
  • Pin Perf. Hole Punch.
  • Variable Dwell/Seal Time.
  • Variable Conveyor Time.
  • Stainless Steel Compensators.
  • Seal Size is 16"W x 22"L.
  • Seal Head Return Cylinder.
  • Stainless Steel Film Clamps.
  • Locking Casters.
  • Linear Bearings Allow Movement Forward or Backward.
  • Easy Load Film Cradle with Brake.

Standard Shrink Tunnel Features:

  • Fully Re-Circulating Air Chamber.
  • Live or Dead Roller Rod Conveyor.
  • Digital Temperature Control.
  • Adjustable Air Velocity Control.
  • State-of-the-art AC Variable Speed Drive.
  • Chromed Conveyor Rollers and Shafts (No Rust).
  • Automatic Tunnel Cool Down with Shut Off.
  • Sealed Bearings on Drive and Idler Shafts.
  • Chamber Size 18"W x 8"H x 28"L.
  • Quietest Tunnel on the Market.
  • Heats Up to 300 Degree F in Less than 10 minutes.
  • Thermal Overload Protection on All Motors.
  • Locking Casters with Leveling Screws.
  • Anti-jam Safety Feature on Conveyor.
  • Easily Adjustable Crank Handle Allows for Tunnel Height Adjustment.

Item Specifications

  • Dimensions (L x W x H): 103" x 32" x 62"
  • Seal Size: 16"W x 22"L
  • Tunnel Opening (L x W x H): 28" x 18" x 8"
  • Max Film Width: 20"
  • Product Speed: 10-20 PPM
  • Power: 220V 45A 1 Phase

Demonstration Video

Transcript: PP1622MK & PP1808-28 System.
PP1622MK & PP1808-28 System.
