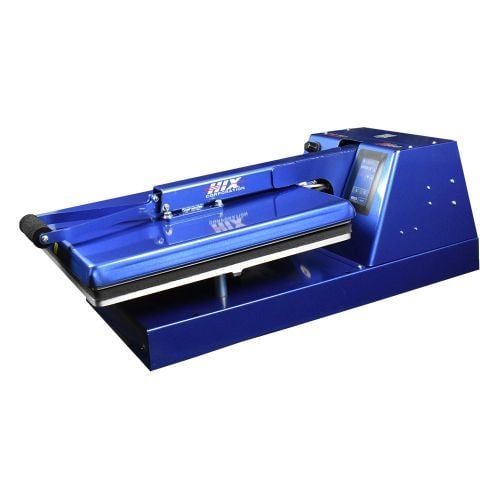

HIX S-450 Auto Open 15"x 15" Platen and Splitter Stand & Accessories
- Easy integrated digital time and temperature settings
- The current pressure is displayed on the touch-screen display each time the press closes.
- Tilting (floating) lower platen
- Top Pressure Plate
- Oversize / Truck shipping
Starting At
$1,980.00
Choose Product Below
SWIPE FOR MORE IMAGES
- 0
- 1
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| HIX S-450 Digital Auto-Open 15" Clamshell Press | 04HIXS450 | $1,980.00
|
|||
| HIX Interchangeable Padded 13 x 13 Lower Platen (HT-400/600 and S-450/650) | 04HIXLWRPLA1313 | $242.00
|
|||
| HIX Interchangeable Padded 15 x 15 Lower Platen (HT-400/600 and S-450/650) | 04HIXLWRPLA1515 | $265.00
|
|||
| HIX Interchangeable Padded 16 x 20 Lower Platen (HT-400/600 and S-450/650) | 04HIXLWRPLA1620 | $375.00
|
|||
| HIX Interchangeable Padded 4-Position Lower Platen (two-6x5" & two-3.5x3.5" areas) (HT-400/600 and S-450/650) | 04HIXLWRPLA4POS | $242.00
|
|||
| HIX 15"x15" - 3/8" Thick Premier Series Pad Replacement Kit (HT-400/S-450/N-680) | 04HIXREPKIT1515 | $136.50
|
|||
| HIX 15"x15" - 3/8" Thick EVO Series Pad Replacement Kit (HT-400/S-450/N-680) | 04HIXREPKITE1515 | $189.00
|
|||
| HIX 15"x15" PTFE Transfer Sheet | 04HIXTFSHT1515 | $19.00
|
|||
| HIX 16"x20" PTFE Transfer Sheet | 04HIXTFSHT1620 | $21.00
|
|||
| HIX Optional Splitter Stand - Electric Blue (HT-400E) | 04HIXSPLITSTAND | $145.00
|
Product Description
Close the lid and walk away. Set up another job, or grab a soda. With the HIX S-450 Auto Release Heat Transfer machine, you have worry-free operation. When the job is finished, the clamshell lid pops open and stops the heat transfer process - but the upper platen stays hot and set to your pre-set temperature. It’s ready to work when you are! Hands-free opening saves time and effort, allowing the operator to apply more transfers in a shift with less effort than a traditional heat transfer press. Direct-To-Garment applications are also a large driving force in the success of the auto-open feature. This allows you the freedom of loading your printer while the last print is curing, eliminating any risk of scorching or compromising transfer quality due to overheating.
Product Details
- Easy integrated digital time and temperature settings - Touch-screen controller allows simple dialing in of time and temperature. From the touch-screen controller, preset selections of temperature-time combinations can be easily programmed into the machine.
- The current pressure is displayed on the touch-screen display each time the press closes. The pressure is easily changed by turning the silver knob at the top of the control housing (clockwise for more, counter-clockwise for less). There are nine settings on the display: 0-3 for light pressure, 4-6 for medium, and 7-9 for heavy pressure.
- Tilting (floating) lower platen - The bottom platen tilts up towards the upper platen as the heat press closes. This equalizes pressure, even when pressing thick items like a quarter-inch thick 8×10 ceramic tile.
- Top Pressure Plate - The handle attaches to a 4"x5" pressure plate on the top platen instead of a single screw going into the top platen. This provides more even pressure on the outside edges of the press (think of it as pushing down with your entire hand, versus just your thumb).
- Certified electrically safe (ETL) - The “Electrical Testing Laboratory" seal means HIX presses have passed a rigid and demanding independent testing process, and have been certified electrically safe.
- 100% Made in the USA - HIX has its own 110,000 sq ft manufacturing facility with its very own fully integrated aluminum foundry, CNC mill operation, welding, metal forming, wiring, fabrication, assembly, and packaging departments.
- A one-year general manufacturer's warranty and lifetime manufacturer's warranty on the heater element.
Item Specifications
- Dimensions: W 21" x H 23" x D 33"
- Heat Platen Size: 15" x 15" (38 x 38 cm)
- Weight Shipping: 84 lbs. (39 kg)
- Compatible Accessories:
- Interchangeable Padded 13 x 13 Lower Platen
- Interchangeable Padded 15 x 15 Lower Platen
- Interchangeable Padded 16 x 20 Lower Platen
- Interchangeable Padded 4-Position Lower Platen (two-6x5" & two-3.5x3.5" areas)
- 15" x 15" - 3/8" Thick Premier Series Pad Replacement Kit
- 15" x 15" - 3/8" Thick EVO Series Pad Replacement Kit
- 15" x 15" PTFE Transfer Sheet
- 16" x 20" PTFE Transfer Sheet
- Optional Splitter Stand - Electric Blue
- Warranty: Lifetime Manufacturer's Warranty on the heater element / 1 Year Manufacturer's Warranty General
- Old Part Number:MY04HIXS450P
