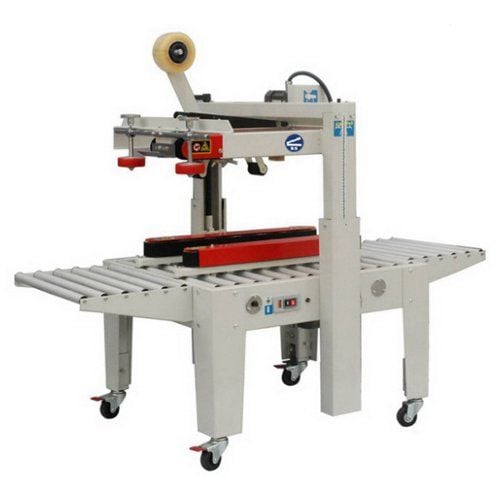

SealerSales CS-5050B Semi-Automatic Carton Sealer (3 Sides Driving)
Our CS-Series of carton sealers are operator fed and designed for heavy duty applications. These machines are reliable, cost-effective and durable providing savings to your production process. More importantly, these machines provide a professional looking seal.
The CS-5050B Semi-Automatic Uniform Carton Sealer with Easy Manual Carton Size Adjustment has a 4-belt design (2 side and 2 top). The machine comes complete with infeed/exit conveyors, casters, power cord, and plug.
The operator simply folds the top flats of the corrugated carton and feeds it into the machine. The CS-5050B applies a single tape to both the top and bottom of the case simultaneously. The CS-5050B can be easily adjusted in only seconds to process a different size carton. Excellent for heavier boxes.
- Adjustable Height of Table.
- Heavy Duty Frame.
- Manually Adjust Height and Width of Machine For Each Box Size.
- Suitable for Heavier Cartons.
- Operator Feends and Folds Flaps Into Machine.
- Side Pressure Rollers to Close Box Top.
- 4 Belt Design: 2 Side, 1 Top and 1 Botton Drive Belts for Positive Feed.
- Infeed / Exit Conveyors.
- Optional Features:
- 3" (72mm) Taper Heads
- Stainless Steel Frame
- Carton Size:
- Length: 6" to Infinite
- Width: 5.1" Min to 19.7" Max
- Height: 3.9" Min to 19.7" Max
- Machine Size: 69"L x 32"W x (38"-63")H
- Machine Speed: 65.6ft/Min Up to 15 Cartons Per Minute (Production Rate Depends on Carton Size and Operator Dexterity)
- Electrical: 110V, 1 Phase, 10 AMP
- Weight: 337 lbs.
- Shipping Weight: 425 lbs.
- Max Box Weight: 66 lbs.
- Tape Head Specs: 2" (48mm) Wide - 1000 Yard or 1500 Yard Rolls
- Assembly Required: Yes
- Warranty: 6 Months Manufacturer Warranty
