Suitable Height of Bottles: 40-300mm (1.57" - 11.8")
Suitable for containers such as plastic bottles, ABS, PE (HDPE, LDPE), PET, PP, PS, or PVC
Capacity: 3-10m/min (393 inches/min)
ProductDescription

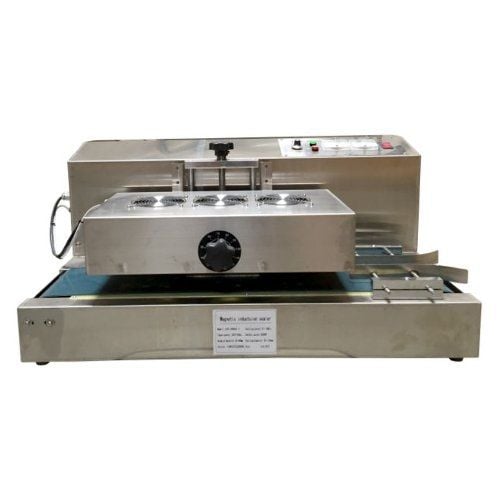

Seal an aluminum laminated liner to the top of plastic containers with this SealerSales LGYF-2000AX-II Table-Style Continuous Induction Sealer. This sealer is suitable for containers such as plastic bottles, ABS, PE (HDPE, LDPE), PET, PP, PS, or PVC. The LGYF-2000AX-II has a sealing diameter between 1.96" to 5.12", and can accommodate 1.57"-11.8" high bottles. Create tamper proof product and protect product from outside elements with this SealerSales LGYF-2000AX-II Table-Style Continuous Induction Sealer.
Product Details
Easy to operate - minimal operator training.
Fast warm up time.
Forced air cooling system.
Stainless steel.
Adjustable speed on conveyor (up to 393 inches/minute).
Create Tamper Proof Product.
Protect Product from outside elements.
Extend Product shelf life.
Seals product aroma.
No product leakage.
Create a professional looking package.
Item Specifications
Voltage: 220V/50Hz
Amps: <10A
Power: =1500W
Operating Frequency: 75-85KHz
Capacity: 3-10m/min (393 inches/min)
Sealing Diameter: 50-130mm (1.96" - 5.12")
Suitable Height of Bottles: 40-300mm (1.57" - 11.8")
Conveyor Bearing Load: <20Kg (44-lbs)
Dimensions: 44" x 24" x 16"
Weight: 12LBS
Demonstration Video

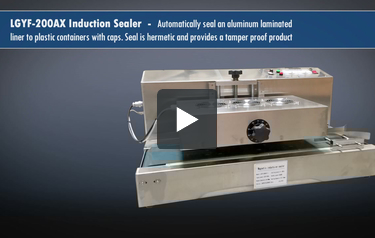

LGYF-200AX Induction Sealer Features
Transcript :
LGYF-200AX Induction Sealer – Automatically seal an aluminum laminated liner to plastic containers with caps. Seal is hermetic and provides a tamper proof product. Features. Easy to operate – minimal operator training. Fast warm up time. Forced air cooling system. Stainless steel. Adjustable speed on conveyor (up to 472 inches/minute). Voltage is 220V; facilities with only 110V will need and external transformer (not included). Turn on the power switch to start cooling fan. Allow cooling fan to run for 5-10 seconds before turning on the seal switch. Adjust knob on front of machine for the seal ...
LGYF-200AX Induction Sealer – Automatically seal an aluminum laminated liner to plastic containers with caps. Seal is hermetic and provides a tamper proof product. Features. Easy to operate – minimal operator training. Fast warm up time. Forced air cooling system. Stainless steel. Adjustable speed on conveyor (up to 472 inches/minute). Voltage is 220V; facilities with only 110V will need and external transformer (not included). Turn on the power switch to start cooling fan. Allow cooling fan to run for 5-10 seconds before turning on the seal switch. Adjust knob on front of machine for the sealing diameter of the cap. Adjust the knob for the height of the bottle. Height of the sealing head should be 1-3mm above the top of the bottle. Place bottles on the conveyor; bottles will exit the conveyor with a hermetic seal. Remider: This induction sealer requires 220V voltage. Operators in the United States with only 110V facilities must purchase an external transformer which is not included.
