Sealing Width: Standard - 3mm seal w/ electric cut off (Option - 6mm)
Chamber Depth: 5" + 4"
ProductDescription

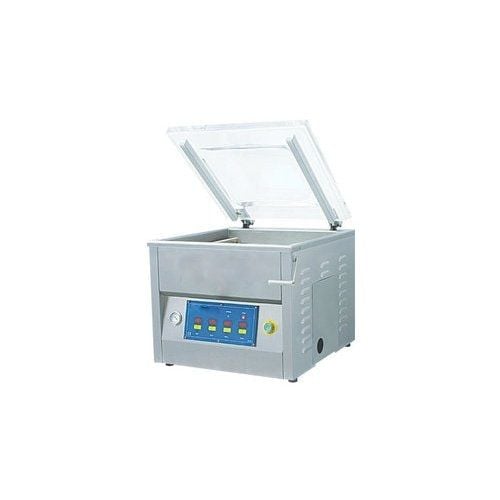

This SealerSales TC-420LR 17" Tabletop Chamber Vacuum Sealer is a stainless steel vacuum chamber machine ideal for sealing vacuum pouches used in the pharmaceutical, food, or electronic industries. It has a 16.9" seal length (two seal bars - left and right), and a 3mm seal width with electric cut off. The unit does not need an external compressor for operation. Simply place vacuum pouch into chamber with the open edge across the sealing bar. Close the lid to start the cycle and the lid will automatically open when cycle is completed. Vacuum time ranges from 10-30 seconds. Optional features are available including, but not limited to: digital control panel, pump size, voltage, gas flush, soft air, custom chamber size and computerized water resistant control panel. This SealerSales TC-420LR 17" Tabletop Chamber Vacuum Sealer is recommended for heavy duty applications (all day continuous packaging).
Product Details
Perfect for heavy duty applications.
Stainless steel construction.
Durable aluminum steel bar.
Acrylic plastic lid.
Busch vacuum pump.
Seal bar: Two seal bars (left and right).
Seal width: 3mm with electric cut off (6mm by special request).
Custom features available: Gas flush, sensor control, bi-active sealing, 220V.
ETL, UL, NSF, CE, and CSA certified.
Ships via LTL Freight only.
Item Specifications
Power Suppply: 110V / 1Ph / 60Hz / 16AMP
Vacuum Pump Capacity: 21m³/h (1-1/4HP/1Kw)
Sealing Length:16.9" x 2"
Sealing Width: Standard - 3mm seal w/ electric cut off (Option - 6mm)
Chamber Depth: 5" + 4"
Vacuum Chamber (W x L): 19.8" x 19.2"
Dimensions: 20" x 21" x 21"
Weight: 220lbs
Demonstration Video
Sealer Sales TC-Series Vacuum Sealer Chamber - The Best Little Vacuum That Could
Transcript :
TC-SERIES VACUUM CHAMBER. The Best Little Vacuum Chamber That Could. Features: compact; easily fits most space; stainless steel construction; durable aluminum steel bar; acrylic plastic lid; pump manufactured and designed in Italy (TC-420 series-Busch pump); custom features available – gas flush, sensor control, 220V; ETL, UL, NSF, CE, and CSA Certified. Turn power on. Set the vacuum, gas (if available), seal and cool settings. Please note: cooling settings must be equal to or greater than the seal settings. Place your item to be vacuumed in the chamber. Bring the lid down and the cycle will a ...
TC-SERIES VACUUM CHAMBER. The Best Little Vacuum Chamber That Could. Features: compact; easily fits most space; stainless steel construction; durable aluminum steel bar; acrylic plastic lid; pump manufactured and designed in Italy (TC-420 series-Busch pump); custom features available – gas flush, sensor control, 220V; ETL, UL, NSF, CE, and CSA Certified. Turn power on. Set the vacuum, gas (if available), seal and cool settings. Please note: cooling settings must be equal to or greater than the seal settings. Place your item to be vacuumed in the chamber. Bring the lid down and the cycle will automatically begin. Vacuum Cycle – The standard cycle for this compact vacuum sealer is about 30 seconds. There is also a vacuum gauge which indicates the amount of vacuum. Seal/Cool Cycle – The vacuum sealer will go through the sealing & cooling process and li will automatically open when completed. Product is tightly sealed; producing a nice two line seal.
