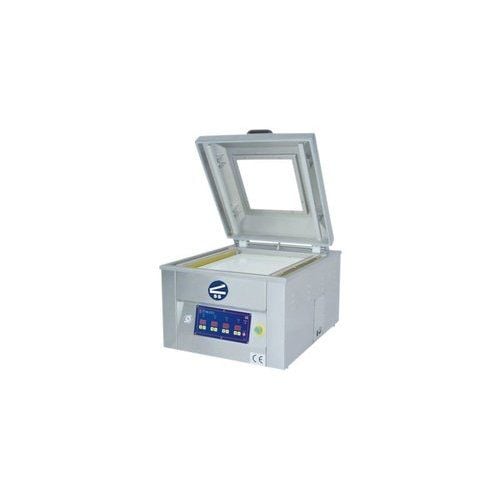

This SealerSales TC-520F 21" Tabletop Chamber Vacuum Sealer is a stainless steel vacuum chamber machine ideal for sealing vacuum pouches used in the pharmaceutical, food, or electronic industries. It has a 21.3" seal length, and a 3mm seal width with electric cut off. With the option of basic digital or fully programmable controls, you can decide what will best suit your needs. Custom features include: PNC-01 microprocessor control, soft air, bi-active sealing, gas flush system, twin beam sealing, 220V.
Product Details
PD-01 basic digital control panel.
Stainless steel construction.
Clear see-through lid.
Water resistant electrical box (IP-56).
Bladder activated sealing.
Air assist Sealing.
6mm Seal wire or electric cut-off seal bar.
Busch vacuum pump.
Seal bar: Front only.
Custom features include: PNC-01 microprocessor control, soft air, bi-active sealing, gas flush system, twin beam sealing, 220V.
UL, CSA & NSF Approved.
Ships via LTL Freight only.
Item Specifications
Power Suppply: 110V / 1Ph / 60Hz / 15AMP
Vacuum Pump Capacity: 20m³/h (1-1/4HP/0.75Kw)
Seal Bar Length: 21.3" / 540MM
Distance Between Seal Bars: 21.3"
Sealing Width:3mm seal w/ electric cut off
Chamber Size: 7.9"
Chamber Depth: 19.3"
Dimensions: 24" x 30" x 22"
Weight: 280lbs
Demonstration Video
Sealer Sales TC-Series Vacuum Sealer Chamber - The Best Little Vacuum That Could
Transcript :
TC-SERIES VACUUM CHAMBER. The Best Little Vacuum Chamber That Could. Features: compact; easily fits most space; stainless steel construction; durable aluminum steel bar; acrylic plastic lid; pump manufactured and designed in Italy (TC-420 series-Busch pump); custom features available – gas flush, sensor control, 220V; ETL, UL, NSF, CE, and CSA Certified. Turn power on. Set the vacuum, gas (if available), seal and cool settings. Please note: cooling settings must be equal to or greater than the seal settings. Place your item to be vacuumed in the chamber. Bring the lid down and the cycle will a ...
TC-SERIES VACUUM CHAMBER. The Best Little Vacuum Chamber That Could. Features: compact; easily fits most space; stainless steel construction; durable aluminum steel bar; acrylic plastic lid; pump manufactured and designed in Italy (TC-420 series-Busch pump); custom features available – gas flush, sensor control, 220V; ETL, UL, NSF, CE, and CSA Certified. Turn power on. Set the vacuum, gas (if available), seal and cool settings. Please note: cooling settings must be equal to or greater than the seal settings. Place your item to be vacuumed in the chamber. Bring the lid down and the cycle will automatically begin. Vacuum Cycle – The standard cycle for this compact vacuum sealer is about 30 seconds. There is also a vacuum gauge which indicates the amount of vacuum. Seal/Cool Cycle – The vacuum sealer will go through the sealing & cooling process and li will automatically open when completed. Product is tightly sealed; producing a nice two line seal.
