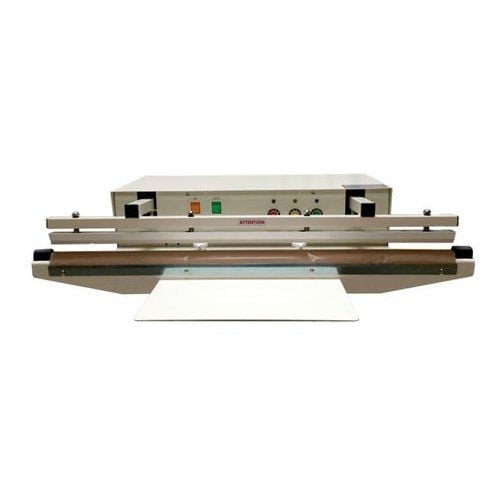

SealerSales W-755AA 30" Automatic Double Electromagnetic Impulse Sealer
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- Seal Length: 30" / 750mm
- Seal Width: 5mm
- Equipped with two electromagnets to ensure stable pressure for the extra-wide seal bars
- Longer seal lengths for specialized sealing needs.
ProductDescription
Product Details
- Longer seal lengths for specialized sealing needs.
- Automatic impulse sealing with precise electronic control.
- Dual mode operation: automatic or manual.
- Foot switch allows both hands to be free.
- 3 separate control settings for sealing time, recycle time, and congealing time to produce consistent seals.
- Includes electric foot switch and worktable.
- Equipped with two electromagnets to ensure stable pressure for the extra-wide seal bars.
- Special orders units w/ exception of W-755AA.
- Easy to operate:
- For automatic operation, set the control on auto. Adjust the sealing time (heating time), congealing time (cooling time), and recycle time (automatic operation of jaws). Insert material to be sealed and when jaw opens, remove sealed material.
- For manual operation, set the control to manual. Insert the material to be sealed. Press down on the foot switch to activate the sealing bar.
Item Specifications
- Seal Length: 30" / 750mm
- Seal Width: 5mm
- Power: 1200W
- Weight: 82LBS
- Dimensions: 33" x 15" x 10"
Demonstration Video
W-series Auto Sealer Demo
Standard Features
• Automatic impulse sealing with precise electronic control
• Dual mode operation: automatic or manual
• Foot switch allows both hands to be free
• Three separate control settings for sealing time, recycle time, and congealing time to produce consistent seals
• Includes electr ...
W-Series automatic sealers are designed for the continuous sealing of thermoplastic materials. Unit is controlled by a plug-in circuit board. Equipped with an electronic timer and electromagnet, once correct settings have been established, consistent seals will be maintained automatically.
Standard Features
• Automatic impulse sealing with precise electronic control
• Dual mode operation: automatic or manual
• Foot switch allows both hands to be free
• Three separate control settings for sealing time, recycle time, and congealing time to produce consistent seals
• Includes electric foot switch and worktable
Turn on machine and set recycle, congealing, and sealing settings. Notice that congeal time is at least 1.5x greater than seal time.
Manual Mode:
Place material to be sealed on the lower jaw and press on footswitch to activate sealing process.
Auto Mode:
Place material to be sealed on the lower jaw. Switch to Auto Mode and the sealing jaws will activate automatically.
