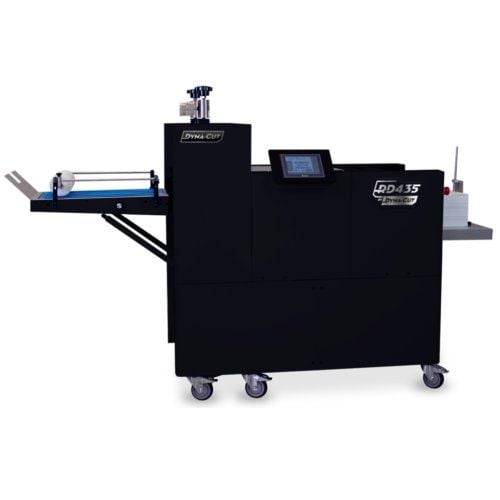

Count Dyna-Cut RD435 Rotary Die Cutter

$69,995.00
pay /mo or Net30*
Brand: Count
Item# Dyna-Cut
  • Designed for use with flexible dies.
  • Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches.
  • High speed output of up to 6,000 cycles per hour.
  • Fast and efficient die changes.

ProductDescription

The Count Dyna-Cut is an affordable rotary die cutter system that produces top quality pieces from custom flexible dies. Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches. The Dyna-Cut produces a variety of digital print and packaging products such as custom-shaped brochures and direct mailers, invitations, retail packages, labels, greeting cards and folded boxes. At a speed of up 6,000 cycles per hour, the Dyna-Cut produces not only single and multiple-up pieces but a wide variety of paper stocks up to 14"x 20". Other great features include: Fast and efficient die changes, Touch Screen User Interface, Top Feed Vaccuum System, Large 8" Capacity Feeder, and Conveyor System with Scrap Separator. This

Product Details

  • Designed for use with flexible dies.
  • Custom dies perform multiple cuts, slits, slit-scores, kiss cuts, perforations, and window punches.
  • High speed output of up to 6,000 cycles per hour.
  • Fast and efficient die changes.
  • Touch Screen User Interface
  • Top Feed Vacuum System
  • Large 8" Capacity Pile Feeder
  • Conveyor System with Scrap Diverter
  • Best GSM range in the industry.
  • Endless cutting capabilities.
  • Premium quality, without the premium price tag.
  • 180 Day Manufacturer's Warranty (Extended Warranties Available)

Item Specifications

  • Model: RD435
  • Dimensions: 105" L x 29.25" W x 55.25" H
  • Weight: 1025 lbs
  • Speed: 6,000 cycles per hour
  • Feed Capacity: Vacuum fed, 8"
  • Paper Weight Range: 106 - 435 gsm
  • Max Sheet Size: 14" x 20"
  • Min Sheet Size: 8.5" x 11"
  • Delivery: Motorized Belt
  • Motor: Dual (Cylinder and Feeder)
  • Voltage: 110V
  • Double Sheet Detector: Yes
  • Registration Mark Sensor: Yes
  • Reg Board Alignment: Yes
  • In-line Scrap Separator: Yes
  • Made in: U.S.A.

Demonstration Video

An Affordable Rotary Die Cutting System Video

Transcript : Dyna-Cut by COUNT. An Affordable Rotary Die Cutting System. Designed for use with Flexible Dies. Multiple Cuts. Slits. Slit-scores. Kiss Cuts. Perforations. Window Punches. And More! Ultrasonic Double Sheet Detection Sensor. 8 Inch Stack Capacity. Air Suction Top Feed System. Feeds Paper Sizes* up to 14” x 20”. Paper Weights up to 400 GSM. Speeds of 6,000 Cycle Per Hour. In-Line Scrap Separator. Quick and Simple Die Changeovers. Business Cards. Retail Packaging. Greeting Cards. Door hangers. Invitations. Custom Labels. Folded Boxes. And More!

Dyna-Cut RD435 Rotary Die Cutter Overview Video

Transcript :  Get the best price now, just call 800-944-4573
 ✉ Get a quote, just email [email protected]

Welcome to the future of cutting! The innovative Dyna-Cut RD435 Rotary Die Cutter is a powerful, cost-effective, and streamlined way to produce nearly any kind of cut, slit, kiss-cut, or perforation you need. The flexible die system offers continuous-load cutting that is fully automated, making production incredibly efficient.
Standard and custom dies are available, all of which are flexible cutter dies, wrapping around a mandrel for rotation-style cutting and continued processing of pages. Swi ...

Key Features

Touch Screen
User Interface

Top Feed Vacuum System

Large 8" Capacity
Pile Feeder

Conveyor System with
Scrap Diverter

Dyna-Cut Standard Flexible Rotary Dies

Product NameItem Number
Dyna-Cut Standard Flexible Rotary Die - 5" x 7" Bracket Invitation (12" x 18" Sheet, 4-Up)05CMDINBR57
Dyna-Cut Standard Flexible Rotary Die - 2" x 3.5" Business Card with Square Corners (12" x 18" Sheet,21-Up)05CMDBCSC352
Dyna-Cut Standard Flexible Rotary Die - 8.25" x 3" Round Hook Door Hanger (13" x 19" Sheet, 6-Up)05CMDMRHDH825
Dyna-Cut Standard Flexible Rotary Die - 3.5" x 2.5" Playing Cards (13" x 19" Sheet, 16-Up)05CMDPC3525
Dyna-Cut Standard Flexible Rotary Die - 3.5" x 2.5" Playing Card Box (13" x 19" Sheet, 4-Up)05CMDPCB3525
Dyna-Cut Standard Flexible Rotary Die - 5" x 7" Scalloped Invitation (12" x 18" Sheet, 4-Up)05CMDINSC57
Dyna-Cut Standard Flexible Rotary Die - 5" x 7" Ticket-Style Invitation (12" x 18" Sheet, 4-Up)05CMDINTS57
