Die Sets For Rhin-O-Tuff OD4000 and OD4800
546 657 18

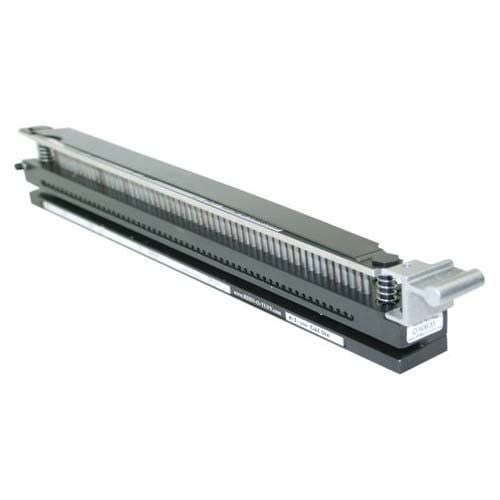

Die Sets For Rhin-O-Tuff OD4000 and OD4800

Brand: Rhin-O-Tuff
Reviews
Rating:
80%
  • Available die sets include wire, spiral coil, velobind and more
  • Hardened steel dies
  • Easily slides in and out of the machine
  • Designed for heavy use
Starting At

$546.00

Choose Product Below
SWIPE FOR MORE IMAGES
  • 0
  • 1
video
Product NameItem NumberPriceQty
3 Hole Die Set For Rhin-O-Tuff OD4000 and OD480004130A1
$546.00
2:1 Round Die Set For Rhin-O-Tuff OD4000 and OD480004121A
$546.00
3:1 Round Die Set For Rhin-O-Tuff OD4000 and OD480004131A
$546.00
4:1 .248 Round Die Set For Rhin-O-Tuff OD4000 and OD480004155A
$546.00
4:1 .250 Round Die Set For Rhin-O-Tuff OD4000 and OD480004141A
$546.00
5mm Round Die Set For Rhin-O-Tuff OD4000 and OD480004151A
$546.00
6mm Round Die Set For Rhin-O-Tuff OD4000 and OD480004066A
$546.00
Velobind Die Set For Rhin-O-Tuff OD4000 and OD480004100A1
$546.00
2:1 Square Die Set For Rhin-O-Tuff OD4000 and OD480004221A
$657.00
3:1 Square Die Set For Rhin-O-Tuff OD4000 and OD480004231A
$657.00
2:1 Rectangle Die Set For Rhin-O-Tuff OD4000 and OD480004226A
$657.00
4:1 .2475 Oval Hole Die Set For Rhin-O-Tuff OD4000 and OD4800 04444A
$657.00
3:1 .333 Oval Die Set For Rhin-O-Tuff OD4000 and OD480004531A
$657.00
Comb Die Set For Rhin-O-Tuff OD4000 and OD480004235A1
$657.00
2.5:1 Round Die Set For Rhin-O-Tuff OD4000 and OD480004229A
$546.00
True 5:1 Round Die Set For Rhin-O-Tuff OD4000 and OD480004153A
$546.00
3:1 Square Pro-Click GBC .1875 x .1875 Die Set For Rhin-O-Tuff OD4000 and OD480004293A
$657.00
4:1 .2475 Round Die Set For Rhin-O-Tuff OD4000 and OD480004115A
$546.00

Product Description

MyBinding.com carries the full line of Rhin-O-Tuff products including their line of heavy duty punches and all of the diesets used in these punches. This dieset is designed for use in the Rhin-O-Tuff OD4000 Electric Interchangeable Die Punch and the OD4800 Manual Interchangeable Die Punch. These two punches are designed for offices that need the flexibility of multiple binding styles but don't have a huge budget.

Product Details

  • Round Die: 4:1 Pitch Round Die, 2:1 Pitch Square Hole Die, 3:1 Pitch Square Hole Die, 3 Hole Round Die, Velobind Round Hole Die, 2:1 Pitch Rectangle Hole Die, 2:1 Pitch Round Die, 5mm Pitch Round Die, 6mm Pitch Round Die, 4:1 Pitch Round Die, 3:1 Pitch Round Die, 4:1 Pitch Oval Hole Die
  • Hole Spacing: .248 Hole Spacing, .500 Hole Spacing, .333 Hole Spacing, 4-1/4" Hole Spacing, 1" Hole Spacing, .500 Hole Spacing, .500 Hole Spacing, 5mm Hole Spacing, 6mm Hole Spacing, .250 Hole Spacing, .333 Hole Spacing or .2475 Hole Spacing
  • Hole Diameter: .188 Hole Diameter, 250 Square Hole Size, .156 Square Hole Size, 5/16" Hole Diameter, .125 Hole Diameter, .125 x .250 Hole Size, .250 Hole Diameter, .140 Hole Diameter, .172 Hole Diameter, .172 Hole Diameter, .172 Hole Diameter, .188 x .157 Oval Hole Size

Product Reviews

Reviews
Rating:
80%
Write Your Own Review
You're reviewing:Die Sets For Rhin-O-Tuff OD4000 and OD4800
Your Rating

Demonstration Video

Transcript: Welcome to MyBinding video. Different looks and different books require different kinds of spines. With Rhin-O-Tuff, in a single machine you can have plenty of options. Within their binding systems, Rhin-O-Tuff has manufactured over 20 different interchangeable dies. Among the most common are 3:1 wire, 4:1 coil, and plastic comb binding. They are built solid, like all Rhin-O-Tuff items, and the fully disengageable die pins are all easily removed, so you can work with any size document that you need. And when a different project requires a different punch pattern, simply slide the old one out a ... Read More
Welcome to MyBinding video. Different looks and different books require different kinds of spines. With Rhin-O-Tuff, in a single machine you can have plenty of options. Within their binding systems, Rhin-O-Tuff has manufactured over 20 different interchangeable dies. Among the most common are 3:1 wire, 4:1 coil, and plastic comb binding. They are built solid, like all Rhin-O-Tuff items, and the fully disengageable die pins are all easily removed, so you can work with any size document that you need. And when a different project requires a different punch pattern, simply slide the old one out and the new one in, it's that easy. And that's Rhin-O-Tuff. For more demos, reviews, and how-tos, check out MyBinding.com.
Transcript: Welcome to MyBinding video. Bookbinding projects come in many different lengths. A benefit of Rhin-O-Tuff's interchangeable dies is that all the pins are fully disengageable. You can remove any or all pins for your size project. This video will show you just how easy that is and it's the same for all of them.

Step one is to depress the pin retainer. Press down through the notch on the spring and disengage, or lift, the pin capture. And that is step two. Step three, remove any and all pins that you need just by pulling them straight up out of the slot. Finally, press down again on the pin re ...
Read More
Welcome to MyBinding video. Bookbinding projects come in many different lengths. A benefit of Rhin-O-Tuff's interchangeable dies is that all the pins are fully disengageable. You can remove any or all pins for your size project. This video will show you just how easy that is and it's the same for all of them.

Step one is to depress the pin retainer. Press down through the notch on the spring and disengage, or lift, the pin capture. And that is step two. Step three, remove any and all pins that you need just by pulling them straight up out of the slot. Finally, press down again on the pin retainer and replace the pin capture.

The different dies may punch different shaped holes and different punch patterns. However, their removal is essentially the same for every single kind. And as you know, replacing the die into the machine is as easy as can be. And that is easy die pin removal for a Rhin-O-Tuff die. For more how-tos, demos, and reviews, check out MyBinding.com.

Rhin-o-Tuff Diesets Demo

Transcript: Welcome to MyBinding video. Different books and different looks require different kinds of spines. With Rhin-O-Tuff in a single machine, you can have plenty of options. Within their binding systems, Rhin-O-Tuff has manufactured over 20 different interchangeable dies. Among the most common are 3-1 wire, 4-1 coil, and plastic comb binding. They are built solid like all Rhin-O-Tuff items and their fully disengageable die pins are all easily removed so you can work with any sized document that you need. And when a different project requires a different punch pattern, simply slide the old on ... Read More
Welcome to MyBinding video. Different books and different looks require different kinds of spines. With Rhin-O-Tuff in a single machine, you can have plenty of options. Within their binding systems, Rhin-O-Tuff has manufactured over 20 different interchangeable dies. Among the most common are 3-1 wire, 4-1 coil, and plastic comb binding. They are built solid like all Rhin-O-Tuff items and their fully disengageable die pins are all easily removed so you can work with any sized document that you need. And when a different project requires a different punch pattern, simply slide the old one out and the new one in. It’s that easy. That’s Rhin-O-Tuff. For more demos, reviews, and how-to’s, check out MyBinding.com.
