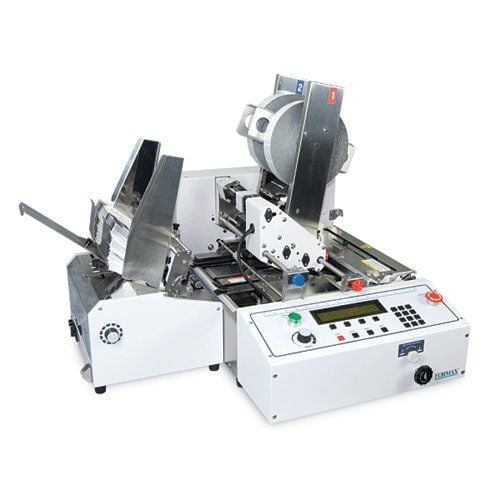

Formax FD 282 Double-Head Edge Tabber with Synchronized Feeder
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- Speed: Single Tab: Up to 25,000 pieces per hour, Double Tab: Up to 15,000 pieces per hour and Triple Tab: Up to 10,000 pieces per hour (11" minimum piece length)
- Feeder Capacity: In-line design, capacity dependent on input device
- Media Thickness: Up to 1/4"
- Duty Cycle: Up to 30 million addresses or 500,000 per month over a 5-year cycle
ProductDescription
Product Details
- Revolutionary design applies tabs to opposite sides of the mailpiece, simultaneously.
- Tabs up to 25,000 pieces per hour (single tab).
- Central control panel with LCD display.
- Program up to 4 custom jobs.
- Designed to handle a variety of tab stock including translucent and paper.
- In-line design is compatible with various infeed and output devices.
Item Specifications
- FD 282 Tabber Specifications:
- Speed: Single Tab: Up to 25,000 pieces per hour, Double Tab: Up to 15,000 pieces per hour and Triple Tab: Up to 10,000 pieces per hour (11" minimum piece length)
- Feeder Capacity: In-line design, capacity dependent on input device
- Media Size: 3.5" to 15" L
5" to 11" W - Media Thickness: Up to 1/4"
- Tab Size: 3/4" to 1 1/2"
- Tab Materials: Translucent, Paper, Clear
- Tab Sensitivity Control: Adjusts for density in tab/wafer seals
- Tabs Applied: 1, 2 or 3 tabs per pass
- Tab Roll Capacity: Up to 11,000 tabs
- Tab Roll Size: Maximum Roll Diameter is 9" and Core diameter is 3"
- Tab Accuracy: +/- 1/16"
- Counter: LCD display with lifetime and job resettable counters
- Duty Cycle: Up to 30 million addresses or 500,000 per month over a 5-year cycle
- Safety Features: Interlocks on all adjustments, emergency stop switch
- Dimensions: 19" W x 26" H x 30" D
- Weight: 75 lbs
- Power: 110VAC, 50/60Hz
- Made in USA
- Medium Duty Synchronized Feeder Specifications:
- Speed: Up to 25,000 pieces per hour
- Media Size: 3.5" to 12" L 5" to 17" W
- Media Thickness: Up to 1/4"
- Media Type: Open-ended Z-fold flyers, envelopes, booklets, card stock, business cards
- Dimensions: 13 3/8" W x 11 3/4" L x 19 3/4" H (including media guides)
- Made in USA
- Manufacturer's Warranty: 90 day limited Manufacturer's Warranty on parts, excluding wearables and labor
Demonstration Video
Formax FD 282, FD 282SF and FD 282HF Tabbers Demo Video
Formax FD 282 Programmable Tabbing System
The Formax FD 282 Programmable Edge Tabbing System applies tabs to mail pieces in a variety of positions in a single pass. It can simultaneously tab opposite sides of a mail piece or the top and side, maximizing productivity and eliminating the need to feed pieces multiple times. The FD 282 features two tabbing heads: one fixed-position side tabber and the other with flexibility to switch from side tabbing to leading-edge tabbing. The centralized control panel is easy to use, with an LCD digital display, lifetime and job-resettable counters, and the ability to program up to four jobs in memory with different media sizes, tabs, and tabbing positions.Various tab stocks can be used, including translucent and paper, in sizes up to one and a half inches in diameter. The FD 282 holds rolls up to nine inches in diameter and includes a built-in waste take-up spool, which helps reduce downtime.
The tabbing system is available in three configurations:
The FD 282 stand-alone tabber can be used in line with a variety of feeders and output devices. It can process up to 25,000 pieces per hour and accommodate media sizes up to 11 inches wide and up to 1/4 inch thick.
The medium-volume FD 282 SF includes the FD 282-05 synchronized feeder. The feeder is interlocked with the tabber for maximum feeding control.
And, the high-volume FD 282 HF includes the FD 282-10 heavy-duty friction feeder featuring adjustable feed belts and sheet separators for superior flexibility and feeding accuracy.
In any configuration, the dependable and rugged FD 282 Programmable Edge Tabbing System has the capacity to make mailings compliant with very little effort.
