Model NameModelSpeedPaper weightForm SizeFeed Tray CapacityMin./Max. Burst LengthPaper SizeDimensionsWeightVoltageWarranty
-
FD 550
Variable, 0-200 feet per minute100lb total, up to 4 parts (none exceeding 60lb tag stock)2.375" -16"W x 2.75" -12"L (slitting) 2.375" -14.5"W x 2.75" x 12"L (non-Slitting)N/AN/AN/A59" L x 32" W x 56.5" H with cabinet193 lbs115Volts AC 50/60 Hz90 day limited warranty on parts. Excluding wearables and labor. -
FD 676
Variable, 30 -500 feet per minuteup to 104 lb card stock, up to 8 parts2.75" -19"W x 2.75" -17"L (slitting) 2.75" -16.75"W x 2.75" ? 17"L (non-Slitting)N/AN/AN/A58" L x 41" W x 56.5" H with cabinet428 lbs115Volts AC 50/60 Hz90 day limited warranty on parts. Excluding wearables and labor. -
FD 4170
5-level speed adjustment: 42, 64, 89, 114, 140 sheets per minute13# bond - 110# index (58 - 175 gsm)N/AUp to 400 sheets2.5" - 9.9"5" - 17" H x 4" - 11" W32" L x 9" H x 16" D56 lbs.120V, 60 Hz90 day limited warranty on parts. Excluding wearables and labor.
Formax FD 4170 Cut Sheet Burster
7750.00
NewCondition
InStock

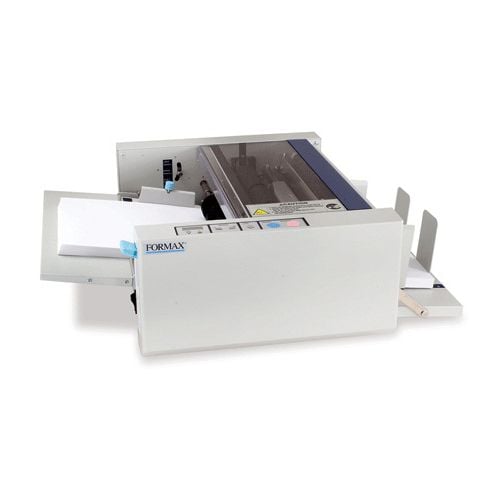

Formax FD 4170 Cut Sheet Burster
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
Product Description
The FD 4170 Cut Sheet Burster is the ideal finishing solution when multiple forms are printed on one page. Direct from a laser printer to the FD 4170, pre-perforated forms are automatically burst at the perforation and stacked sequentially at speeds of up to 140 sheets per minute. Pre-programmed cut settings and a new LCD counter make bursting projects easier than ever. No more cut sheet bursting by hand!
Product Details
- 5-level speed adjustment: 42, 64, 89, 114, 140 sheets per minute
- 4-digit LCD Counter
- Feed tray capacity of up to 400 sheets
- Three-tire, top-loading feed system
- Accommodates a wide range of paper stock, up to 110# index (175gsm)
- Paper sizes up to 11" x 17"
- Adjustable side guides for different form widths
- Last job memory
- Pre-programmed cut settings for 11", 14", 17" paper
- Programmable job settings
Product Reviews
Write Your Own Review
Item Specifications
- Speed: 5-level speed adjustment: 42, 64, 89, 114, 140 sheets per minute
- Feed Tray Capacity: Up to 400 sheets
- Paper Size: 5" - 17" H x 4" - 11" W
- Paper Weight: 13# bond - 110# index (58 - 175 gsm)
- Min./Max. Burst Length: 2.5" - 9.9"
- Dimensions: 32" L x 9" H x 16" D
- Weight: 56 lbs.
- Voltage: 120V, 60 Hz
- Warranty:
- 90 day limited warranty on parts.
- Excluding wearables and labor.
- Part Number: FD-4170
Demonstration Video
Transcript:
FD 4170 Cut Sheet Burster
Burst apart pre-perforated cut sheet forms up to 11” x 17”
Burst at speeds up to 140 sheets per minute
Set form paper weight
Custom set burst lengths or choose from preset settings
Select speed setting 1 – 5
Adjust infeed guides for paper size using the pre-marked ruler settings
Load paper into the drop in feeder
Press the jog button to test, then press the start button
Forms are burst quickly and cleanly
FD 4170 Cut Sheet Burster
Burst apart pre-perforated cut sheet forms up to 11” x 17”
Burst at speeds up to 140 sheets per minute
Set form paper weight
Custom set burst lengths or choose from preset settings
Select speed setting 1 – 5
Adjust infeed guides for paper size using the pre-marked ruler settings
Load paper into the drop in feeder
Press the jog button to test, then press the start button
Forms are burst quickly and cleanly
FD 4170 Cut Sheet Burster
FD 4170 Cut Sheet Burster
Burst apart pre-perforated cut sheet forms up to 11” x 17”
Burst at speeds up to 140 sheets per minute
Set form paper weight
Custom set burst lengths or choose from preset settings
Select speed setting 1 – 5
Adjust infeed guides for paper size using the pre-marked ruler settings
Load paper into the drop in feeder
Press the jog button to test, then press the start button
Forms are burst quickly and cleanly
FD 4170 Cut Sheet Burster
