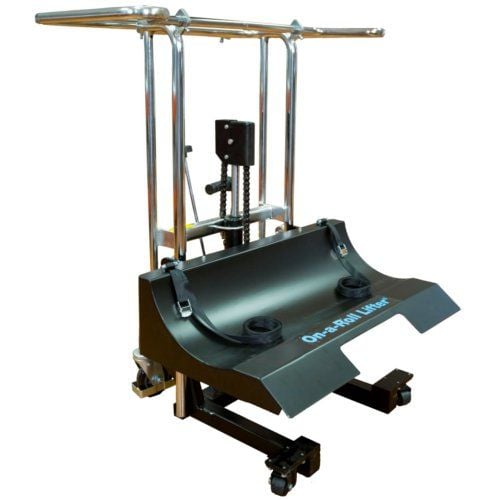

Foster 16.4' On-a-Roll Lifter (Low Profile) - 61574

Skip to the beginning of the images gallery

SWIPE FOR MORE IMAGES

Product Description

This low profile model Foster 16.4' On-a-Roll Lifter is designed specifically for sign makers and other businesses with the need to handle wide or heavy media rolls. This On-a-Roll Lifter can lift media as wide as 16.4ft(2.5m) or as heavy as 660lbs , with diameter as great as 15.75 inches. Its ergonomic pull bar allows users to maneuver around tight corners and through narrow passages. This Foster 16.4' Low Profile On-a-Roll Lifter is designed to operate even in shops with limited floor space.

Product Details

Easy-to-use operation reduces on-the-job injuries.
User-friendly operation avoids costly and dangerous handling mistakes that damage media.
Single-person operation saves labor and time.
Designed to operate even in shops with limited floor space.
Rugged construction ensures long lifter life.
Newly updated ergonomic pull bar and stronger media tray.
2-year Manufacturer's Warranty on all wheels, hydraulics and media tray. 5-year Manufacturer's Warranty on cross bars.

Item Specifications

Roll Weight Capacity: 300 kg (660 lbs)
Lift Height: 84 cm (33")
Max. Roll Width: 5 m (16".4")
Max. Roll Diameter: 40 cm (15.75")
Width x Depth: 111.6 cm x 85.5 cm (44" x 33.6")
Height: 119.4 cm (47")
Weight: 85 kg (188 lb)
Bottom Fork Clearance: 8.25 cm (3.25")
Manufacturer's Warranty: 2-year Manufacturer's Warranty on all wheels, hydraulics and media tray and 5-year Manufacturer's Warranty on cross bars

Demonstration Video

The Foster Low Profile On-a-Roll Lifter Video

Transcript: The Foster Low Profile On-a-Roll Lifter

The rugged new Foster On-a-Roll Lifter is designed to make loading large media rolls on superwide format printers quick and effortless.
Foster is proud to be an HP Partner.

Position the On-a-Roll Lifter in front of the roll
Lock the rear caster wheel brakes
Pull the nylon straps, moving the media into the securing tray
Pull the nylon straps towards you into the securing tray
Lock the straps securely around the media
Raise the media with the easy-to-use foot pump
Unlock the brakes
Large and heavy rolls up to 16.4 ft (5m) and 660 lb (300 kg) ... Read More

The Foster Low Profile On-a-Roll Lifter
The rugged new Foster On-a-Roll Lifter is designed to make loading large media rolls on superwide format printers quick and effortless. Foster is proud to be an HP Partner.
Position the On-a-Roll Lifter in front of the roll Lock the rear caster wheel brakes Pull the nylon straps, moving the media into the securing tray Pull the nylon straps towards you into the securing tray Lock the straps securely around the media Raise the media with the easy-to-use foot pump Unlock the brakes Large and heavy rolls up to 16.4 ft (5m) and 660 lb (300 kg) are easily transported Easily move rolls around corners and into tight spaces Move the roll to the printer Media rolls may be lifted as high as 33.5 in (89.1 cm) A handy release valve permits easily lowering the media roll The Foster On-a-Roll Lifter also fits through standard doors
