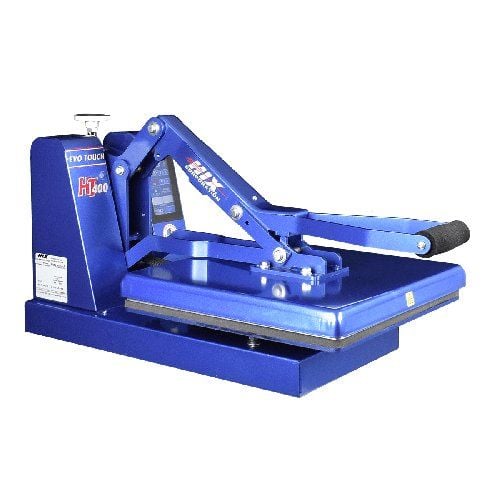

HIX Evo Touch HT-400 Digital Manual Clamshell Press & Accessories
- Easy integrated digital time and temperature settings.
- Tilting (floating) lower platen.
- Top Pressure Plate.
- Certified electrically safe (ETL).
- Oversize / Truck shipping
Starting At
$1,660.00
Choose Product Below
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
Product Description
The graphics industry calls this machine "The Workhorse" for good reason - the HIX HT-400 Clamshell Press is rugged, durable, and made to perform. A must-have for any serious start-up business, the HIX HT-400 has earned respect for its numerous capabilities and reliability. With over 100,000 units sold throughout the world, this machine is regarded as an industry standard. Many customers have used this heat press for over 30 years of worry-free service. If you’re looking for high production capabilities, this is the heat press you need!
Product Details
- Easy integrated digital time and temperature settings - Touch-screen controller allows simple dialing in of time and temperature.
- From the touch-screen controller, preset selections of temperature-time combinations can be easily programmed into the machine.
- The current pressure is displayed on the touch-screen display each time the press closes. The pressure is easily changed by turning the silver knob at the top of the control housing (clockwise for more, counter-clockwise for less). There are nine settings on the display: 0-3 for light pressure, 4-6 for medium, and 7-9 for heavy pressure.
- Tilting (floating) lower platen - The bottom platen tilts up toward the upper platen as the heat press closes. This equalizes pressure even when pressing thick items, like a quarter-inch thick 8" × 10" ceramic tile.
- Top Pressure Plate - The handle attaches to a 4" x 5" pressure plate on the top platen instead of a single screw going into the top platen. This provides more even pressure on the outside edges of the press (think of it as pushing down with your entire hand, versus just your thumb).
- Certified electrically safe (ETL) - The "Electrical Testing Laboratory" seal means HIX presses have passed a rigid and very demanding independent testing process, and have been certified electrically safe.
- 100% Made in the USA - HIX has its own 110,000 sq ft manufacturing facility with its very own fully integrated aluminum foundry, CNC mill operation, welding, metal forming, wiring, fabrication, assembly, and packaging departments.
- A one-year general manufacturer's warranty and lifetime manufacturer's warranty on the heater element.
Product Reviews
Write Your Own Review
Item Specifications
- Dimensions: W 21" x H 23" x D 33"
- Heat Platen Size: 15" x 15" (38 x 38 cm)
- Weight Shipping: 84 lbs. (39 kg)
- Compatible Accessories:
- Interchangeable Padded 13 x 13 Lower Platen
- Interchangeable Padded 15 x 15 Lower Platen
- Interchangeable Padded 16 x 20 Lower Platen
- Interchangeable Padded 4-Position Lower Platen (two-6x5" & two-3.5x3.5" areas)
- 15" x 15" - 3/8" Thick Premier Series Pad Replacement Kit
- 15" x 15" PTFE Pad Protector Deluxe
- 15" x 15" - 3/8" Thick EVO Series Pad Replacement Kit
- 15" x 15" PTFE Transfer Sheet
- 16" x 20" PTFE Transfer Sheet
- Optional Splitter Stand - Electric Blue
- Warranty: Lifetime Manufacturer's Warranty on the heater element / 1 Year Manufacturer's Warranty General
- Old Part Number:MY04HIXHT400P
