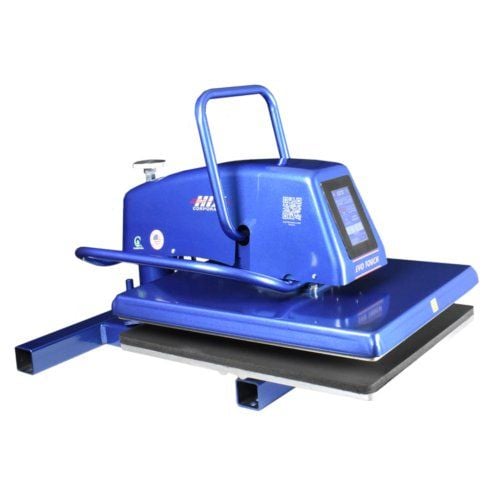

HIX SwingMan 25 EVO Digital Swing Away Press
3465.00
NewCondition
InStock
HIX SwingMan 25 EVO Digital Swing Away Press
SWIPE FOR MORE IMAGES
- 0
- 1
| Product Name | Item Number | Price | Qty | ||
|---|---|---|---|---|---|
| HIX 15"x15" PTFE Transfer Sheet | 04HIXTFSHT1515 | $19.00
|
|||
| HIX 16"x20" PTFE Transfer Sheet | 04HIXTFSHT1620 | $21.00
|
|||
| HIX 20"x25" PTFE Pad Protector Deluxe (SwingMan 25) | 04HIXPROT2025 | $135.00
|
|||
| HIX 20"x25" - 1/2" Thick Premier Series Pad Replacement Kit (SwingMan 25) | 04HIXREPKIT2025 | $405.00
|
|||
| HIX 20"x25" - 1/2" Thick EVO Series Pad Replacement Kit (SwingMan 25) | 04HIXREPKITE2025 | $352.00
|
Product Description
The SwingMan 25 EVO Manual Swing-A-Way Press with 20" x 25" Platen is ideal for pressing larger tile murals, 3XL-4XL shirts, signage, reflective stripping, and other items. Not only can you press larger items, but the larger size also allows you to press multiple smaller items in a single press - ideal for increased output! This machine can apply 1200 lbs of downward force and transfer images larger than 19" x 24" in a single press. The press has a modern design and an over-center lever for easy locking. The Swingman 20 EVO has the same features as the Swingman 20 EVO, including a new full colour LCD touch screen, a 20" x 25" heavy duty swing away platen, a digital timer reading in both minutes and seconds, a calibrated digital temperature control for temperatures up to 450°F, and full pressure adjustments for items up to 1-3/4" thick.
Product Details
- Totally integrated digital time and temperature. Turn the heat press on and easily set the temperature (with the press open) on the integrated touch-screen controller. When the press reaches the pre-set temperature (max is 450º), it maintains this value within +/- 2º. Next, set cycle time. When you close the press, the timer will start its countdown. When it reaches "0," the buzzer will sound. Lifting the upper platen will automatically reset the timer. Note: The press will display its current temperature between cycles.
- The SwingMan swing-away design not only ensures that the heat is always away your face, but also that there is no danger of accidentally running your hands up into a very hot heater block (as there may be with a clamshell press).
- The SwingMan 25 has the ability to achieve very even pressure on large, thick items or multiple small, thick items because all pressure is exerted perpendicularly onto the lower platen when the press is closed. Upon opening, the heater block lifts straight up and is then swung to the right. The procedure is reversed when closing. Using the convenient swing-arm, the heater block is swung back left (an internal stop positions it over the lower platen). It is then ready to close. It should be noted that the swing requires very little effort to maneuver.
- The press accepts setups up to 1.75" thick. This is a very desirable benefit for those shops that want to truly maximize the potential of their press operations. The SwingMan 25 presses tiles, plaques, really thick jackets, sublimatable awards, etc.
- ETL Listed. The Electrical Testing Laboratory (ETL) listing for manufacturers is similar to the UL (Underwriters Laboratory) listing for household appliances. The ETL Listed Mark is issued to products that have met the requirements of product safety standards in the US and Canada for residential and commercial use. On a practical basis, this means that all components, wiring, connections, and construction meet a pre-described set of specifications as outlined in that standard. This means that the press is safe in your home or business.
- Lifetime manufacturer's warranty on the heater element and a one-year manufacturer's warranty on other parts of the press.
Item Specifications
- Dimensions: W 31" x H 25" x D 43"
- Platen Size: 20" x 25" (51 x 64 cm)
- Weight Shipping: 208 lbs (94 kg)
- Voltage: 220V
- Compatible Accessories:
- Warranty: Lifetime Manufacturer's Warranty on the heater element / 1 Year Manufacturer's Warranty on other parts of the press
