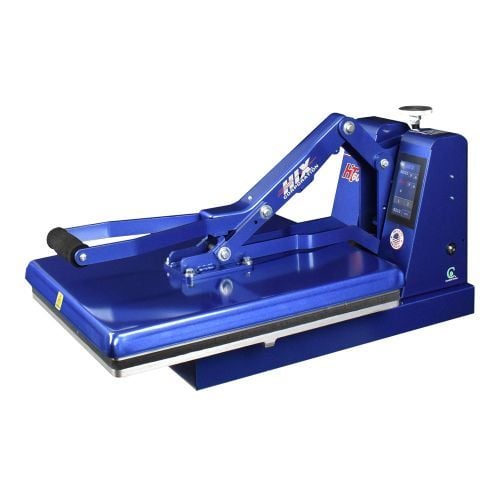

HIX HT-600 Digital Manual Clamshell Press & Accessories
- Easy integrated digital time and temperature settings
- Tilting (floating) lower platen
- Top Pressure Plate
- Certified electrically safe (ETL)
- Oversize / Truck shipping
Starting At
$1,875.00
Choose Product Below
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
Product Description
The HIX HT-600 Clamshell Press ensures that your larger heat transfer impressions are perfect from edge to edge. With a larger 16" x 20" platen surface, you’ll be capable of handing those transfers that require more surface area. Built with the same features and performance characteristics as the HT-400, the HT-600 has an increased heat platen (16" x 20") that can apply even pressure on all types of transfers, even on items up to 1/2-inch thick. The floating lower platen helps provide even pressure on thicker items, no matter were it’s applied.
Product Details
- Easy integrated digital time and temperature settings - Touch-screen controller access allows simple dialing in of time and temperature.
- From the touch-screen controller, preset selections of temperature-time combinations can be easily programmed into the machine.
- Tilting (floating) lower platen - The bottom platen tilts up towards the upper platen as the heat press closes. This equalizes pressure even when pressing thick items, like a quarter-inch thick 8×10" ceramic tile.
- Top Pressure Plate- The handle attaches to a 4" x 5" pressure plate on the top platen instead of a single screw going into the top platen. This provides more even pressure on the outside edges of the press (think of it as pushing down with your entire hand, versus just your thumb).
- Certified electrically safe (ETL) - The “Electrical Testing Laboratory" seal means HIX presses have passed a rigid and very demanding independent testing process, and have been certified electrically safe.
- 100% Made in the USA - HIX has its own 11,000 sq ft manufacturing facility with its very own fully integrated aluminum foundry, CNC mill operation, welding, metal forming, wiring, fabrication, assembly, and packaging departments.
- A one-year general manufacturer's warranty and lifetime manufacturer's warranty on the heater element.
Product Reviews
Write Your Own Review
Item Specifications
- Dimensions: W 21" x H 23" x D 33"
- Heat Platen Size: 16" x 20" (41 x 51 cm)
- Weight Shipping: 95 lbs. (44 kg)
- Compatible Accessories:
- Interchangeable Padded 13 x 13 Lower Platen
- Interchangeable Padded 15 x 15 Lower Platen
- Interchangeable Padded 16 x 20 Lower Platen
- Interchangeable Padded 4-Position Lower Platen (two-6x5" & two-3.5x3.5" areas)
- 16" x 20" PTFE Pad Protector Deluxe
- 15" x 15" PTFE Transfer Sheet
- 16" x 20" PTFE Transfer Sheet
- 16" x 20" - 1/2" Thick Premier Series Pad Replacement Kit
- 16" x 20" - 1/2" Thick EVO Series Pad Replacement Kit
- Optional Splitter Stand - Electric Blue
- Warranty: Lifetime Manufacturer's Warranty on the heater element / 1 Year Manufacturer's Warranty General
- Old Part Number:MY04HIXHT600P
