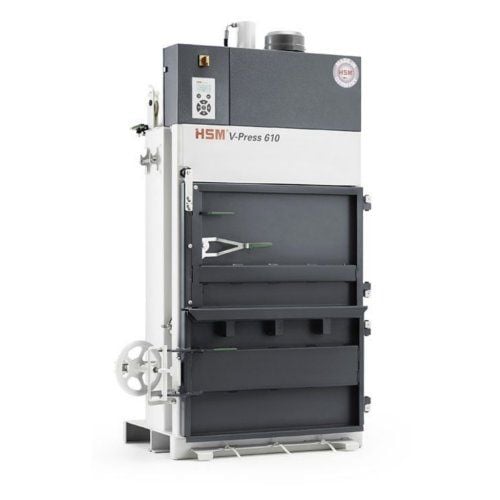

    HSM V-Press 610 Vertical Baling Press
    12423.16 NewCondition InStock

    HSM V-Press 610 Vertical Baling Press

    Part #: HSM6110
    Brand: HSM
    1 Questions, 1 Answers
    • Pressing Power: 12 tons
    • Bale Weight (depending on material): up to 220 lbs
    • Cycle Time in Idle Operation (theor.): 22 sec.
    • Strapping: 3-fold with polyester tape
    • 1 Year Manufacturer's Warranty
    • Price Match Guarantee
    • Oversize / Truck shipping

    $12,423.16

    Buy Now, Pay Later
    Starting at $1,149/month
    Learn More >

    This Item Ships Via Truck

    SWIPE FOR MORE IMAGES
    • 0
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6
    • 7
    video

    Product Description

    The HSM V-Press 610 reduces the volume of cardboard or foils in an economical way. It has a low installation height and surface. Special retaining claws optimize the compression of the pressing material, increasing both the loading volume and bale output. Quick & easy press assembly. Mechanical bale ejector.

    Product Details

    • Low installation height and surface.
    • Special retaining claws optimize the compression of the pressing material, increasing both the loading volume and bale output.
    • Quick and easy press assembly.
    • Mechanical bale ejector.
    • High process reliability due to HSM TCS (TorsionControlSystem).
    • Basic equipment: 3 rolls of polyester tape.

    Item Specifications

    • Pressing Power: 12 tons
    • Motor: 4.8 HP
    • Voltage / Frequency: 480 V / 60 Hz
    • Loading Aperture W x H: 32" x 20"
    • Bale Weight (depending on material): up to 220 lbs
    • Bale Size (L x W x H): 32" x 24" x max. 24"
    • Cycle Time in Idle Operation (theor.): 22 sec.
    • Acoustic Level: 59.6 dB(A)
    • Press Chamber Size (W x D x H): 31.5" x 23.6" x 41.1"
    • Dimensions of Machine (W x D x H): 46.9" x 32.1" x 78.0"
    • Transport Dimensions of Machine (W x D x H): 46.9" x 32.1" x 78.0"
    • Machine Weight: 1,191 lbs
    • Strapping: 3-fold with polyester tape

    Demonstration Video

    HSM V-Press 610 Demo Video

    Transcript: HSM V-Press 610. Preparation. Loading. Compression. Automatic start upon closing the door. Strapping. Pallet spacer. Ejection. HSM V-Press 610.
    HSM V-Press 610. Preparation. Loading. Compression. Automatic start upon closing the door. Strapping. Pallet spacer. Ejection. HSM V-Press 610.

    Resources

    1. HSM HSM6110 Spec Sheet Download

    Related Categories you might also like

    Questions & Answers

    ▶
    What is the manufacturer's warranty on this baler and what is the noise rating in dB?
    Asked by Shawn M.
    Thank you for your question the HSM V-Press 610 Vertical Baling Press comes with a 1 year manufacturer's warranty. We reached out to HSM and unfortunately they do not have documentation as to it's noise rating.

    Answered by MyBinding
    7 years and 1 months ago ago
