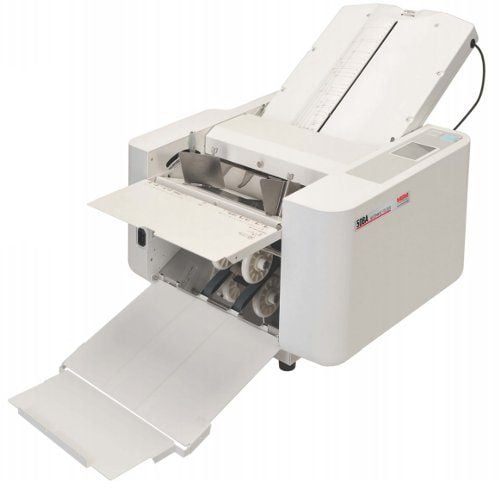

MBM 508A Automatic Programmable Tabletop Paper Folder
$4,319.10 NewCondition InStock
MBM 508A Automatic Programmable Tabletop Paper Folder

MBM 508A Automatic Programmable Tabletop Paper Folder

Part #: FO0605
1 Questions, 1 Answers
Brand: MBM

Your Price: $4,319.10

Retail: $4,799.00

You Save: 10%

Brand New Price Match Guarantee In Stock Free Shipping 1 Year Warranty
Main Features:
  • Speed: Up to 14,400 Sheets per hour
  • Paper Size: 3.5" x 5" to 11" x 17"
  • Paper Weight: 12 to 80 lbs.
  • Sheet Capacity: 500

ProductDescription

The MBM 508A Automatic Programmable Tabletop Paper Folder comes pre-programmed with 36 standard folds and stores up to 24 custom jobs in its memory. The MBM 508A has an automatic 3 roller friction feed system and has a Color LCD touch screen control panel that includes 4 digit addition / subtraction digital counter. The MBM 508A can fold up to 14,400 sheets per hour and can load up to 500 sheets. This paper folder has a test button that folds 2 sheets for inspection, and automatically senses and displays paper size. This MBM 508A Automatic Programmable Tabletop Paper Folder is also featured with extended exit tray for neat stacking of folded sheets , has an automatic conveyor and self-setting exit rollers that ensure smooth ejection of folded paper.

Product Details

  • Automatic 3 roller friction feed system.
  • Pre-programmed with 36 standard folds.
  • Stores 24 custom folds in memory.
  • Automatic feed table elevation.
  • Features paper feed pressure and separator pressure adjustment.
  • Color LCD touch screen control panel includes 4 digit addition and subtraction digital counter.
  • Test button folds 2 sheets for inspection.
  • Automatically recognizes and displays paper size.
  • Extended exit tray for neat stacking of folded sheets.
  • Automatic conveyor and self-setting exit rollers ensure smooth ejection of folded paper.
  • Single sheet feeding automatically maintained for different weights of paper.
  • Auxiliary paper guide for cross folding.
  • Load and unload paper from same side.
  • Display alert and audible signal in case of incorrect operation.
  • Skew and micro-adjustment dials.
  • Fully enclosed fold tables for quiet operation.
  • Quick-release roller system for easy maintenance.
  • Optional scoring, micro-perforating, and slitting units.

ItemSpecifications

  • Speed: Up to 14,400 Sheets per hour
  • Paper Size: 3.5" x 5" to 11" x 17"
  • Paper Weight: 12 to 80 lbs.
  • Sheet Capacity: 500
  • Electrical Requirements: 115 V, 60 Hz
  • Dimensions (D x W x H): 39.75" x 21.5" x 19.70"
  • Shipping Weight: 68
  • Warranty: 1-year limited warranty, excluding wearables

ProductReviews

1 Review(s)
image alt text

Reviewed on 12/31/2018

So Far so Good Review by Brandon

I haven't really been able to put this machine through its paces yet, so I don't feel comfortable giving it a full review. I will say the documentation provided to walk you through setting up the machine isn't the most helpful or intuitive. Not that the machine requires a lot of work to setup, but the paperwork was almost more confusing than if I had just tried to figure it out on my own.

With that being said, I am excited to use the machine and I fully expect it to run great for a long time.

1 Item(s)

per page

DemonstrationVideo

408A and 508A Automatic Folders Video

Transcript: The 408A and 508A are high-end automatic models.
These automatic folders are plug and play.
Simply unbox the machine, attach the folding plates, unfold the delivery tray, set the feed table, which can accommodate jobs up to in 11.8” x 17” size.
500 sheets of 64gsm in quantity, set the paper guides and now it’s ready to fold.
The 408A and 508A have an intuitive touch panel controller, where you can program folding pattern, number to fold, folding speed and so on.
Once the TEST button is pressed, it changes folding positions.
Fine adjustment on folding positions is easy via the p...
Read More
The 408A and 508A are high-end automatic models.
These automatic folders are plug and play.
Simply unbox the machine, attach the folding plates, unfold the delivery tray, set the feed table, which can accommodate jobs up to in 11.8” x 17” size.
500 sheets of 64gsm in quantity, set the paper guides and now it’s ready to fold. The 408A and 508A have an intuitive touch panel controller, where you can program folding pattern, number to fold, folding speed and so on.
Once the TEST button is pressed, it changes folding positions.
Fine adjustment on folding positions is easy via the panel.
The panel clearly shows folding measurements.
Once adjusted, the customized job can be stored in memory, and of course can be recalled quickly.
Even if paper length is not standard, you don’t need to calculate.
Paper feed pressure adjustment helps consistent feeding [508A]
Separator pressure is adjustable too. [508A]
Interval function is useful when folding several badges of sheets.
A double feed detection sensor stops the machine when it detects multiple sheets fed together.
It prevents double sheet contaminated in outputs.
A quick-release folding roller makes cleaning easier, which makes the lifetime longer and ensures always accurate folding.
An optional perforation unit adds more capability to the machine.
By changing rotary tool, it becomes capable to slit, perforate/micro perforate, and even score prints instead of folding these.
Questions & Answers
Q:
what is the difference between MBM 508A and MBM 408A?
Asked by stephen
A:
Thank you for your question. The 508A has more automated features than the 408A including, paper feed pressure adjustment helps consistent feeding and the separator pressure is adjustable too on the output. The 508A also has dedicated 24 memory slots for custom folds, with the 408A you would have to replace one of the 36 pre-programmed folds ( 508A also has the 36 pre-programmed folds) that is not in use to save a custom job.

Answered by MyBinding 23 days ago
