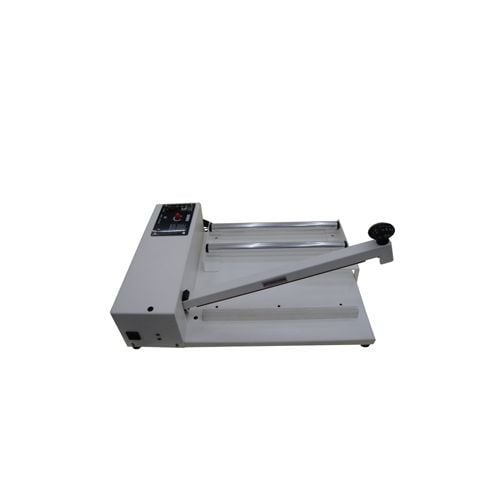

SealerSales W-Series I-Bar Sealers w/ Sliding Cutter and Film Roller
$701.02
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- Seal Length: 14" - 35"
- Seal Width: 2.7mm
- Designed for shrink film packaging, but can also be used for sealing poly bags
- Come in ivory color
ProductDescription
Product Details
- Designed for shrink film packaging, but can also be used for sealing poly bags
- Have a flat element and sliding blade to make bags out of poly tubing.
- Comes in ivory color.
- 14" - 35" sealing length with 2.7mm seal width.
- 13" - 33.75" cutting length
- The blade cuts 5/8" from the seal.
- Film and heat gun are sold separately.
- Easy to Operate:
Insert the product between the two layers of center fold film and press down the sealing bar. Pull the sealed package slightly away from the sealing bar. The element wire will cut and seal the edge. Now turn it over and seal the other side. Apply hot air using heat gun to shrink the film uniformly.
Item Specifications
- Seal Length: Choose Above
- Seal Width: 2.7mm
- Cutting Length: Choose Above
Demonstration Video
W-Series I-Bar Sealer Spring Hook Assembly Maintenance
How to Change the Spring Hook Assembly on the W-Series I-Bar Sealers
What is the spring hook assembly?
The spring hook assembly (Part#SHA-WH) holds the element / heating wire in place on the Sealer Sales W-Series I-Bar Sealers. There are two spring hook assemblies which are found on eather end of the seal arm. Similar to mounting springs, the spring hook assemblies are responsible for keeping the tension on the wire as too much slack will create a poor seal. We recommend changing out the spring hook assembly from time to time. This video will w ...
Sealer Sales Band Maintenance:
How to Change the Spring Hook Assembly on the W-Series I-Bar Sealers
What is the spring hook assembly?
The spring hook assembly (Part#SHA-WH) holds the element / heating wire in place on the Sealer Sales W-Series I-Bar Sealers. There are two spring hook assemblies which are found on eather end of the seal arm. Similar to mounting springs, the spring hook assemblies are responsible for keeping the tension on the wire as too much slack will create a poor seal. We recommend changing out the spring hook assembly from time to time. This video will walk through how to change it out. Make sure your unit is unplugged before performing any maintenance.
- To replace the front spring hook assembly, pull the spring hook assembly down from the I-Bar arm.
2. Disassemble the spring hook assembly.
3. Replace with the new spring hook assembly. Attach the heating element wire to the spring hook assembly. Notice the notch located on the spring hook. Push the spring hook assembly back into the arm of the sealer. Make sure the larger end of the shoulder washer is pushed back into the arm of the sealer as well.
4. To access the back spring hook assembly, remove the back panel.
5. Remove the spring hook assembly by pushing down on the washer and spring.
6. Replace with new spring hook assembly
7. Push the spring hook assembly back into place.
