Holds 210 staples in each head with 1/4" - 9/32" legs
Drives two staples at once automatically with adjustable staple heads
ProductDescription

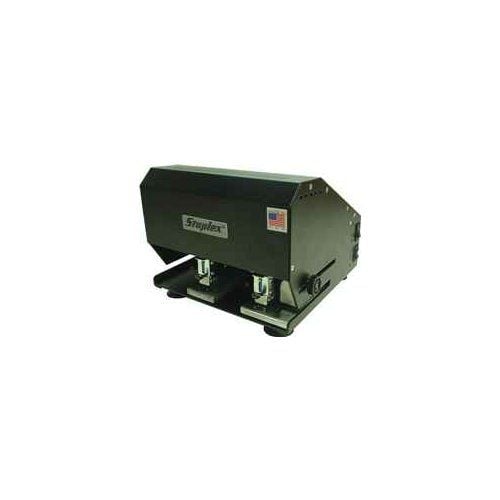

The Staplex S-620NHL Double Head Electric Stapler is designed for commercial and industrial stapling. It drives two staples at once automatically when work is inserted. It can staple up to 40 sheets of 20lb paper and uses Staplex Type DS 1/4" and Type LL Long Leg High Speed Staples. The S-620NHL has an independent ON/OFF switch for each stapling head so that you can operate it as a single head stapler. Optional footswitch and adjustable backstop set is available to maximize the capabilty of this stapler. This Staplex S-620NHL Double Head Electric Stapler is 100% proudly made in U.S.A.
Product Details
Drives two staples at once automatically! A Staplex exclusive!
Cuts stapling time in half.
Fully adjustable center distances between staples from 2" to 7-1/4" (5.1 cm to 18.4 cm).
Evenly spaced staples for each job.
Adjustable depth to 4 1/4" (10.8 cm).
Uses Staplex Type DS 1/4" and Type LL Long Leg High Speed Staples.
Independent ON/OFF switch for each stapling heads to operate also as a single header stapler!
Optional Footswitch and Backstop set available.
All metal construction; modular design.
Excellent for reports, policies, header cards.
Made in U.S.A.
Options: 62N-107 Footswitch and 62N-BS Adjustable Backstop Set (includes one left, one right).
Item Specifications
Product Type: Double Header Electric Stapler
Sheet Capacity: Dual Capacity Double Header (for up to 40 sheets of 20-lb. paper using Staplex Type LL Long Leg Staples)
Throat Depth: 4 1/4" (10.8 cm)
Weight: 21 3/4" lbs. (9.9 kg).
Dimensions: 10" wide, 9-3/4 deep, 8" high (25.4 cm x 24.8 cm x 20.3 cm)
Compatible Accessories: 62N-107 Footswitch
62N-BS Adjustable Backstop Set
Recommended for you
Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Press to skip carousel
Dual Capacity Double Header (for up to 40 sheets of 20-lb. paper using Staplex Type LL Long Leg Staples)
Dual Capacity Double Header (110-125 sheets)
Dual Capacity Triple Header (for up to approx. 40 sheets)
Up to 40 sheets of 20-lb. paper or equivalent
120
Staples
Staplex Type DS High Speed Staples: 1/4" leg / for 2-20 sheets 20-lb. paper or equivalent.
Staplex Type LL Long Leg High Speed Staples: 9/32" leg / for 16-40 sheets 20-lb. paper or equivalent.
Staplex Type DS High Speed Staples: 1/4" leg / for 2-20 sheets 20-lb. paper or equivalent.
Staplex Type LL Long Leg High Speed Staples: 9/32" leg / for 16-40 sheets 20-lb. paper or equivalent.
Staplex Type DS High Speed Staples: 1/4" leg / for 2-20 sheets 20-lb. paper or equivalent.
Staplex Type LL Long Leg High Speed Staples: 9/32" leg / for 16-40 sheets 20-lb. paper or equivalent.
Staplex Type DS High Speed Staples: 1/4" leg / for 2-20 sheets 20-lb. paper or equivalent.
Staplex Type LL Long Leg High Speed Staples: 9/32" leg / for 16-40 sheets 20-lb. paper or equivalent.
Staplex Type RLD Thick Wire Long Leg High Speed Staples: Thick Wire 9/32" leg for use with coated and cover stocks / for 16-40 sheets 20-lb. paper or equivalent.
1/4", 3/8", 1/2", 5/8" and 11/16"
Throat Depth
4 1/4" (10.8 cm)
4 1/4" (10.8 cm)
4 1/4" (10.8 cm)
9-1/4" inches (23.5 cm)
4 inches (10.2 cm)
Dimensions
10" wide, 9-3/4 deep, 8" high (25.4 cm x 24.8 cm x 20.3 cm)
10" wide, 9-3/4 deep, 8" high (25.4 cm x 24.8 cm x 20.3 cm)
10" wide, 9-3/4 deep, 8" high (25.4 cm x 24.8 cm x 20.3 cm)
3-5/8" wide, 17-1/4" deep, 7-3/4" high (9.2 cm x 43.8 cm x 19.7 cm)
10 1/2" Wide, 10 1/4" Deep, 10" High (26.7 cm x 26 cm x 25.4 cm)
