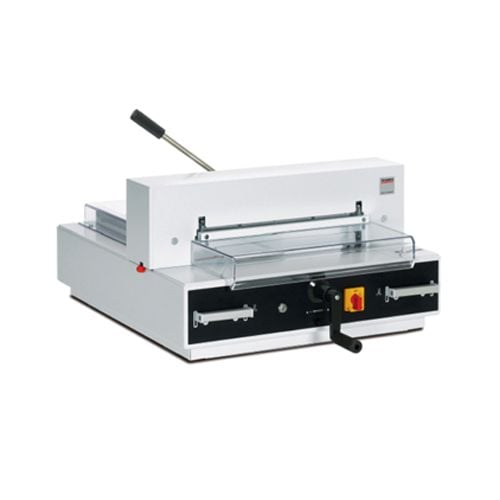

Triumph 4315 16.875" Semi-Automatic Tabletop Paper Cutter
- Cutting Width: 16 7/8"
- Cutting Height: 1 1/2"
- Narrow Cut: 1 3/8"
- Cutting Length Behind Blade: 17"
ProductDescription
Product Details
- Electric blade drive
- Soligen steel blade
- Solid steel blade carrier and adjustable blade guides
- Patented, lever-activated, fast-action clamp
- Precision side guide
- Spindle-guided back gauge with calibrated crank
- Digital display for precise back gauge positioning
- Bright, LED optical cutting line
- All-metal construction
- Optional stand (shown) or cabinet
- UL and C UL approved
- Options: Cabinet (CU0461L), Stand (CU0409L), Cutting Knives (AC0687), Cutting Sticks (AC0695)
Item Specifications
- Type of machine: Semi-automatic
- Cutting Width: 16 7/8"
- Cutting Height: 1 1/2"
- Narrow Cut: 1 3/8"
- Cutting Length Behind Blade: 17"
- Motor Output, Horsepower: 0.6
- Power Supply: 115V, 60Hz
- Actual Machine Weight : 225
- Shipping Length : 34
- Shipping Width: 30
- Shipping Height: 18
- Shipping (Web) Weight: 231 lbs
- Manufacturer's Warranty: 1-year limited Manufacturer's Warranty, excluding wearables
Demonstration Video
Triumph 4315 Video Overview
First of all, it has an electric measurement guide for the back stop for very precise cuts.
You’ll see it goes all the way to about 17 inches—which you can also change to centimeters by sticking something like a paperclip into this little hole.
Pulled out, the handle is loose to avoid any accidental adjustments. Push it in to rotate it and change the measurements.
It also has a key locking system, so if you want to restrict access, and a lovely on and off switch.
In order to make a cut, it has a two hand operation as an ...
This is the Triumph 4315 Semi-Automatic Tabletop Cutter!
First of all, it has an electric measurement guide for the back stop for very precise cuts.
You’ll see it goes all the way to about 17 inches—which you can also change to centimeters by sticking something like a paperclip into this little hole.
Pulled out, the handle is loose to avoid any accidental adjustments. Push it in to rotate it and change the measurements.
It also has a key locking system, so if you want to restrict access, and a lovely on and off switch.
In order to make a cut, it has a two hand operation as an extra safety feature.
If you turn on the machine and it’s flash some unusual stuff, it just means that it doesn’t know where the back gauge is positioned. Reset it all the way forward, then you’re good to go.
You’ll see the back gauge in action here.
Compared to a ream of paper, it’s close, but not enough. It should do well to cut about 300 pages. A good guide to use is the paper knock-up block for a maximum stack size.
There we go, not use the block to even your pages together.
There is a laser light to show you exactly where your cut will happen.
With my stack ready, I’m going to lower the safety shield, and and bring down the clamp. Give it a light tap to lock it in place.
Now with both hands, hold the levers down until the cut is finished, then let go. Now I have a very cleanly cut stack of pages.
For consistent cuts, there is a cutting mat should be changed from time to time, which can be rotated around for 4 clean positions, then flipped and rotated again for a total of 8 positions.
It has a cutting width that is just below 17 inches.
Provided accessories include, the knock-up block, a few tools, and a blade replacement holder.
If you are getting an incomplete cut, adjust this knob to lower—or raise—the blade.
Remove/Change the Blade
You’ll have to find a local business to sharpen the blade for you, and it is a common practice to have a spare blade for when the other one is being sharpened.
So, now I’ll show you how to remove the blade so it can be sharpened.
All of the tool you see are provided with the cutter. We’re primarily going to use the hex-bolt tool and the blade holder.
If you line up the blade holder, you’ll see the two handles line up with two screws that are holding the blade to the machine. We’ll sta ...
This is how to Remove and Change the Blade on the Triumph 4315 Stack Cutter!
You’ll have to find a local business to sharpen the blade for you, and it is a common practice to have a spare blade for when the other one is being sharpened.
So, now I’ll show you how to remove the blade so it can be sharpened.
All of the tool you see are provided with the cutter. We’re primarily going to use the hex-bolt tool and the blade holder.
If you line up the blade holder, you’ll see the two handles line up with two screws that are holding the blade to the machine. We’ll start by unscrewing these two screws. Then fit the holder up against the blade, and twist the handles to latch the holder actually onto the blade.
Now completely unscrew the other three bolts. With all the bolts off, the blade is freed from the machine, which we can safely remove from here. Using the provided tools and this process protects yourself from getting cut on the very sharp blade.
At this point, putting on another blade should be pretty self explanatory, but there is a trick to lining up the blade for an even and complete cut. Do not tighten the bolts very tight to start. With the blade secured in place, but loose still, make a cut without any pages. This should push the blade into an parallel position with the cutting bar.
Now tighten it and do a test with a single page along the entire length. If it works, then you’re done!
If your blade is not aligned at that point, you’ll get an incomplete cut like this. If it still won’t cut the sheet, then make some micro adjustments on the right to lower the blade position a little more.
Staff Review
MBM Triumph 4315 Semi-Automatic Tabletop Cutter Review
Have you been looking for a heavy-duty paper cutter that can withstand a lot of use? If so, there are many devices out there but one of the best is the MBM Triumph 4315. This is a semi-automatic cutter that has a lot of special features and it makes cutting your paper a snap. Check out this machine's strengths and weaknesses:
Strengths:
- The 4315 is a terrific machine to use if you want to be able to slice through a good amount of paper at once. When you use this device, you can cut up to 1.5" of paper per pass, so it won't take you very long to prepare your materials for special projects.
- This shredder is great for both small and large cutting jobs thanks to its cutting width of 16-7/8". The cutting length behind the blade is 17" and there's 9" of space in front of it, so you won't have any trouble working with paper of varying sizes.
- The 4315 is pretty safe to use because it has a Safety Cutting System. This system includes transparent safety guards at both the back and the front of the device. When you cut your materials, you need to use both hands to operate the machine so they won't be anywhere near the blade. Also, there is a lock and key feature so you will be able to prevent unauthorized use. While these safety features are helpful, you should still exercise caution when using this device. After all, it's better to be safe than sorry.
- Using this cutter is pretty easy once you get the hang of it. The device has an external blade depth adjustment feature as well as a back gauge that can be manually adjusted. There is even a an LED cutting line so you will be able to see exactly where your paper will be cut.
- Overall, the 4315 is very durable and it features a Solingen steel blade for your convenience. There are other metal parts so you will definitely be able to get a lot of use out of this device over the years.
Weaknesses:
- The 4315 is a heavy-duty machine, so it might not be the best choice if you just need a cutter for occasional use. Luckily, there are plenty of rotary trimmers and guillotine cutters available that are suitable for smaller jobs.
- This cutter is very large, so it's not recommended for small work areas. The machine's approximate dimensions are 35" (depth) x 25" (width) x 14" (height), so you should use it with a cabinet or stand to keep your work surfaces clear. Unfortunately, the stands and cabinets available for this device are sold separately, so you will need to put out extra money to get one.
The MBM Triumph 4315 is a terrific paper cutter and it's a great choice if you need a device for heavy-duty use. This machine has an excellent cutting capacity, great safety features, and it's durable so you will be able to get a lot of use out of it. You just need to be aware that this device is large and that you should consider purchasing a stand or cabinet for it. If the 4315 sounds like the right cutter for your workplace, take a look at it today.
Main Features
HIGH QUALITY BLADES All Triumph cutter models feature high quality, German steel blades. |
FAST-ACTION CLAMP Swing and bump the lever on the fastaction clamp to tighten, then cut. |
EASY CUT BLADE ACTIVATION BARS Patented EASY CUT blade activation bars provide true two-hand operation (models 4315 and above). |
OPTICAL CUTTING LINE The optical cutting line indicator with bright LEDs ensures perfect alignment of cutting marks (models 4315 and above). |
FRONT TABLE DIGITAL DISPLAY A digital measurement display allows precise positioning of back gauge (models 4315–4850). |
Compare to Similar Paper Cutters
Model Name | Triumph 4315 | Triumph 4300 | Triumph 4305 | Triumph 4705 | Triumph 4350 | Triumph 4815 | Triumph 4850 |
---|---|---|---|---|---|---|---|
Model | |||||||
Part Number | CU0451 | MB-4300 | MB-4305 | MB-4705 | MB-4350 | MBM-CU0418 | MBM-4850 |
Cutting Width | 16 7/8" | 16 7/8" | 16 7/8" | 18 3/4" | 16 7/8" | 18 5/8" | 18 5/8" |
Cutting Height | 1 1/2" | 3/4" | 1 1/2" | 2 3/4" | 1 1/2" | 3" | 3" |
Narrow Cut | 1 3/8" | 1 1/2" | 1 5/16" | 1 3/16" | 1 3/8" | 1" | 1" |
Cutting Length Behind Blade |
17" | 13 3/8" | 17" | 18" | 17" | 18" | 18" |
Table Length in Front of Blade |
6 1/4" | 6 1/4" | |||||
Dimensions (D x W x H) | 34 1/4" x 25" x 14" (42 3/4 H with stand, 42 1/2 H with cabinet) |
22 1/2" x 28" x 18 1/2" (47 1/2 H with stand, 46 3/4 H with cabinet) |
34 5/8" x 34 5/8" x 15 3/4" (45 1/4 H with stand, 44 H with cabinet) |
35" x 39" x 23" (50 H with stand) |
34 1/4" x 25" x 14" (42 3/4 H with stand, 42 1/2 H with cabinet) |
41 1/2" x 30 x 55 1/2" (53 W with side tables) |
41 1/2" x 30" x 51" (53" W with side tables) |
Replacement Blades and Accessories
Product Name | Item Number |
Standard Replacement Blade For MBM-Ideal-Triumph 4205,4215,4225 EP,4250, 4300, 4305,4315,4350 | JH42213S |
Ideal MBM Triumph 4205, 4215, 4225 EP, 4250, 4300, 4305, 4315, 4350 Replacement Blades | MB-AC0687 |
Standard Cutting Sticks for MBM-Ideal-Triumph 4205, 4215, 4225EP, 4250, 4305,4315,4350, 435M/435E - 12pk | JHCS8402 |
Premium Red Cutting Sticks for MBM-Ideal-Triumph 4205, 4215, 4225EP, 4250, 4305,4315,4350, 435M/435E - 12pk | JHCS8403 |
Cutter Sticks For Triumph 4205 4215 4225 EP 4250 4315 Cutters - 0695 | MB-AC0695 |
MBM Triumph Stand for 4205, 4215, 4250, 4300, 4305, 4315, and 4350 Cutters - 0409 | MB0409 |
MBM Triumph Cabinet for 4205, 4215, 4250, 4300, 4305, 4315, and 4350 Cutters - 0461 | MB0461 |
