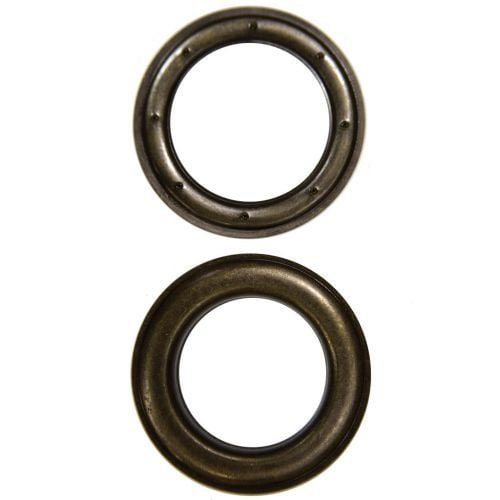

#12 (1-1/2") Gun Metal Grommets - 25/Pack
FAQ: 0 Questions, 0 Answers
0 Q&As
Brand:
ClipsShop
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# 05GROMMET112GM
- Flange Diameter: 2.46" (62.6mm)
- Hole Size: 1.5" (40mm)
- Overall Length: 0.48" (12.2mm)
- Neck Length: 0.42" (10.6mm)
ProductDescription
For strong and long-lasting grommets that will never rust consider using Gun Metal Grommets. Even when exposed to outdoor elements, these grommets will stand wear and tear as it is made from high quality solid brass . These are compatible with ClipsShop grommet presses and are available in a range of sizes that will go perfectly with any material or project that you are working on. Self-piercing and large sized grommets are the available options. Self-piercing grommets saves time and effort as it does not require a separate tool for punching holes, this reduces the two-step process of punching and attachment in one quick and simple step. Smaller sized grommets from sizes #XX00 through #5.5 are self-piercing. Larger sized grommets including sizes #7.5, #8.5 and #12 are not self-piercing and require separate dies to punch the hole and set the grommet. Gun metal finish give a rugged and burnished finish that goes well with industrial aesthetics. These grommets are perfect for crafting, fashion design, creative book binding, home decor, fabric displays and so much more. Get Gun Metal Grommets for an attractive and durable finish!
Product Details
- Product Type: Grommets
- Material: Solid Brass
- Compatible Equipment: Varies Depending on Grommet (Check the Compatibility Chart)
- Self-Piercing: Yes [Sizes #XX00 to #5.5], No [Sizes #7.5 to #12]
- Maximum Grommet Size: #2 [3/8"]
- Throat Depth: 3 1/4" [80mm]
- Dimensions: 1" D x 5 1/4" W x 10 1/2" H (6 1/2" Lever Length)
- Manufacturer's Warranty: 1 Year Limited [Defective]
Compatibility Chart
Die Size | CSHAP-1 | CSTEP-1 | CSTEP-2 | CSTON-1 | CSBUR-1 | CSTIDY-41 (w/ Foot Pedal, w/ Push Button, w/ Push Button and Foot Pedal) | CSPIC-2 | CSPIC-3 |
---|---|---|---|---|---|---|---|---|
#XX00 (1/8") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#X00 (11/64") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#00 (3/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#0 (1/4") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#1 (5/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
#2 (3/8") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
#3 (7/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
#4 (1/2") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
#5.5 (11/16") | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ||
#7.5 (1") | ✓ | ✓ | ✓ | |||||
#8.5 (1 1/8") | ✓ | ✓ | ✓ | |||||
#12 (1 1/2") | ✓ | ✓ | ✓ |
Parts of a Grommet
Size | Grommet | Washer | |||||
---|---|---|---|---|---|---|---|
Flange Diameter | Hole Size | Overall Length | Neck Length | Flange Diameter | Inside Diameter | Thickness (with form) | |
#XX00 (1/8") | 0.28" (7mm) | 0.125" (3.4mm) | 0.16" (4.1mm) | 0.13" (3.4mm) | 0.31" (8mm) | 0.18" (4.5mm) | 0.03" (0.7mm) |
#X00 (11/64") | 0.33" (8.5mm) | 0.17" (4.4mm) | 0.2" (5.2mm) | 0.17" (4.3mm) | 0.33" (8.5mm) | 0.2" (5.2mm) | 0.03" (0.8mm) |
#00 (3/16") | 0.37" (9.4mm) | 0.1875" (5mm) | 0.2" (5.2mm) | 0.17" (4.3mm) | 0.38" (9.6mm) | 0.23" (5.8mm) | 0.04" (0.9mm) |
#0 (1/4") | 0.45" (11.5mm) | 0.25" (5.8mm) | 0.22" (5.5mm) | 0.18" (4.5mm) | 0.45" (11.5mm) | 0.27" (6.8mm) | 0.04" (1mm) |
#1 (5/16") | 0.59" (15mm) | 0.3125" (8mm) | 0.24" (6mm) | 0.2" (5.1mm) | 0.59" (15mm) | 0.37" (9.4mm) | 0.04" (1mm) |
#2 (3/8") | 0.75" (19mm) | 0.375" (9.4mm) | 0.23" (5.9mm) | 0.19" (4.9mm) | 0.74" (18.8mm) | 0.42" (10.6mm) | 0.04" (1.1mm) |
#2 LN (3/8") "Long Neck" |
0.75" (19mm) | 0.375" (9.4mm) | 0.23" (5.9mm) | 0.35" (9mm) | 0.31" (7.8mm) | 0.42" (10.6mm) | 0.04" (1.1mm) |
#3 (7/16") | 0.96" (24.5mm) | 0.4375" (11.6mm) | 0.23" (5.9mm) | 0.18" (4.6mm) | 0.96" (24.5mm) | 0.53" (13.5mm) | 0.06" (1.6mm) |
#3 LN (7/16") "Long Neck" |
0.96" (24.5mm) | 0.4375" (11.6mm) | 0.31" (7.9mm) | 0.26" (6.7mm) | 0.96" (24.5mm) | 0.53" (13.5mm) | 0.06" (1.6mm) |
#4 (1/2") | 1.04" (26.3mm) | 0.5" (12.7mm) | 0.24" (6mm) | 0.18" (4.6mm) | 1.04" (26.3mm) | 0.57" (14.5mm) | 0.06" (1.5mm) |
#5.5 (11/16") | 1.12" (28.5mm) | 0.6875" (16.7mm) | 0.27" (6.8mm) | 0.2" (5.2mm) | 1.1" (28mm) | 0.75" (19mm) | 0.05" (1.2mm) |
#7.5 (1") | 1.73" (44mm) | 1" (25mm) | 0.39" (9.8mm) | 0.32" (8.2mm) | 1.73" (44mm) | 1.03" (26.2mm) | 0.08" (2.1mm) |
#8.5 (1 1/8") | 1.89" (48mm) | 1.125" (28mm) | 0.41" (10.3mm) | 0.32" (8.2mm) | 1.89" (48mm) | 1.18" (30mm) | 0.07" (1.7mm) |
#12 (1 1/2") | 2.46" (62.6mm) | 1.5" (40mm) | 0.48" (12.2mm) | 0.42" (10.6mm) | 2.46" (62.4mm) | 1.68" (42.7mm) | 0.06" (1.6mm) |
