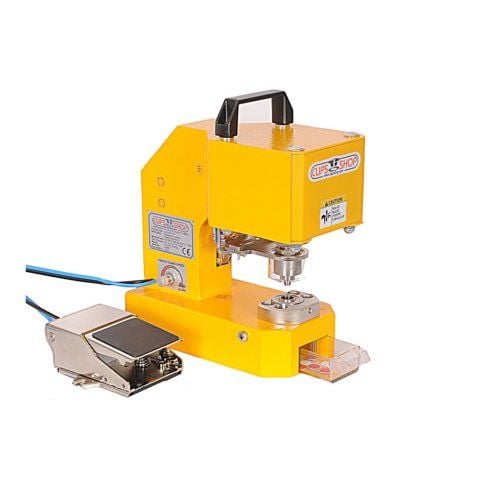

ClipsShop CSTIDY-41 Portable Pneumatic Grommet Press with Foot Pedal
|Product Name||Item Number||Price||Qty|
|ClipsShop CSTIDY-41 Portable Pneumatic Grommet Press with Push Button||04GRCSTIDY41B||
|ClipsShop CSTIDY-41 Portable Pneumatic Grommet Press with Push Button and Foot Pedal||04GRCSTIDY41A||
|Adjustable Work Table for CS-TIDY Series Presses||04GRCSTIDY41AWT||
|Filter Regulator Lubricator CS-TIDY Series Presses||04GRCSTIDY41FRL||
|EyeLED Red LED Positioning Pointer for CS-TIDY Series||04GRCSTIDY41LED||
|Upper Die Adjustable Height Adapter for CS-TIDY-41 Grommet Presses||04GRCSTIDY41UDHA||
|Mobile Cart for CS-TIDY Series Presses||04GRCSTIDY41WMC||
The CSTIDY-41 Pneumatic Grommet Press with Foot Pedal transforms grommeting into an easy job you can complete faster and with more precision. The design puts a focus on convenience. Made with a lightweight, portable build, the machine is also easy and safe to use. It applies self-piercing or self-cleaning grommets to a wide range of materials like vinyl, corrugated plastic, industrial textiles, chipboard, and more. The unit doesn’t require an electrical source. An OSHA-compliant finger guard, slug collection drawer for the self-cleaning grommet dies, and a heavy-duty build complete the design. Also avilable in other two configurations: comes with push button only (CSTIDY-41B), or with foot pedal and push button (CSTIDY-41A).
- Versatile, portable, durable. Mount to a bench or worktable, attach to a mobile cart, or use the built-in carrying handle to take on site or walk around large items, compatible with the GrommetSniper Alignment Fixture for consistent placement.
- Equipped with pneumatic foot pedal. All controls can be set up for right-hand or left-hand operation.
- Simple and safe. Designed with a built-in mechanical finger guard for OSHA-compliant safety. No audible alarms, no electricity required.
- Powered by standard shop air, it has a dial for variable speed operation.
- Slug collection drawer for self-cleaning grommets
- Interchangeable dies - Standard self-piercing dies from #XX00 up to size #5.5 are compatible with the CS-TIDY-41 machine. Special self-cleaning dies are available in popular sizes specific to the CS-TIDY-41.
- Suitable for vinyl, corrugated plastic, industrial textiles, fabric, chipboard, poster board, and more
- Heavy-duty build with a durable caterpillar yellow powder-coated finish
- 1 year Manufacturer's Warranty against defects.
- Optional Accessory's:
- Filter, Regulator, Lubricator (FRL) - Provides accurate pressure to the grommet press along with clean air to the tool. This option is recommended to extend the life of the tool.
- Adjustable Height Table - Specifically designed for the CS-TIDY series of grommet presses.
- Height adjustable to position what best suits the operator and/or the material.
- 3 different press positions depending on whether the user wants the die flush with the table or a little higher to accommodate the GrommetSniper or all the way up as shown.
- Built-in bins for easy access to grommets & washers during use.
- Angled, adjustable foot-pedal mount for operator comfort.
- EyeleD red LED positioning pointer - Provides optical laser so the operator knows exactly where to place grommets.
- Mobile cart to wheel the CS-TIDY machines around large work (rather than trying to move the work through the stationary press).
- The "Grommet Sniper" improves the speed and accuracy while placing multiple grommets on the same piece of work. This industry first grommet alignment fixture is made exclusively to fit the CSTEP-2 professional hand press or CS-TIDY-41 pnumatic press. It lets users precisely space grommets 5/8" to 3" from the edge of their substrate and uniformly locate the distance between grommets from 2" to 24" apart. Simple to install and easy to use, this durable steel alignment fixture mounts onto the base and is fully adjustable. Featuring laser etched inch and metric markings for ease of adjustment, the GrommetSniper requires no special tools and once set can be locked into place using finger wing-nuts.
- Applicable Grommet Sizes: #5.5, #3, #3LN, #2, #2LN, #1, #0, #00, #X00, #XX00
- Actual Machine Dimensions: 11 1/2" x 10 1/2" x 5 1/2"
- Actual Machine Weight : 15 lbs
- Shipping (Web) Weight: 16.5 lbs
- Compatible Accessories:
- Manufacturer's Warranty: 1 Year
