9mm Clear 4:1 Pitch Spiral Binding Coil - 100pk
FAQ: 0 Questions, 0 Answers
0 Q&As
Brand:
MyBinding
FAQ: 0 Questions, 0 Answers
0 Q&As
Item# P100-09-12
- Length: 12" Letter (or choose other length)
- Approximate Capacity: 65 Sheets (20# Bond)
- Hole Pattern: 44 Hole
- Quantity: 100 Per Box
Product Name
Item Number
Price
Qty
ProductDescription

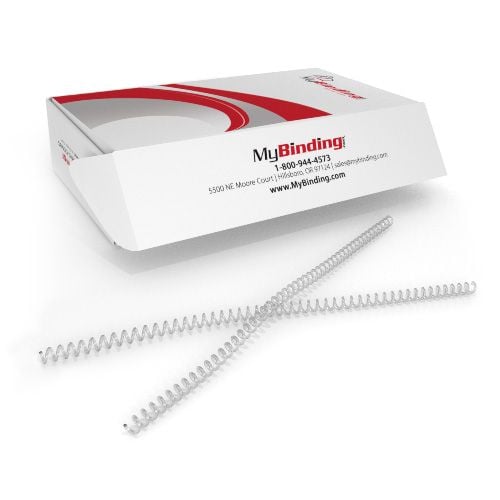

This 9mm Clear spiral binding coil is designed for use in any 4:1 pitch spiral coil binding machine . Made from the highest quality food grade PVC plastic our ColorCoil offers a quality, professional look while binding documents up to 2" thick. Although these particular coils are Clear we carry 4:1 pitch coil in 45 different colors and in sizes up to 50mm in diameter. These 9mm coils are designed to bind documents that are up to 7mm (1/4") including covers. Plus, all of our Clear binding coils are CPSIA and ROHS compliant and are made in either Canada or the USA (not China).
Product Details
- Product Type: Coil Binding Spines
- Color: Clear
- Diameter: 9mm
- Pitch: 4:1 (4 Holes Per Inch)
- Approximate Capacity: 65 Sheets (20# Bond)
- Length: 12" Letter (or choose other length)
- PMS Color: N/A
- Quantity: 100 Per Box
- MyBinding Part Number: P100-09-12
Demonstration Video
Everything There Is To Know About Spiral Coil Video
Transcript :
Welcome to MyBinding video. This is everything you need to know about spiral coil. First, there are sizes ranging from a 6mm diameter all the way to 50mm. The smallest size can hold up to 30 pages and the largest can hold up to 444. A great benefit to spiral coil is that the pages lay flat. Better yet, they fold nicely back to back and the choices of color is one of the largest in any type of binding. Standard size coil has a 4:1 pitch, which is compliant with its respected hole punches. The standard length of each coil is 12 inches. Coil should always be longer than the pages you're binding. ...
Welcome to MyBinding video. This is everything you need to know about spiral coil. First, there are sizes ranging from a 6mm diameter all the way to 50mm. The smallest size can hold up to 30 pages and the largest can hold up to 444. A great benefit to spiral coil is that the pages lay flat. Better yet, they fold nicely back to back and the choices of color is one of the largest in any type of binding. Standard size coil has a 4:1 pitch, which is compliant with its respected hole punches. The standard length of each coil is 12 inches. Coil should always be longer than the pages you're binding. There are also custom lengths up to 36 inches. With the extra length on each end, you finish off your book with special wire cutting crimpers. Once you're done, you'll have yourself a spiral coil bound book. For more demos, reviews and how-to's, go to MyBinding.com.
Coil Sizing Guide
Coil Diameter | Fractional Equivalent (approx.) | Maximum Thickness of Document including Covers | Sheet Capacity (20# Bond) |
---|---|---|---|
6mm | 1/4" | 4mm - 5/32" | 30 |
7mm | 9/32" | 5mm - 3/16" | 42 |
8mm | 5/16" | 6mm - 7/32" | 54 |
9mm | 11/32" | 7mm - 1/4" | 65 |
10mm | 3/8" | 8mm - 5/16" | 75 |
11mm | 7/16" | 9mm - 11/32" | 85 |
12mm | 15/32" | 10mm - 3/8" | 92 |
13mm | 1/2" | 11mm - 13/32" | 105 |
14mm | 9/16" | 12mm - 7/16" | 115 |
15mm | 19/32" | 13mm - 1/2" | 125 |
16mm | 5/8" | 14mm - 17/32" | 135 |
17mm | 21/32" | 15mm - 9/16" | 142 |
18mm | 11/16" | 16mm - 5/8" | 155 |
19mm | 23/32" | 17mm - 11/16" | 160 |
20mm | 3/4" | 18mm - 23/32" | 172 |
22mm | 7/8" | 20mm - 3/4" | 190 |
23mm | 15/16" | 21mm - 27/32" | 200 |
25mm | 1" | 22mm - 7/8" | 220 |
28mm | 1-1/8" | 25mm - 1" | 250 |
30mm | 1-3/16" | 27mm - 1 1/16" | 270 |
32mm | 1-1/4" | 29mm - 1 1/8" | 280 |
35mm | 1-3/8" | 32mm - 1 1/4" | 310 |
38mm | 1-1/2" | 34mm - 1 5/16" | 330 |
42mm | 1-11/16" | 38mm - 1 1/2" | 350 |
45mm | 1-3/4" | 41mm - 1 5/8" | 390 |
50mm | 2" | 46mm - 1 13/16" | 440 |
