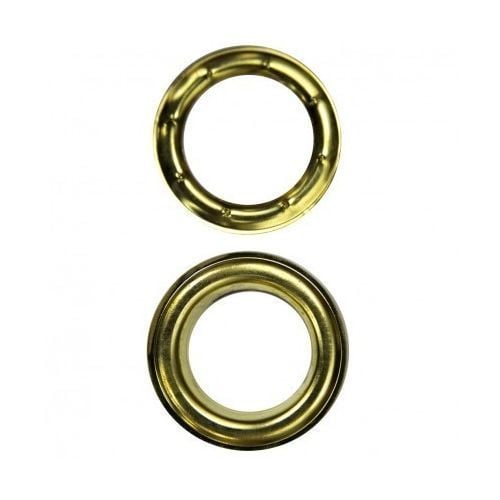

Brass Grommets

Starting at

$23.90

pay /mo or Net30*
Item# 05GROMMETBR-GRP
  • Choose from #XX00 1/8" through #12 1.5" Grommet Size
  • Self-Piercing: Yes [Sizes #XX00 to #5.5], No [Sizes #7.5 to #12]
  • Solid brass to prevent rusting
  • Natural brass finish
Product Name
Item Number
Price
Qty
05GROMMET18
$23.90
05GROMMETX00B
$25.79
05GROMMET00
$27.49
05GROMMET14BR
$28.49
05GROMMET516
$36.49
05GROMMET38
$43.19
05GROMMET2LNB
$53.69
05GROMMET3BR
$57.79
05GROM12BR
$69.69
05GROM8680211765435
$72.88
05GROM1116BR
$85.49
05GROMMET1BR
$66.99
05GROMMET118BR
$69.69
05GROMMET112BR
$45.79

ProductDescription

For strong and long-lasting grommets that will never rust consider using Brass Grommets. Even when exposed to outdoor elements, these grommets will stand wear and tear as it is made from high quality solid brass . These are compatible with ClipsShop grommet presses and are available in a range of sizes and colors that will go perfectly with any material or project that you are working on. Self-piercing and large sized grommets are the available options. Self-piercing grommets saves time and effort as it does not require a separate tool for punching holes, this reduces the two-step process of punching and attachment in one quick and simple step. Smaller sized grommets from sizes #XX00 through #5.5 are self-piercing. Larger sized grommets including sizes #7.5, #8.5 and #12 are not self-piercing and require separate dies to punch the hole and set the grommet. This type of grommet is ideal for thicker materials and heavy duty industrial applications. Available colors include brass, antiqued brass for a rustic look, nickel silver, and black oxide that is close to a dark charcoal. Unique colors such as satin nickel, satin brass, gun metal, copper oxide, and white are also available in select sizes making it perfect for crafting, fashion design, creative book binding, home decor, fabric displays and so much more. It is sold in 100/pack and 500/pack. Get Brass Grommets for an attractive and durable finish!

Product Details

  • Product Type: Grommets
  • Material: Solid Brass
  • Compatible Equipment: Varies Depending on Grommet (Check the Compatibility Chart)
  • Self-Piercing: Yes [Sizes #XX00 to #5.5], No [Sizes #7.5 to #12]
  • Maximum Grommet Size: #2 [3/8"]
  • Throat Depth: 3 1/4" [80mm]
  • Dimensions: 1" D x 5 1/4" W x 10 1/2" H (6 1/2" Lever Length)
  • Manufacturer's Warranty: 1 Year Limited [Defective]

Compatibility Chart

Die Size CSHAP-1 CSTEP-1 CSTEP-2 CSTON-1 CSBUR-1 CSTIDY-41 (w/ Foot Pedal, w/ Push Button, w/ Push Button and Foot Pedal) CSPIC-2 CSPIC-3
#XX00 (1/8")
#X00 (11/64")
#00 (3/16")
#0 (1/4")
#1 (5/16")
#2 (3/8")
#3 (7/16")
#4 (1/2")
#5.5 (11/16")
#7.5 (1")
#8.5 (1 1/8")
#12 (1 1/2")

Parts of a Grommet

Size Grommet Washer
Flange Diameter Hole Size Overall Length Neck Length Flange Diameter Inside Diameter Thickness (with form)
#XX00 (1/8") 0.28" (7mm) 0.125" (3.4mm) 0.16" (4.1mm) 0.13" (3.4mm) 0.31" (8mm) 0.18" (4.5mm) 0.03" (0.7mm)
#X00 (11/64") 0.33" (8.5mm) 0.17" (4.4mm) 0.2" (5.2mm) 0.17" (4.3mm) 0.33" (8.5mm) 0.2" (5.2mm) 0.03" (0.8mm)
#00 (3/16") 0.37" (9.4mm) 0.1875" (5mm) 0.2" (5.2mm) 0.17" (4.3mm) 0.38" (9.6mm) 0.23" (5.8mm) 0.04" (0.9mm)
#0 (1/4") 0.45" (11.5mm) 0.25" (5.8mm) 0.22" (5.5mm) 0.18" (4.5mm) 0.45" (11.5mm) 0.27" (6.8mm) 0.04" (1mm)
#1 (5/16") 0.59" (15mm) 0.3125" (8mm) 0.24" (6mm) 0.2" (5.1mm) 0.59" (15mm) 0.37" (9.4mm) 0.04" (1mm)
#2 (3/8") 0.75" (19mm) 0.375" (9.4mm) 0.23" (5.9mm) 0.19" (4.9mm) 0.74" (18.8mm) 0.42" (10.6mm) 0.04" (1.1mm)
#2 LN (3/8")
"Long Neck"
0.75" (19mm) 0.375" (9.4mm) 0.23" (5.9mm) 0.35" (9mm) 0.31" (7.8mm) 0.42" (10.6mm) 0.04" (1.1mm)
#3 (7/16") 0.96" (24.5mm) 0.4375" (11.6mm) 0.23" (5.9mm) 0.18" (4.6mm) 0.96" (24.5mm) 0.53" (13.5mm) 0.06" (1.6mm)
#3 LN (7/16")
"Long Neck"
0.96" (24.5mm) 0.4375" (11.6mm) 0.31" (7.9mm) 0.26" (6.7mm) 0.96" (24.5mm) 0.53" (13.5mm) 0.06" (1.6mm)
#4 (1/2") 1.04" (26.3mm) 0.5" (12.7mm) 0.24" (6mm) 0.18" (4.6mm) 1.04" (26.3mm) 0.57" (14.5mm) 0.06" (1.5mm)
#5.5 (11/16") 1.12" (28.5mm) 0.6875" (16.7mm) 0.27" (6.8mm) 0.2" (5.2mm) 1.1" (28mm) 0.75" (19mm) 0.05" (1.2mm)
#7.5 (1") 1.73" (44mm) 1" (25mm) 0.39" (9.8mm) 0.32" (8.2mm) 1.73" (44mm) 1.03" (26.2mm) 0.08" (2.1mm)
#8.5 (1 1/8") 1.89" (48mm) 1.125" (28mm) 0.41" (10.3mm) 0.32" (8.2mm) 1.89" (48mm) 1.18" (30mm) 0.07" (1.7mm)
#12 (1 1/2") 2.46" (62.6mm) 1.5" (40mm) 0.48" (12.2mm) 0.42" (10.6mm) 2.46" (62.4mm) 1.68" (42.7mm) 0.06" (1.6mm)
