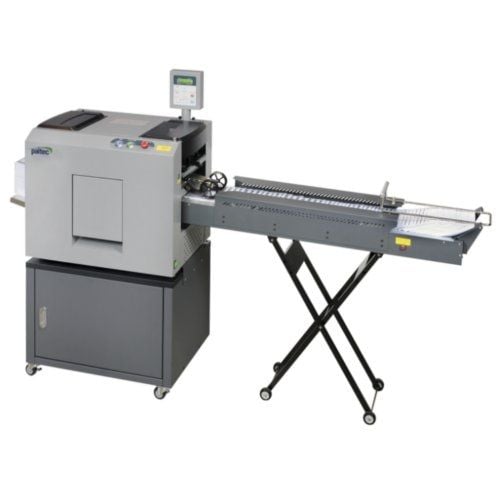

This Paitec MX17000 Heavy Duty Desktop Pressure Sealer is the highest volume, heavy duty pressure sealer with adjustable speed of 11,000- 17,000 pieces per hour processing and with a monthly duty volume of 500,000 pieces. It can accommodate forms up to 14" deep and up to 9" wide. The Paitec MX17000 features a heavy duty four roller sealing unit, Reverse Friction Rollers to auto correct double feeds, an auto-lift feed tray which holds up to 1,400 pressure seal forms, and an optional 50" conveyor which holds up to 1,200 completed forms. Say good bye to traditional pressure sealing with Paitec MX17000 Heavy Duty Desktop Pressure Sealer.
Product Details
Adjustable Speed. Allows operator to work at a comfortable speed and quiet environment.
Heavy Duty Cycle. Quality-engineered parts allow the MX17000 to process up to 500,000 sheets per month.
Reverse (RFR) Friction Roller. Unique RFR system, automatically detects, singulates, and corrects doubles without any operator intervention for increased productivity.
Four Roller Sealing Unit. A second pair of sealing rollers enables enhanced sealing quality at higher speed.
Optional 50" conveyor which holds up to 1,200 completed forms.
Item Specifications
Form Size: Depth - Up to 14"/ Width - Up to 9"
Input Tray: Up to 1,400 Pressure Seal Forms
Speed: Up to 17,000 Per Hour
Fold Setting: Quick Set Manual
Paper Weights: 20 - 30 Lb.
Infeed Type: Reverse Friction Roller With Cooling Fan
Actual Machine Dimensions: 27" x 20" x 43" (With Cabinet)
Actual Machine Weight : 350 lbs
Shipping Length : 22
Shipping Width: 24
Shipping Height: 24
Shipping (Web) Weight: 365 lbs
Manufacturer's Warranty: 6 Months
Demonstration Video
Paitec MX17000 Heavy Duty Volume Machine Video
Transcript :
Paitec USA MX17000
Heavy duty volume machine with an included cabinet.
Elevator feed table holds up to 1,400 pressure seal forms at a time
Processes 11” or 14” into Z, EZ, C, V, and custom folds
Adjustable speed from 11,000 to 17,000 forms per hour and up to 500,000 pieces per month
Exclusive Reverse Friction Feed System eliminates most double feeds
Two sets of heavy duty solid metal seal rollers for maximum sealing at high speeds
Ultrasonic sensor detects double feeds and pauses machine
Built-in separator fan with variable speed control enhances feeding process
Available long conve ...
Paitec USA MX17000
Heavy duty volume machine with an included cabinet.
Elevator feed table holds up to 1,400 pressure seal forms at a time
Processes 11” or 14” into Z, EZ, C, V, and custom folds
Adjustable speed from 11,000 to 17,000 forms per hour and up to 500,000 pieces per month
Exclusive Reverse Friction Feed System eliminates most double feeds
Two sets of heavy duty solid metal seal rollers for maximum sealing at high speeds
Ultrasonic sensor detects double feeds and pauses machine
Built-in separator fan with variable speed control enhances feeding process
Available long conveyor holds up to 1,000 completed forms
Convenient aggregation button for end of job collection
Conveyor has variable speed and multiple sensors for smooth operation
Available vertical stacker or short conveyor hold up to 350 completed forms
Vertical stacker holds completed forms in same sequence as feed table
Manual feed slot for occasional pre-folded or damaged forms
Heavy duty Start/Stop Button and convenient Single Sheet Test button
Easy to Change Gap Setting for Seal Rollers
Master control panel with convenient item counter and Jam Release button
Easy to access fold and seal rollers for occasional cleaning and jam removal
