Product Description

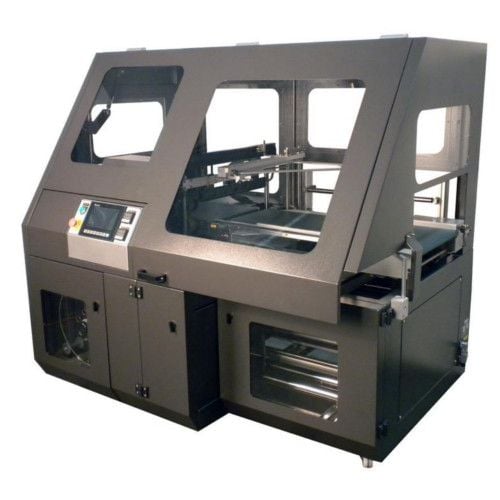

The Preferred Pack Int-20 2 Belt Fully Automatic Side Sealer features "State of the Art" technology. Includes Delta PLC with 7" color touch screen control panel, 12 Program memory, multiple languages, cycle speeds of up to 49 ppm, 20" cross seal head design for greater flexibility and taller packages. No maintenance side seal wheels, will seal polyolefin and polyethylene films. Exclusive "APA" Automatic Product Adjustment, eliminates all crank handles and features programmed motorized adjustments of the infeed conveyo and inverting head, making product change overs simple, fast and accurate. Variable speed drive 0-95 fpm, front load film mount, pin wheel hole punch, self diagnostic color touch screen, and self-contained scrap removal system with built in alarm, are just a few features that make this machine the best in the industry. Reliability, simplicity and ease of maintenance should provide years of dependable performance at low operational cost. The Int-20 2 belt side sealer is an extremely versatile machine capable of running a wide variety of industrial or consumer products. The Int-20 2 belt side sealer features a motorized center seal that allows for precise seam placement and taller package heights.
Product Details
- Seal Area: 20" Cross Seal x 6"H
- Machine Speed: Up to 40 ppm
- Electrical: 220V, 1 Phase, 20 amp
- Air: 1 cfm @ 80 psi
- Minimum PKG Size: 2.5"W x 3"L
- Maximum PKG Size: Inf. L x 16"W x 6"H
- Maximum Film Width: 24"
- Machine Dimensions: 73"L x 49"W x 67"H
- Warranty: 1 year
- Part Number: Int-20
Specifications
- Touch screen automatically adjusts side seal, inverting head and infeed conveyor.
- Option 3' or 6' flighted or belted infeed conveyors.
- Front load film cradle with adjustable pin-perf wheels.
- No mantaince side seal, seals virtually all films.
