Large sheet materials are frequently divided into more manageable rectangle pieces using panel saws as the first size step. They consist of a circular saw, a strong framework for supporting the material, and a track for the saw to move along. In contrast to a table saw, which cuts while the workpiece is being moved past the rotating blade, a panel saw employs a circular saw to cut from across material as it is fixed in place.
The H4 panel saw, which has a 10′ frame and a 50′′ maximum crosscut with an endless rip cut, is a favorite tool for cabinet and furniture manufacturers. The only thing that sets this model apart from our H5 and H6 models are that the latter two has maximum crosscuts of 64" and 74". The Milwaukee Motor is the same in all three H machines.

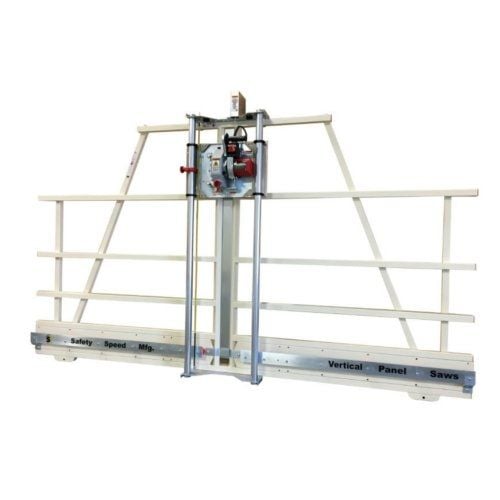

This Safety Speed H4 is a full-sized, budget-friendly vertical panel saw that can crosscut materials with a width of up to 50". The type H4 saw can cut a variety of panel materials up to 1-3/4" thick with an accuracy of 1/32". Applications for our Safety Speed H4 Full-Sized 50" Vertical Panel Saw include all types of panel processing.
Because they were designed with safety in mind, vertical panel saws are built with various safety features that reduce the risk of operator error. One of the easiest and safest activities that can be carried out with a vertical panel saw or wall saw is cutting panels of MDF, sheet wood, or other material. The machine's vertical tilt allows it to handle larger sheets of material.
Product Details
A 10' frame made of welded steel
Zinc-coated 1-3/4" steel guide tubes
It can cut every day for up to one to three hours
A 15 amp, 3 1/4 hp, production duty saw motor is included
4 Nylatron roller bearings systems
Horizontal and vertical rulers that can be adjusted quickly
Thin material pressure protection
Rollers made of plastic are injection-molded
Counterbalance system with a spring-loaded action
A built-in 1-½" dust collection hat
Extended Warranty
TUV certified to UL/CSA standards
Item Specifications
Max. Crosscut: 50"/1270mm
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1 3/4"/45mm
Cut Accuracy, Straight and Square: 1/32"/.8mm
Saw Blade Diameter: 8"/210mm
Motor: 15 amp, 120V, 220V
Frame Length: 120"/3050mm
Weight: 244 lbs
Dimensions: 120 × 11 × 70 in
Demonstration Video
Safety Speed H-Series Vertical Panel Saws Demo
Transcript:
The popular H models are available in three vertical sizes 50, 64, and 74 inches, depending on your cutting capacity requirements. Each model features a three and a quarter horsepower Milwaukee motor with an ergonomic handle and switch for easy operation and the ability to change from vertical to horizontal cutting in seconds. Adjustable measuring indicators make precision cuts a snap, also included is a thin material pressure guard combined with the proper saw blade. It improves cut performance when cutting thin classics and laminates. A heavy-duty counterbalance neutralizes the weight of the ... Read More
The popular H models are available in three vertical sizes 50, 64, and 74 inches, depending on your cutting capacity requirements. Each model features a three and a quarter horsepower Milwaukee motor with an ergonomic handle and switch for easy operation and the ability to change from vertical to horizontal cutting in seconds. Adjustable measuring indicators make precision cuts a snap, also included is a thin material pressure guard combined with the proper saw blade. It improves cut performance when cutting thin classics and laminates. A heavy-duty counterbalance neutralizes the weight of the saw during vertical cutting, the holder conveniently keeps the cord out of the operator's way, this process is further improved with patented graphite nylon rolling bearings that promote smooth movement of the saw carriage. No lubrication is required and the inherent design of these bearings is impervious to sawdust buildup. The frame is also designed with material rollers spaced to eliminate sawdust buildup a removable upper blade guard with dust port allows standard 8-inch blades with a 5/8 inch arbor to be changed quickly. Twin spring-loaded indexing pins assure positive locking of the power unit in the desired position. With three different cross cutting capacities, a cutting accuracy within 1/32 of an inch, and the ability to cut unlimited lengths on the 10-foot welded frames. The H models are the space-saving profit-making solution for many companies. Don't forget to customize your machine with our full range of accessories and accessory packages to maximize the productivity and versatility of your panel saw.
