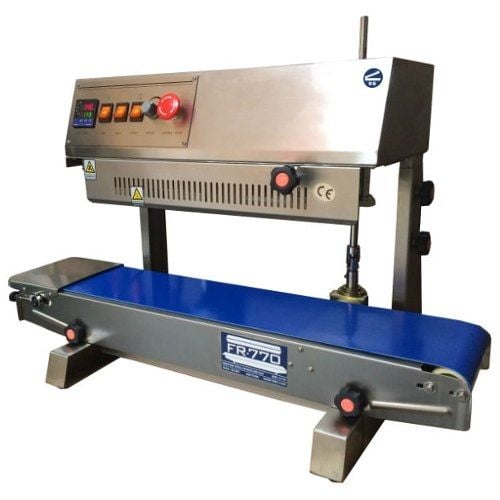

SealerSales FR-770II Vertical Continuous Band Sealer (Left Feed)
1035.79
NewCondition
InStock
SealerSales FR-770II Vertical Continuous Band Sealer (Left Feed)
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
Product Description
This SealerSales FR-770II Vertical Continuous Left Feed Band Sealer is suitable for sealing any thermoplastic materials and bags. This sealer can seal 20-30 pcs of 6" wide poly bags in one minute. Optional embossing wheel allows operator to include a message on the seal line of the bag. Can be used in a variety of fields such as the food, medical, and cosmetic industries.
Product Details
- Vertical Model - best for filling liquids and stand up pouches.
- Durable stainless steel.
- Easy to operate - minimal operator training.
- Seals any thermoplastic material including PE, PP, and laminates.
- Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality.
- Fully adjustable conveyor.
- Adjustable conveyor height (distance from sealing center to conveyor) - 5.9"-10.6".
- Motorized rubber conveyor for speed control.
- Knurled pressure rolls with variable pressure adjustment.
- Embossing attachment allows for printing on seal line w/o ink.
- One pair each of heating and cooling blocks.
- Sealing method - constant / direct heat.
- Unit feeds left to right.
- Equipped with an emergency stop.
- Spare parts include: PC Board, PTFE belt, wheel belt, tools, and type set.
- Minimum and maximum bag heights when the bag is filled: Min: 7.8" / Max: 12.0".
- Shipping: via freight only.
Item Specifications
- Power: 110V/60Hz
- Motor Power: 50W
- Sealing Speed: 0-472 Inches/Minute
- Seal Width: 8mm
- Temperature Range: 0-300°C
- Conveyor Size: 38" x 7"
- Single Conveyor Load: 2.2 lbs.
- Bag Size (Filled) - Vertical Unit: Minimum - 7.8" / Maximum - 12"
- Character Size: 3 x 4 x 9mm / 18PT
- Optional Embossing: 1 Line Embossing (2 Lines Available) 3 Sections w/ 15 Character/Line
- Dimensions: 33" x 17" x 13" (Horizontal) / 33" x 17" x 22" (Vertical)
Demonstration Video
FR-77011 - Vertical Stainless Steel Band Sealer Features
Transcript:
FR-770II- Vertical Stainless Steel Band Sealer. Suitable for sealing all types of plastic materials and bags. Features. Vertical configuration-ideal for sealing stand up pouches or liquid/grains. Durable stainless steel. Easy to operate. Unit feeds left to right. Fully adjustable conveyor and conveyor height. Embossing attachment allows. Turn on the power, heat, and fan. Set the desired temperature. Adjust speed of conveyor. Place the bag through the sealing guide and voila!
