SealerSales FRM-1120C Free-Standing Horizontal Dry Ink Coding Continuous Band Sealer
3192.89
NewCondition
InStock

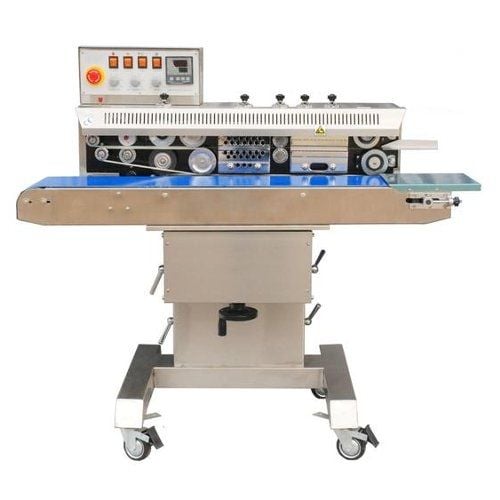

SealerSales FRM-1120C Free-Standing Horizontal Dry Ink Coding Continuous Band Sealer
SWIPE FOR MORE IMAGES
- 0
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
Product Description
This SealerSales FRM-1120C Free-Standing Horizontal Dry Ink Coding Continuous Band Sealer is designed to quickly and efficiently seal any thermoplastic material including PE, PPE, stand up pouches, gusseted bags, and moisture barrier bags. It has a 8mm seal width and equipped with a hot ink coding imprinter to print numbers or letters on the seal line. Plus, it has a tilting seal head which allows the machine to tilt up to 30 degrees. This SealerSales FRM-1120C Band sealer can be used in a wide array of fields such as food, medical, and cosmetics industries.
Product Details
- Durable stainless steel construction.
- Easy to operate - minimal operator training.
- Fast warm up time.
- Ideal for medium duty applications.
- Tilting seal head which allows the machine to tilt up to 30 degrees.
- Suitable for any product including liquids.
- Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality.
- Motorized rubber conveyor for speed control.
- Knurled pressure wheels with variable pressure adjustment.
- Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks.
- Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted).
- Dry ink coding allows for printing at the seal line.
- Unit feeds from Right to Left.
- Unit ships via freight only. Call for freight rates.
- Spare Parts Kit Includes: PC Board, PTFE Belt, Wheel Belt, Carbon Brush, and Typeset.
Item Specifications
- Power: 110V/60Hz
- Motor Power: 100W
- Sealing Speed: 0-394 Inches/Minute
- Seal Width: 8mm
- Temperature Range: 0-300°C
- Sealing Power: 300 x 2
- Conveyor Size: 43" x 8"
- Single Conveyor Load: 5.5 lbs.
- Max Conveyor Load: 16.5 lbs.
- Character Size (Two Types Available): R-Type: 18PT - 2 Lines; Option: 10.5PT - 3 Lines
- Printing Heating Power: 40 x 2
- Printing Options: 20 Character/Line
- Dimensions: 43" x 24" x 41"
Demonstration Video
FRM 1120C - Free Standing Stainless Steel Band Sealer Features
Transcript:
FRM-1120C- Free-Standing Stainless Steel Band Sealer suitable for sealing all types of thermoplastic materials. Features: Free standing unit equipped with caster. Durable stainless-steel construction. Tilting seal head allowing machine to tilt up to 30 degrees. Fully adjustable conveyor. Dry ink coding for printing on the seal line. Seal and print at the same time. FRM-1120C is able to print up to wo lines with 18PT font. Additional feature now available! 3-line printing with 10.5PT. Equipped with large heating and cooling blocks for better sealing quality. Adjustable conveyor belt height rel ...
Read More
FRM-1120C- Free-Standing Stainless Steel Band Sealer suitable for sealing all types of thermoplastic materials. Features: Free standing unit equipped with caster. Durable stainless-steel construction. Tilting seal head allowing machine to tilt up to 30 degrees. Fully adjustable conveyor. Dry ink coding for printing on the seal line. Seal and print at the same time. FRM-1120C is able to print up to wo lines with 18PT font. Additional feature now available! 3-line printing with 10.5PT. Equipped with large heating and cooling blocks for better sealing quality. Adjustable conveyor belt height relative to seal bars. Tilting head allows machine to tilt up to 30 degrees for sealing liquids.
