Bag Size (Filled) - Vertical Unit: Minimum - 7 7.8" / Maximum - 12"
ProductDescription

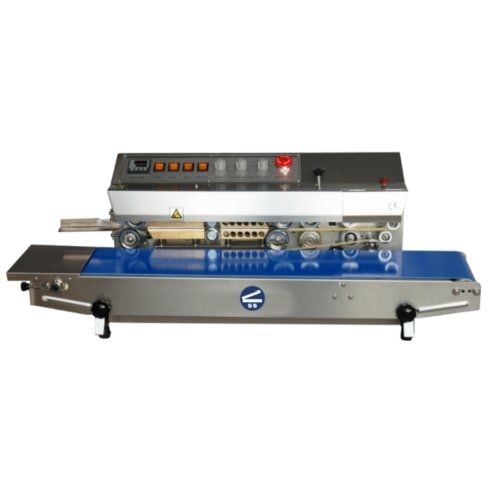

This SealerSales HL-M810I Horizontal Dry Ink Coding Continuous Band Sealer is similar to CBS-880 except the feeding is on the left side and this unit is also equipped with a hot ink coding imprinter to print numbers or letters on the seal line. It is suitable for sealing any thermoplastic materials and bags. This sealer can seal 20-30 pcs of 6" wide poly bags in one minute. Can be used in a variety of fields such as the food, medical, and cosmetic industries.
Product Details
Durable stainless steel construction.
Easy to operate - minimal operator training.
Fast warm up time.
Solid state temperature controller to maintain seal bars at proper temperature for consistent seal quality.
Fully adjustable conveyor (the conveyor height and depth in relation to seal bars can be adjusted).
Motorized rubber conveyor for speed control.
Knurled pressure rolls with variable pressure adjustment.
Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks.
Dry ink coding allows for printing on the seal line.
Unit feeds Left to Right.
Included with the band sealer is a manufacturer’s kit which includes:
Typeset Box – 18PT Font
5 –Number 0s
6 –Number 1s
6 –Number 2s
4 –Number 3s
3 –Number 4-9s
1 –EXP, MFD
2 –Silicone Pins (Part #BS-59)
1 –Tweezer
1 –Allen Wrench
Spare Kit includes: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, tweezers, and type set.
Options:
Stainless steel stand for horizontal models.
Dry ink coding – Font size - 10.5PT.
Shipping: via freight only.
Item Specifications
Power: 110V/60Hz
Motor Power: 50W
Sealing Speed: 0-472 Inches/Minute
Seal Width: 8mm
Sealing Power: 300 x 2
Temperature Range: 0-300°C
Conveyor Size: 38" x 6"
Single Conveyor Load: 2.2 lbs.
Max Conveyor Load: 6.7 lbs.
Bag Size (Filled) - Vertical Unit: Minimum - 7 7.8" / Maximum - 12"
Character Size: 18PT (3 x 5 x 7 mm) - 2 Lines 10.5PT (2 x 3 x 7 mm) - 3 Lines - Optional 20 Character/Line
Printing Heating Power: 40 x 2
Dimensions: 37" x 16" x 14" (Horizontal) / 37" x 16" x 26" (Vertical)
Demonstration Video

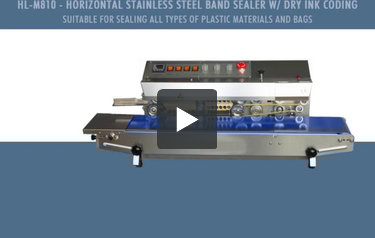

HL-M810 - Horizontal Stainless Steel Band Sealer With Dry Ink Coding
Transcript :
HL-M810- HORIZONTAL STAINLESS STEEL BAND SEALER W/ DRY INK CODING. Suitable for sealing all types of plastic materials and bags. Features: fast warm up time, durable stainless steel, easy to operate, unit feeds left to right, fully adjustable conveyor and conveyor height, dry ink coding allows printing information on the seal line. Turn on the start, seal, fan, and print and adjust settings. Allow 5-10 minutes for the sealer to warm up. Place bag to be sealed on the guide and voila! HL-M810 is the fastest way to seal and print your bag in one easy step. You can easily adjust the speed of the c ...
HL-M810- HORIZONTAL STAINLESS STEEL BAND SEALER W/ DRY INK CODING. Suitable for sealing all types of plastic materials and bags. Features: fast warm up time, durable stainless steel, easy to operate, unit feeds left to right, fully adjustable conveyor and conveyor height, dry ink coding allows printing information on the seal line. Turn on the start, seal, fan, and print and adjust settings. Allow 5-10 minutes for the sealer to warm up. Place bag to be sealed on the guide and voila! HL-M810 is the fastest way to seal and print your bag in one easy step. You can easily adjust the speed of the conveyor for faster sealing. HL-M810 is able to print up to two lines with 18PT font. Additional feature now available! 3 line printing with 10.5PT.
