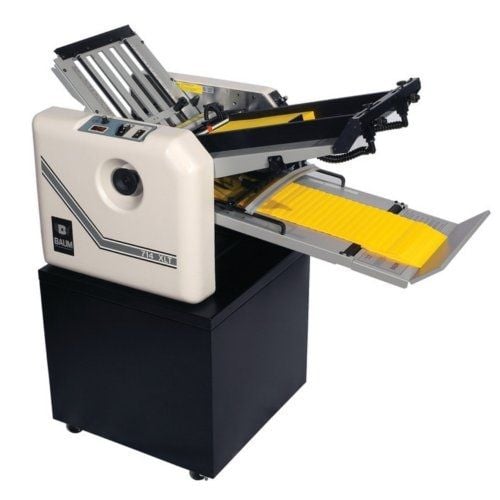

Baum 714XLT Ultrafold Air Feed Tabletop Paper Folder with Steel & Urethane Rollers
Flexible Financing for Businesses
Qualifying businesses can get the equipment and supplies they need with Pay Over Time or Enterprise Net 30 payment options.
Easy-Apply at Checkout
Just add to cart & continue to checkout
- Type Folder: Air feed, bottom feed
- Maximum Sheet Size parallel: 14" x 20"
- Maximum Size Fold – #1 or #2 plate: 13.5"
- Feeder Pile Height: 2"
ProductDescription
The Baum 714XLT Ultrafold Air Feed Tabletop Paper Folder with Steel & Urethane Rollers is ready to go to work for you anytime and anyplace you need it. It can easily handle coated stocks as well as highspeed copier and laser printed stocks. This paper folder has a speed of up to 35,000 sheets per hour (letter or A4 size paper), and can accomodate sheets up to 14 inch wide x 20 inch long . Even though the 714XLT is not an automated folder, the set-up is very simple. You do not have to be experience in operating a folder to run it. This Baum 714XLT Ultrafold Air Feed Tabletop Paper Folder with Steel & Urethane Rollers is backed by a 3-year Manufacturer's Warranty on parts.
The Baum 714 XLT is available in two models. The urethane roller unit is designed for stock printed from a variety of different output devises including digital. The combo roller system has both steel and urethane rollers and is recommended for offset printed materials only.
Product Details
- Non-marking, continuous feeding with bottom feed system.
- Toner resistant and static dissipative folding rollers.
- Sealed ball bearings, no lubrication needed.
- Removable cartridge design slitter shafts.
- Gear-driven folding rollers, no slippage during folding.
- Automatic roller tensioning.
- Quiet pump that handles both the vacuum and the air blow.
- UL approved.
- Rack and pinion gear side guides on feed table to maintain squareness.
- Second pass folding capability with exclusive air control system.
- Total counter.
- Loads and unloads from the same end of the machine.
Item Specifications
- Type Folder: Air feed, bottom feed
- Production Speed (sheets/hour): 35,000 Sheets (Letter Size or A4 Size)
- Maximum Sheet Size parallel: 14" x 20"
- Minimum Sheet Size: 3" x 5"
- Maximum Size Fold - #1 or #2 plate: 13.5"
- Minimum Size Fold: 2.25"
- Maximum Paper Weight: 65 lb cover
- Feeder Pile Height: 2"
- Fold Roll Diameter: 1.5"
- Fold Roll Material: Combination Polyurethane/Steel
- Parallel Fold Roll Speed: Infinitely variable
- Operating Voltage: 110 VAC - 60 Hz
- Power Consumption: 1500 watts
- Amperage (pump): 13.6 amp
- Electrical Requirements: Dedicated 20-amp Circuit
- Dimensions & Weights:
- Machine Dimensions: 27"H x 49"L x 24.5"W
- Weight (Net): 310 lbs
- Weight Parallel (Crated): 345 lbs
- Crate Size: 29" H x 29" W x 67" L
- Manufacturer's Warranty: 3 Years Manufacturer's Warranty on Parts
Demonstration Video
