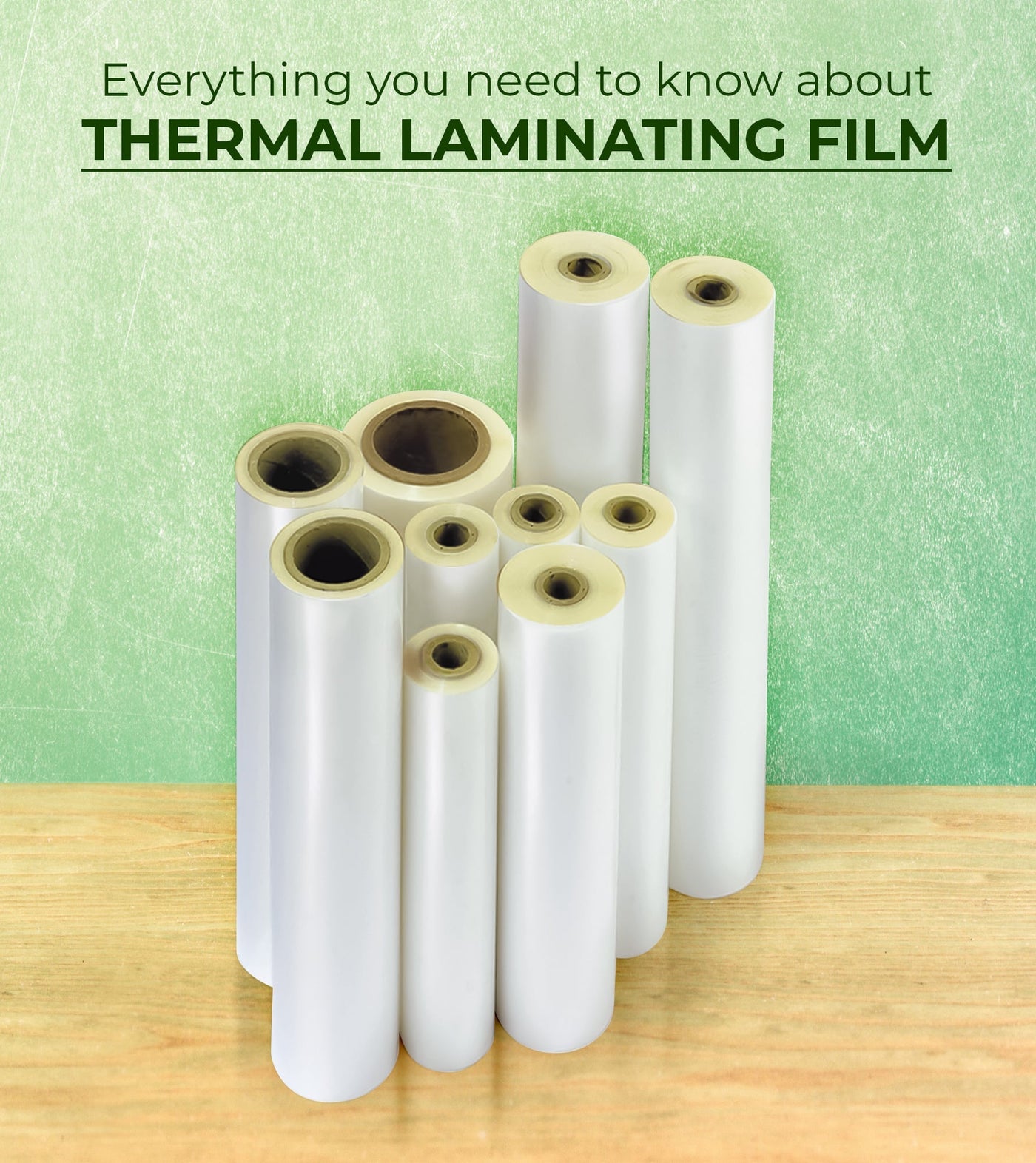

Everything You Need to Know About Thermal Laminating Film

Learn what thermal laminating film is, how it works, and how to choose the right type, mil thickness, core size and finish for your laminator, plus how it compares with cold laminating film.

Mallory Morsa By Customer CareMay 18, 202313 min read
Everything You Need to Know About Thermal Laminating Film

Thermal laminating film is laminating film on a roll with a polyester base and a heat activated adhesive. In thermal lamination, a roll laminator heats the film, the adhesive melts and bonds to both sides of the document, and the result is a clear, durable, wipeable finish. To choose the right film, match the core size, roll width, mil thickness, melt type and finish to your laminator and to what you are laminating.

What Is Thermal Lamination and How Does the Film Work?

Thermal lamination is the process of sealing a document between two layers of film using heat. Thermal laminating film, also called thermal lamination film, hot laminating film or heat laminating film, is sold on a thermal laminating roll for roll laminators. Each roll combines a clear polyester base film with a layer of heat activated adhesive. The film is sold as matched top and bottom rolls, so the laminator can cover both sides of a document in one pass.

Thermal laminating film guide: how it works, key benefits, types of film and thickness

As the document and film travel through the laminator, heated rollers melt the adhesive, which then bonds to both sides of the document. The film cools and sets as it leaves the machine, sealing the paper in a protective layer that resists wear and moisture. Because thermal film relies on heat, the laminator's temperature and speed must be set correctly for the film you are using.

The balance of base film to adhesive, and the temperature the adhesive needs, varies from film to film. For example, MyBinding's 3 mil premium matte film on a 3 inch core is made of a 0.6 mil polyester base with 2.4 mil of adhesive and runs at 220 to 250°F, while its 3 mil standard melt film on a 1 inch core lists an operating temperature of 290°F. Always check the temperature on the film you buy rather than relying on a general setting.

Benefits of Thermal Laminating Film

  • Durability: the film protects documents from tearing, creasing and wear, so pieces that are handled every day last much longer.
  • Moisture resistance: laminated items can be wiped clean and stand up to spills, which matters for menus, signs and classroom materials.
  • Better looking prints: gloss film makes colors pop, while matte film cuts glare so text is easy to read.
  • UV protection: UV protected film helps reduce fading on posters and signs displayed in sunlight.
  • Lower cost per piece: for large volumes and big items, roll film costs less per square foot than pouches or cold film.

Thermal film is used for classroom posters, bulletin board pieces and flash cards, restaurant menus, store and safety signs, maps, certificates, ID badges and presentation covers. Anything printed on paper that can handle heat and needs to last is a good candidate.

Types of Thermal Laminating Film

MyBinding carries more than 180 laminating film rolls from brands including GBC, GBC Octiva, Drytac, SEAL, USI and Revo. Most of them fall into the thermal roll laminating film types below.

Standard Thermal Film

Standard melt film is the everyday film for paper documents, signs and classroom materials. It is polyester based and bonds at a higher temperature than low melt film, which makes it a good fit for porous papers. NAP film, such as GBC NAP-LAM I 3 mil film, is a polyester based thermal film with a standard polyethylene adhesive layer. Standard film comes in the widest range of thicknesses, widths and core sizes, so it is usually the first choice when you are not sure which film you need.

Low Melt Film

Low melt laminating film is thermal roll film designed to bond at lower temperatures than standard thermal film. Lower heat helps reduce silvering and distortion, which makes low melt film a better choice for digital prints, coated stock and other heat sensitive items. Some wide format films, such as SEAL 3 mil luster film, have an activation temperature as low as 185 to 195°F.

School Film

School laminating film is designed for the 1 inch core laminators common in classrooms. It comes in 1.5, 3, 5 and 10 mil thicknesses and widths from 9 to 27 inches, and gloss is the most common finish for schools. Choosing the right school laminating supplies comes down to how each classroom item will be used, from wall posters to flash cards students handle every day.

Wide Format Film

Wide format film is made for commercial and print shop laminators that handle posters, banners, maps and large signs. It comes on 1, 2.25 and 3 inch cores in widths from about 25 inches up to 61 inches. Premium wide format films include options with UV inhibitors for prints that will be displayed for a long time, and some use a lower activation temperature so they can be used on digital prints. Because wide format laminators vary a lot, check the core size and maximum width of your machine before ordering.

UV Protected and Specialty Finishes

Beyond gloss and matte, thermal film comes in luster, satin and soft touch finishes. Luster and satin give a softer sheen than gloss without looking flat, and soft touch film adds a smooth, velvety feel that suits book covers, presentation covers and premium marketing pieces. UV protected film helps reduce fading on posters and signs displayed in sunlight or under strong lights. Many specialty finishes are sold on 2.25 or 3 inch cores, so check that your laminator accepts them.

Laminating Film Thickness Explained

Laminating film thickness is measured in mils. A mil is one thousandth of an inch, not a millimeter. Thermal film commonly comes in 1.5, 1.7, 3, 5, 7 and 10 mil, and the thickness controls how flexible or rigid the finished piece feels.

  • 1.5 mil: thin and flexible. Schools often use 1.5 mil gloss film on a 25 inch, 1 inch core roll for posters and bulletin boards.
  • 3 mil: a little sturdier and works well for everyday school and office use.
  • 5 mil: stiffer, for menus, signs and items that get handled often.
  • 7 and 10 mil: rigid, card like protection for ID badges and items that need to stand up to heavy use.

Always check your laminator's rated film thickness before you order. Many school and light duty laminators are only rated for film up to 3 mil, and thicker film can give poor results or strain the machine.

Core Sizes, Widths and Roll Lengths

Do not order laminating film by width alone, because the film has to physically fit your laminator. Check four things before you buy:

  • Core size: thermal film comes on 1 inch, 2.25 inch and 3 inch cores. Most school and office laminators use 1 or 2.25 inch cores, and wide format machines usually use 3 inch cores. If you are not sure, measure the inside diameter of the core on your current roll.
  • Width: most school and office laminators take film up to 25 or 27 inches wide, while commercial and wide format machines go much wider, up to about 62 inches.
  • Length: roll lengths range from 15 feet to 2,000 feet. Longer rolls mean fewer changes but need a machine and mandrel that can hold them.
  • Machine specific film: some laminators need their own film. For example, GBC EZLoad laminators need EZ Load film.

If you are still choosing a machine, check the core size, maximum film width and film thickness that each of MyBinding's roll laminators accepts before you order film for it.

Gloss vs Matte Laminating Film

Gloss film brightens colors and gives printed pieces a vivid, shiny look, which is why it is popular for posters, photos and classroom displays. Matte film reduces glare and fingerprints, which makes it easier to read under bright lights and a good choice for menus, signs, maps and anything you write on with dry erase markers. Luster and satin finishes sit between the two, and soft touch film adds a velvety feel to covers and premium pieces.

Thermal vs Cold Laminating Film

Thermal film uses heat to activate its adhesive. Cold film, also called pressure sensitive laminating film, bonds with adhesive and pressure instead of high heat. Each has its place:

  • Thermal film gives a clearer, more rigid finish and costs less per square foot. A hot laminator takes about 1 to 5 minutes to warm up.
  • Cold film is better for heat sensitive items such as photos, inkjet prints, vinyl graphics, thermal receipts and labels. It costs more per square foot and is slightly more flexible.
  • Never run cold film through a hot laminator.
  • If more than about 20 percent of your work is heat sensitive, it is worth adding a cold laminator.

How to Use Thermal Laminating Film

  1. Check that the film matches your laminator's core size, width, thickness and temperature range.
  2. Load the matched top and bottom rolls on the mandrels following your laminator's threading diagram, and check that the film runs flat without wrinkles.
  3. Turn the laminator on and let it reach temperature. Set the temperature and speed for the film's thickness and melt type.
  4. Run a test piece before your full job. Poor results usually come from the wrong temperature, speed, film tension, thickness or machine compatibility.
  5. Feed your documents in, leaving at least a 1/4 inch border of film around each item so the edges seal.
  6. Let the film cool, then trim the items apart, keeping the sealed border around each one.

Temperature and Speed Settings for Thermal Film

Temperature and speed work together. Heat melts the adhesive, and speed controls how long the film stays in contact with the heated rollers. Thicker film needs more heat, a slower speed or both, because there is more adhesive to melt. Standard melt film runs hotter than low melt film, so if you switch between the two, reset the temperature before you run a job.

Let the laminator fully warm up before feeding anything, since film run through a machine that has not reached temperature often comes out cloudy. Feed documents at a steady pace and keep them square to the rollers. If your machine has a cooling fan or cooling rollers, leave them on so the adhesive sets flat. When you finish, follow your laminator's manual for shutting down with film still loaded, so the film does not bond to the heated rollers.

Choosing Film for Common Projects

  • Classroom posters and bulletin boards: 1.5 or 3 mil gloss standard or school film on the core size your laminator uses.
  • Menus and signs that are handled every day: 5 mil film, often matte to cut glare.
  • ID badges and cards: 7 or 10 mil film on a laminator rated for that thickness.
  • Digital prints and photos: low melt film to reduce silvering, or cold pressure sensitive film for the most heat sensitive prints.
  • Signs displayed in sunlight: UV protected film.
  • Large format posters and banners: wide format film on a commercial roll laminator.

Common Thermal Laminating Problems and Fixes

  • Wrinkles: check the film tension and make sure the rolls are loaded evenly.
  • Bubbles or cloudy film: the temperature is too low or the documents are feeding too fast. Raise the heat or slow down.
  • Edge peeling: the temperature is not set correctly for the film's mil thickness, or the border around the item is too narrow.
  • Silvering or distortion on prints: try low melt film, which bonds at a lower temperature.
  • Curling: the top and bottom film tension is uneven, or the heat is too high for the film. Even out the tension and lower the temperature slightly.
  • The roll will not mount: the core size does not match the laminator.

Change one setting at a time and run another test piece, so you can see which change fixed the problem.

Roll Laminating Film vs Laminating Pouches

Roll film and pouches use the same kind of thermal adhesive, but they suit different jobs. Pouches are two sheets of film sealed on one edge, typically 3 to 10 mil, and they are easy to use for a few letter size items in a pouch laminator. Roll film is the better value when you laminate in volume, need widths larger than letter size, or want to run many small items in one pass and trim them apart. The differences between laminating sheets and pouches also matter for cost, since pouches cost more per item but need no trimming.

How to Store Laminating Film

Keep unused rolls in their original packaging in a cool, dry place away from direct sunlight and heat sources, since heat and humidity can affect the adhesive. Store rolls so the film surface is not pressed against anything that could dent or scratch it, and keep partly used rolls covered so dust does not settle on the adhesive side. Dust trapped under the film shows up as specks in the finished piece.

Choosing the Right Thermal Laminating Film

Start with your laminator. Its core size, maximum width, rated thickness and temperature range narrow the choices quickly. Then pick the thickness for how the finished piece will be used, the melt type for what you are laminating, and the finish for how it will be seen. Standard thermal film covers most paper documents, low melt film protects heat sensitive prints, and cold pressure sensitive film is the answer for anything that should not be heated at all. If you need help matching film to your machine, call MyBinding at 1-800-944-4573.

Frequently Asked Questions

What is a thermal laminating roll?

A thermal laminating roll is a long roll of heat activated lamination film wound on a cardboard core. Roll laminators use a matched pair, one roll on top and one below, and the core size must match the laminator's mandrels.

What is a thermal laminator?

A thermal laminator, or hot laminator, uses heated rollers to melt the adhesive on thermal film or laminating pouches. Roll laminators run thermal film from top and bottom rolls, while pouch laminators run sealed pouches one at a time.

Can you laminate thermal paper?

Thermal paper, such as receipts, is heat sensitive and can darken in a hot laminator. Use cold, pressure sensitive laminating film for thermal paper instead.

Can you use thermal laminating film without a laminator?

Not well. Thermal film needs controlled heat and pressure to activate its adhesive evenly, which a laminator provides. If you do not have a laminator, use self adhesive or pressure sensitive film, which bonds without heat.

Is thermal lamination waterproof?

Thermal lamination is water resistant. The sealed film lets you wipe items clean and protects them from spills, as long as you leave a sealed border around the edges. Cutting into the document through the film can let moisture in at the cut edge.
